Definiciones of tow truck
Tow trucks have lifting, towing, lifting and other function devices, used to clear the road barrier vehicles, professional vehicles.
Main purpose of towing truck
1.Vehicle Clearance in Highway Accidents. From the accident site to the parking lot.
2.Illegal parking dragging away. From the illegal parking point to the parking lot
3.Faulty vehicle consignment. The anchored vehicle was towed to the repair shop.
Our company wrecker products are: flat-type wrecker, lifting the joint-type wrecker, rotary winches wrecker three series. JAC mainly used chassis, liberation, Dongfeng, heavy truck, and other well-known manufacturers.

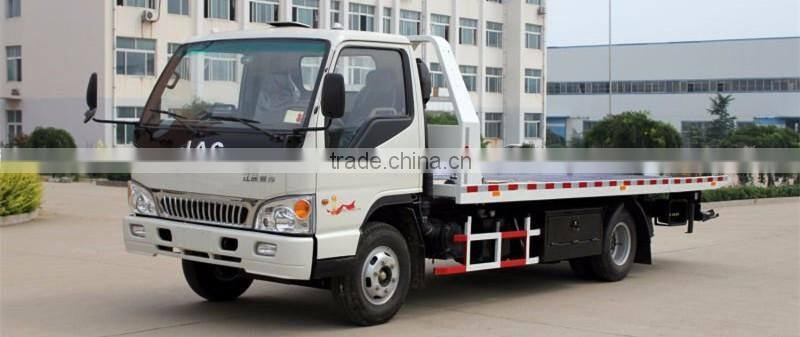

flat-type wrecker ↑
lifting the joint-type wrecker ↑

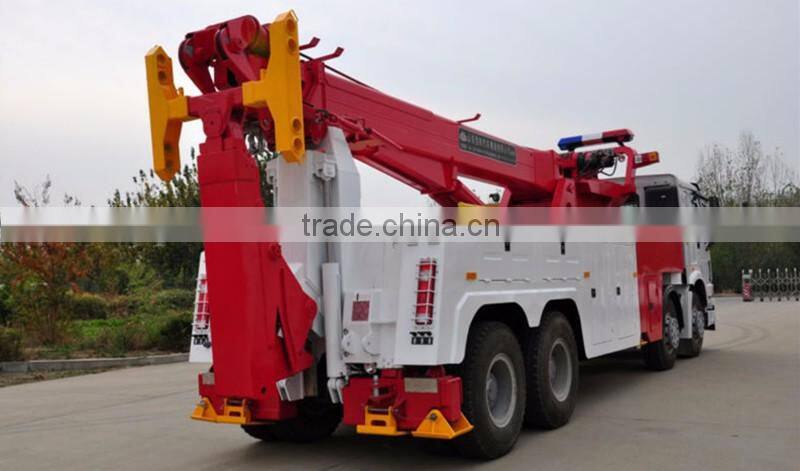

rotary winches wrecker ↑
Parameter
Type |
Wrecker Truck |
||||
Model |
TAG5312TQZZ06 |
Lift Arm |
Lifting weight(kg) |
20000 |
|
Length(mm) |
10350 |
Lifting height(mm) |
6060 |
||
Width(mm) |
2495 |
Lifting angle(°) |
30 |
||
Height(mm) |
3060 |
Rated pulling force of winch(KN) |
100 |
||
Total weight(kg) |
19170 |
Winch quantity |
2 |
||
|
Model |
WD615.93 |
Drag Arm |
Lifting weight(kg) |
20000 |
|
Engine
|
Rated lifting weight with full expansion |
4600 |
|||
Power(kw) |
213 |
Drag arm length(mm) |
3775 |
||
Cylinder number |
6 |
Expansion distance of drag arm |
2090 |
||
Rate speed(rpm) |
2200 |
Front overhang(mm) |
1500 |
||
Displacement(ml) |
9726 |
Rear overhang(mm) |
1675 |
||
Torque(N.m) |
1160 |
Wheelbase(mm) |
5825/1350 |
||
Tire model |
11.00R20,11.00-20/ 12.00-20,12.00R20 |
Track(F/R)(mm) |
2022/1830 |
||
Warning system |
Each side and rear with reflecting mark |
Axle number |
3 |
||

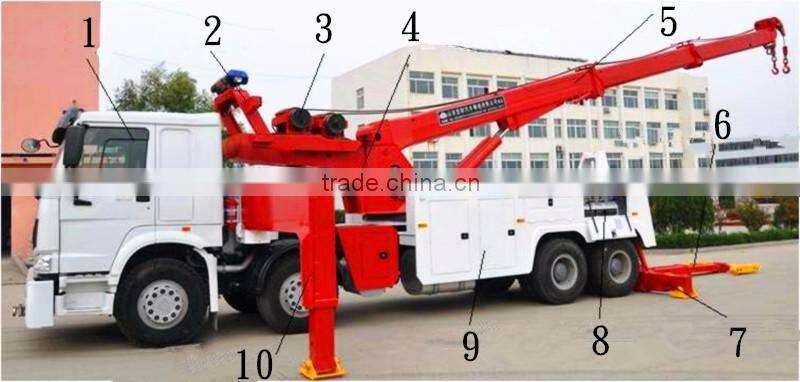

structure
1.Cab 2.Light frame
3.Winch 4.Base of hang arm
5.Hang arm 6.Tow arm and lifting accessories
7.Rear supporting leg 8.Hydraulic control system
9.Toolbox 10.Front supporting leg
Shandong Taikai Vehicle Manufacture Co., Ltd is located at High-tech Development Zone, Taian City.The company registered capital is 50 million RMB (About 8 million USD) the factory covers an area of 187,000m2, more than 410 employees (among 68 professionals & technical).
We are the officially authorized distributor of SINOTRUK in Tai'an city, and we have a long coopertaion with SINOTRUK,we produce concrete mixer and tank trailer for SINOTRUK.
Shandong Taikai Vehicle Manufacture Co., Ltd is located at High-tech Development Zone, Taian City.The company registered capital is 50 million RMB (About 8 million USD) the factory covers an area of 187,000m2, more than 410 employees (among 68 professionals & technical).
