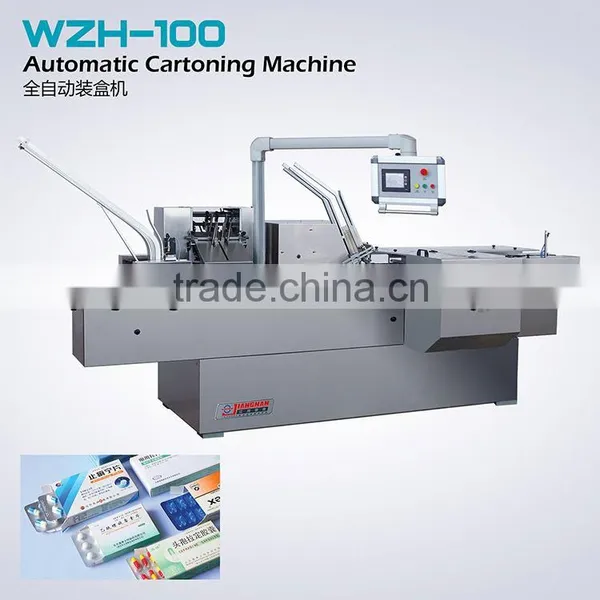

Various Use Automatic Corrugated Carton Box Making Machine,Automatic Cartoning Machine

Specifications

Cartoning Machine
1.Comply with GMP standard
2.OQ/IQ/PQ documents are available
3.CE certificate

Various Use Automatic Corrugated Carton Box Making Machine,Automatic Cartoning Machine



Application:

This equipment is a new model developed based on integrated domestic and foreign vanguard technology. It is a high technology product that incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister packing product ,adjust automatic feeding structure conveniently. Setup quality of blister on touch screen randomly. Online product feeding and detecting .leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.



Characteristics:

1. International famous brand of electrical components such as PLC, touch screen, inverter, etc.
2. Adopt human-machine operation system.
3. Automatic stop when machine is overload.
4. Automatic reject lacking of package product and leaflet.
5. Automatic error displaying, alarming and finished products counting.
6. Stable performance, easy operation.



Main Technical Parameters:

Model		ZH-100	ZH-180
Cartoning speed		30-100 Cartons/min	30-150 Cartons/min
Carton	Quality requirement	300-350g/m2
	Dimension range(L×W×H)	(70-180)×(35-85)×(14-50)mm
Leaflet	Quality requirement	60-70g/m2
	Unfolded leaflet range(L×W)	(80-250)×(90-170)mm
	Fold specification(L×W)	1-4 Fold
Compressed air	Pressure	0.6Mpa	0.6Mpa
	Air consumption	120-160L/min
Power supply		220V, 50Hz	380V, 50Hz
Main motor power		0.75kw	1.5Kw
Dimension(L×W×H)		3100×1100×1550mm	4300x1440x1600mm
Weight		about 1400kg	About 1500Kg
