Specifications
Cartoning Machine1.Comply with GMP standard
2.OQ/IQ/PQ documents are available
3.CE certificate

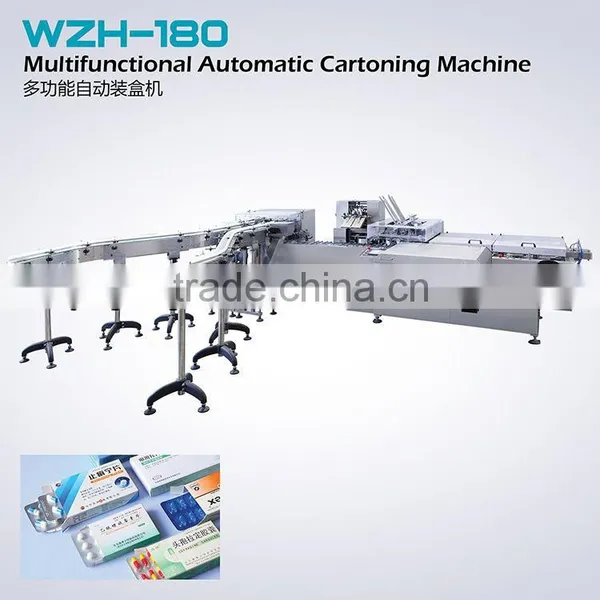

2014 New Model Automatic Carton Box Machine,Automatic Cartoning Machine
Application:
This equipment is a new model developed based on integrated domestic and foreign vanguard technology. It is a high technology product that incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
This machine is suitable for blister packing product ,adjust automatic feeding structure conveniently. Setup quality of blister on touch screen randomly. Online product feeding and detecting .leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.
Characteristics:
- International famous brand of electrical components such as PLC, touch screen, inverter, etc.
- Adopt human-machine operation system.
- Automatic stop when machine is overload.
- Automatic reject lacking of package product and leaflet.
- Automatic error displaying, alarming and finished products counting.
- Stable performance, easy operation.
Main Technical Parameters:
| Model | ZH-100 | ZH-180 | |
| Cartoning speed | 30-100 Cartons/min | 30-150 Cartons/min | |
| Carton | Quality requirement | 300-350g/m2 | |
| Dimension range(L×W×H) | (70-180)×(35-85)×(14-50)mm | ||
| Leaflet | Quality requirement | 60-70g/m2 | |
| Unfolded leaflet range(L×W) | (80-250)×(90-170)mm | ||
| Fold specification(L×W) | 1-4 Fold | ||
| Compressed air | Pressure | 0.6Mpa | 0.6Mpa |
| Air consumption | 120-160L/min | ||
| Power supply | 220V, 50Hz | 380V, 50Hz | |
| Main motor power | 0.75kw | 1.5Kw | |
| Dimension(L×W×H) | 3100×1100×1550mm | 4300x1440x1600mm | |
| Weight | about 1400kg | About 1500Kg | |
