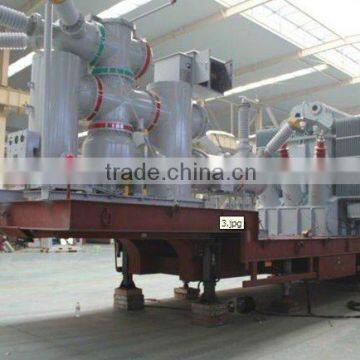

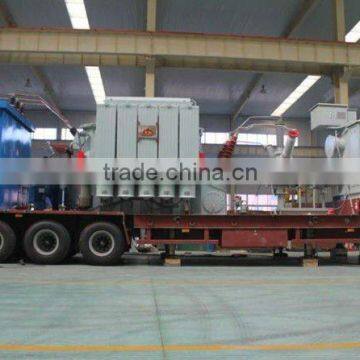

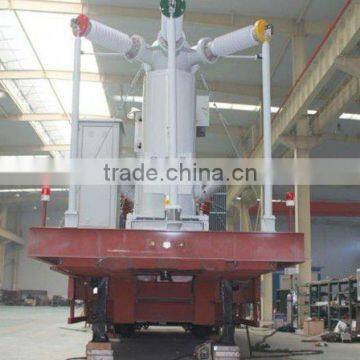

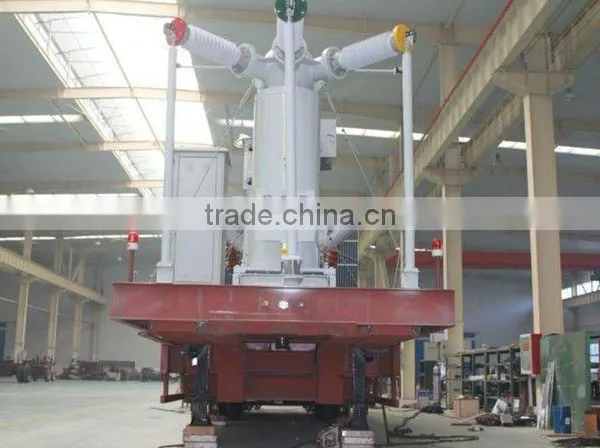

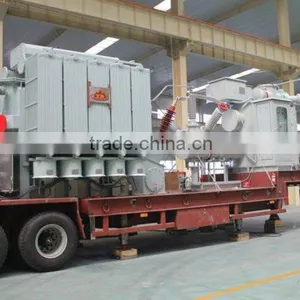

China Made Cheap TKZ9550TYB-110/35 Mobile Transformer Substation for Sale
Company information
Shandong Daiyang Vehicle Manufacture Co., Ltd is a professional manufacture of special vehicle located in taian city Shandong province near Qingdao port,specialize in concrete mixer truck,bulk cement tank trailer,low density bulk cement tank trailer,aluminum alloy fuel tank trailer,cooking oil tank trail,wrecker truck,off-highway tipper truck,dry mortar mixer truck.
Factory picture
Parameter
TKZ9320TYB
Vehicle designation | TKZ9320TYB |
Total weight(kg) | 31990 |
Departure angle(°) | 22 |
Distance between shafts(mm) | 7900+1320+1320 |
Rear shaft load(kg) | 23500 |
Wheel specification | 11.00-20 |
Outline dimension(length×width×height) | 12990×2500×3980 |
Curb weight(kg) | 31990 |
Rear overhang(mm) | 1450 |
Shaft No. | 3 |
Wheel No. | 12 |
Rear wheel distance(mm) | 1840 |
TKZ9500TYB
Vehicle designation | TKZ9500TYB |
Outline dimension(length×width×height) | 16800×3000×4475 |
Total weight(kg) | 49900 |
Curb weight(kg) | 49900 |
Departure angle(°) | 22 |
Rear overhang(mm) | 1450 |
Distance between shafts(mm) | 12100+1320+1320 |
Shaft No. | 3 |
Rear shaft load(kg) | 30000 |
Wheel No. | 12 |
Wheel specification | 11.00-20 |
Rear wheel distance(mm) | 2150 |
SFPZ11-40000/110/6.3
Designation | SFPZ11-40000/110/6.3 |
Rated capacity(kVA) | 40000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 10.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 110±8×1.25%/6.3 |
Off-load loss(kW) | 32.93 |
On-load loss(kW) | 147.9 |
Off-load current(%) | 0.7 |
SFPZ11-40000/110/10.5
Designation | SFPZ11-40000/110/10.5 |
Rated capacity(kVA) | 40000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 10.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 110±8×1.25%/10.5 |
Off-load loss(kW) | 32.93 |
On-load loss(kW) | 147.9 |
Off-load current(%) | 0.7 |
SFPZ11-40000/110/35
Designation | SFPZ11-40000/110/35 |
Rated capacity(kVA) | 40000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 10.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 110±8×1.25%/35 |
Off-load loss(kW) | 32.93 |
On-load loss(kW) | 147.9 |
Off-load current(%) | 0.7 |
SFPZ11-10000/110/10.5
Designation | SFPZ11-10000/110/10.5 |
Rated capacity(kVA) | 10000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 10.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 110±8×1.25%/10.5 |
Off-load loss(kW) | 11.78 |
On-load loss(kW) | 50.2 |
Off-load current(%) | 0.91 |
SFPZ11-10000/110/35
Designation | SFPZ11-10000/110/35 |
Rated capacity(kVA) | 10000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 10.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 110±8×1.25%/35 |
Off-load loss(kW) | 11.78 |
On-load loss(kW) | 50.2 |
Off-load current(%) | 0.91 |
SFPZ11-10000/35/10.5
Designation | SFPZ11-10000/35/10.5 |
Rated capacity(kVA) | 10000 |
Rated frequency(Hz) | 50 |
Phase No. | 3 |
Short circuit impedance(%) | 7.5 |
Vector group | YNd11 |
Cooling method | OFAF |
Voltage ratio(kV) | 35±3×2.5%/10.5 |
Off-load loss(kW) | 8.26 |
On-load loss(kW) | 45.05 |
Off-load current(%) | 0.55 |
