Sinotruk 6x4 Concrete Mixer Truck with different capacity/used concrete mixer

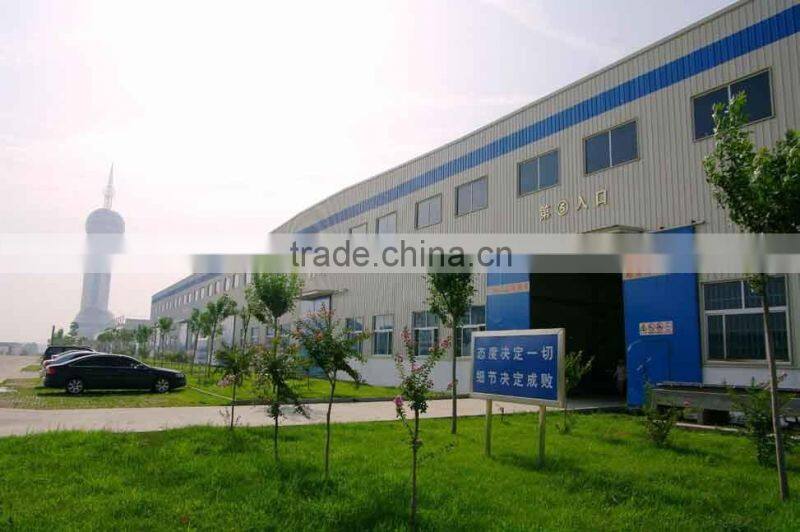

Company information
1. Concrete mixer truck (3--16CBM)
2.Dry mixed mortar tank truck(5-25CBM)
3. Water sprinkler truck(5-25CBM)
4. Oil/fuel tank truck (diesel, gasoline/petrol 5--25CBM)
5.Tanker trailer( diesel, gasoline/petrol 20--50CBM)
6.Bulk cement tanker trailer(25--125CBM)
7.Chemical liquid tanker trailer(20-50CBM)
8. Wrecker truck(3--50tons)
9.Van vehicle
Parameter
| Size(LxWxH) | 9125x2495x3790mm(Different according to different capacity) |
| Total weight | 25000kg |
| Curb weight | 13870kg |
| Loaded weight | 22500kg |
| Front overhang Rear overhang |
1500/2560mm |
| Wheelbase | 3625+1350mm |
| Apporach angle Departure angle |
16/26° |
| Tire | 12.00-20 |
| Input rate (m3/min) | ≥3 |
| Filling rate | 65% |
| Output rate (m3/min) | ≥1.5 |
| Residual rate | <0.4% |
| Configuration | |
| Pump | Sauer T90P075 |
| Reversalvalve | ZS3-L20F-W/0-1(china famous brand) |
| Motor | Sauer T90P075 |
| Radiator | FLJ-8(china famous brand) |

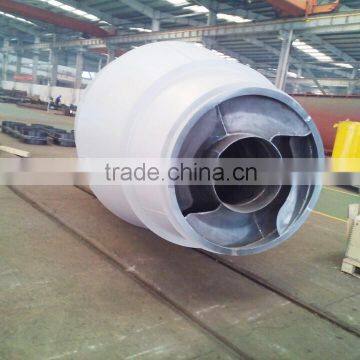

| Drum body | T520JJ |
| Drum thickness | 5mm |
| Blade material | T520JJ |
| Blade thickness | 4mm |
| Reducer | Bonfiglioli 577 |
| Truck chassis | |
| Chassis model | HOWO ZZ1257N3641W |
| Transmission | 6*4 |
| Max speed | 102km/h |
| Cab | HW76, left hand drive, air-conditioner, one sleeper |
| Engine | SINOTRUK WD615.69, 336hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L |
| Gear Box | HW15710, No. of speeds: 10 forward & 1 reverse |
| Traversing Mechanism | German ZF8098, turning system pressure 18MPa |
| Clutch | GF420J, Single-plate dry clutch |
| Rear Axle | ST16 tandem axle, rated load 2x13ton, ratio 5.73 |
| Wheels and tires | Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel |
| Brakes | Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake |
| ABS | XH-KQ4S4M-E01 |

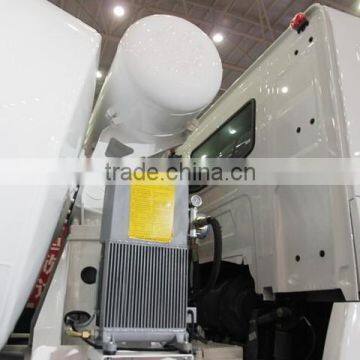

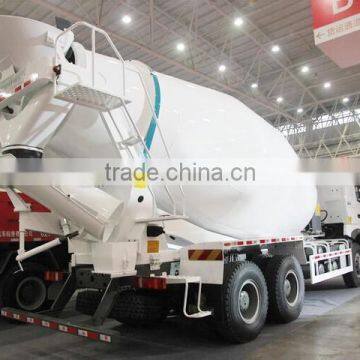

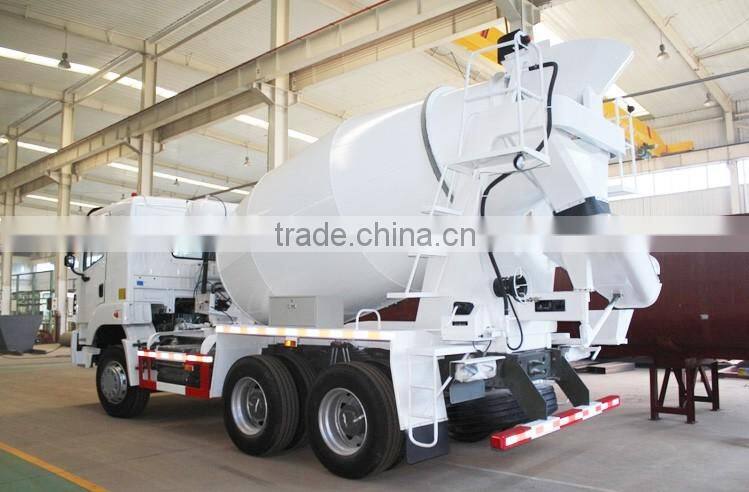

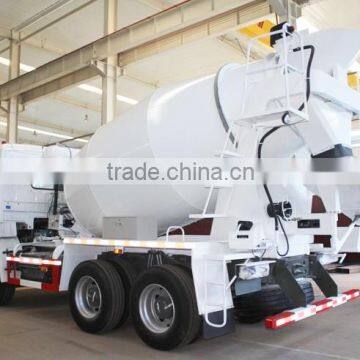

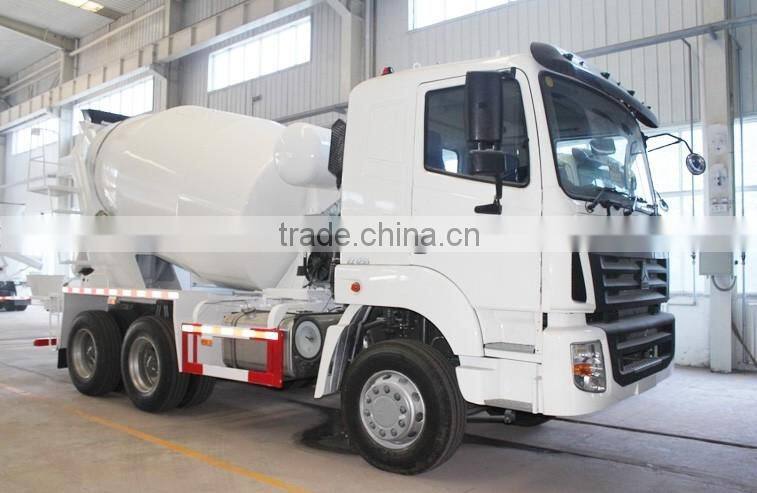

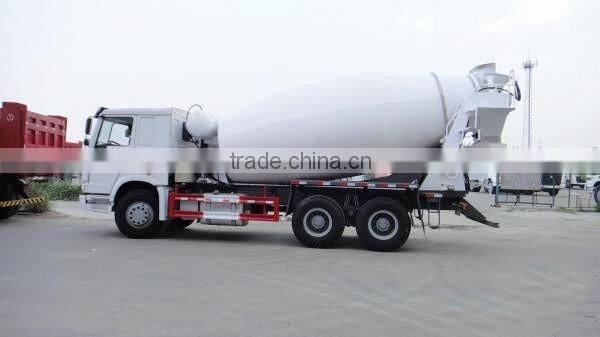

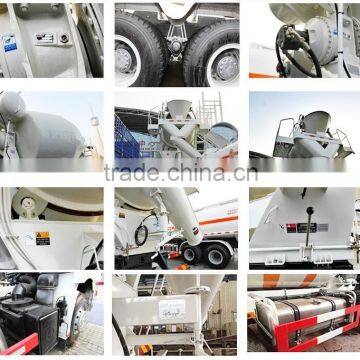

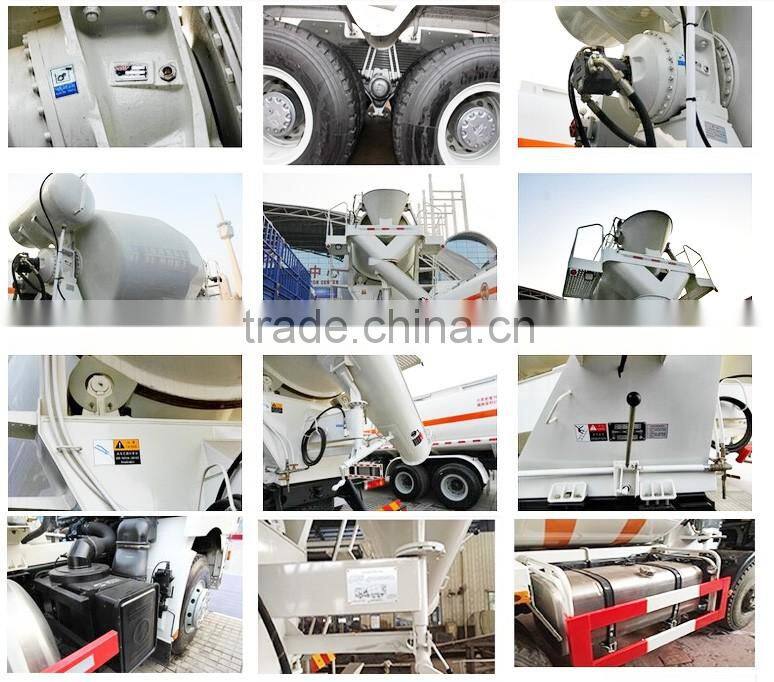

Detailed Images

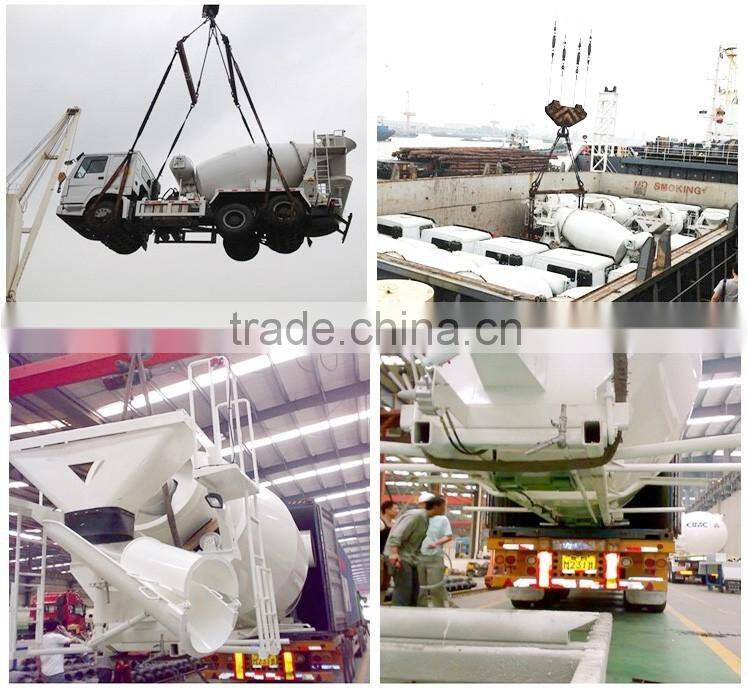

Packaging and shipping
Packing: Nude, the truck is always painted with wax for anti-corrosion.
Shipping: The truck is usually shipped in RORO ship and bulk ship. RORO Ship: The truck is driven into the ship directly. Some time, the truck will be shipped in container as per the client's requirements.
We will choose the best and the most safe way according to your requirement.
word:1suzu 3 cubic meters cement mixer truck
Service

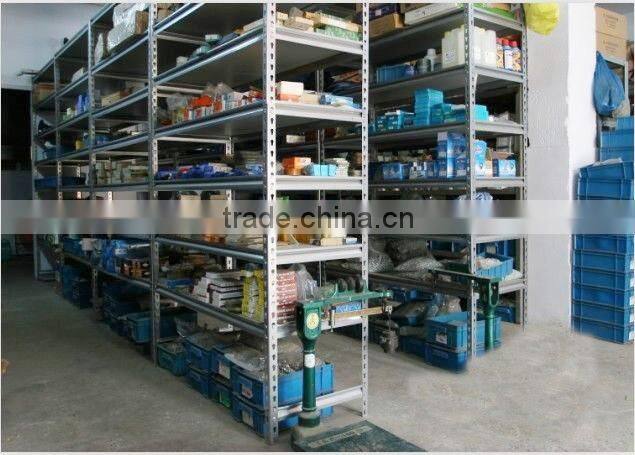

We have independent spare parts department and oversea after-sale engineering team to provide after service.All the spare parts can be arranged in 7 days and can solve problems effective.We put our customer's interests in first place.
Other optional truck chassis brand
FAQ
1.what is the concrete mixer truck used for?
The concrete mixer truck is used for transporting concrete. There is a mixer drum on the truck and keeping on mixing during transporting in order to avoid solidification of concrete.
2.why choose us,why choose SINOTRUK?
We are the officially authorized distributor of SINOTRUK in Tai'an city, and we have a long coopertaion with SINOTRUK,we produce concrete mixer and tank trailer for SINOTRUK so all the machine we export can be provided overservice by SINOTRUK.If you buy trucks from us, you will not worry about the warranty and maintenance. We will be your strongest support.
