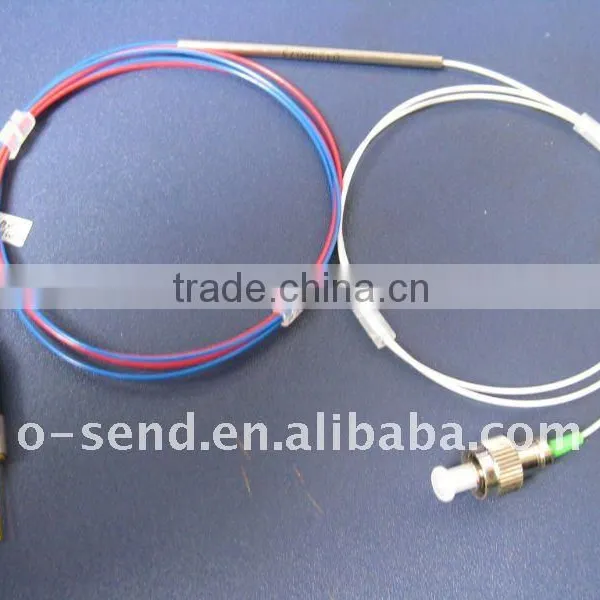

Fused WDM

Fused WDM thumbnail-1
Fused WDM photo-1
US$ 45.5 - 139.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
OSend
Model Number:
OLDXXXXXXX
Contact Supplier Request Quote Chat Now
O-Send Opto-Electronics (Chongqing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name OSend
Model Number OLDXXXXXXX

Specifications

WCDMA/GSM/PHS
Fiber-Optical Repeaters
RoHs
ISO9001:2000

Absolute maximum ratings

Parameter

Symbol

Min.

Max.

Unit

Test condition

Storage temperature

Tst

-40

+100

°C

-

Operating temperature

Top

-40

+85

°C

-

Reverse voltage

VR



2

V

CW

Soldering temperature/time





260/10

°C/S

-

Optical & electrical characteristics











Parameter

Symbol

Min.

Typ.

Max.

Unit

Test condition
Center wavelength

λc

1290

1310

1330

nm

-

Threshold current

Ith

-

5

15

mA

1310nm,25°C

Spectral width

Δλ

-

1

2

nm

CW,Ith+20mA

Output power

P

-

2.0

3.0

nW

CW,Ith+20mA,1310nm

Operating voltage

Vop

-

1.1

1.5

V

CW,Ith+20mA

Rise/ Fall time*

Tr/Tf

-

0.3

0.7

nS

CW,Ith+20mA

Monitor current

Im

0.1

0.7

-

mA

CW,Ith+20mA

Optical Isolation

Iso

30

-

-

dB

-

Tracking Error

ER

-1.0



1.0

dB

Im Hold@Po=1mW,25°C

CW,Tc=-45°Cto+85°C

Modulation Bandwidth

BW

1.25

-

-

GHz

Po=2mW

Relative intensity Noise

RIN

-

-135

-

dBm/Hz

CW,2mw,50MHz~1000MHz

Third-Order Intermodulation

IMD3

-

-60

-

dBc

@2stone,0dB



fused WDM
