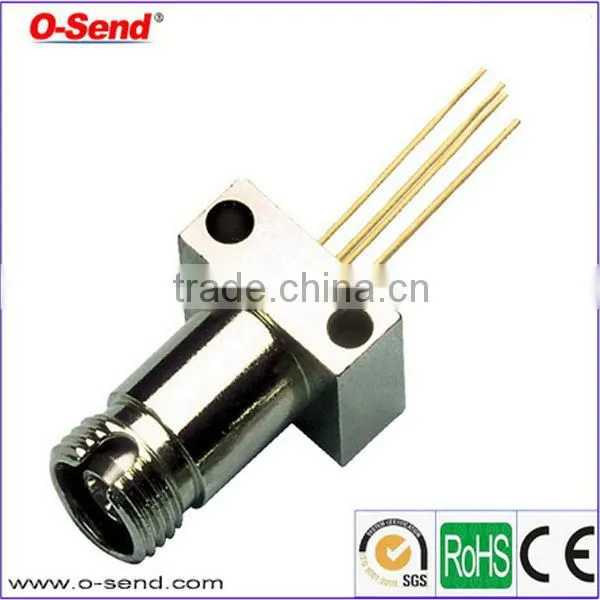

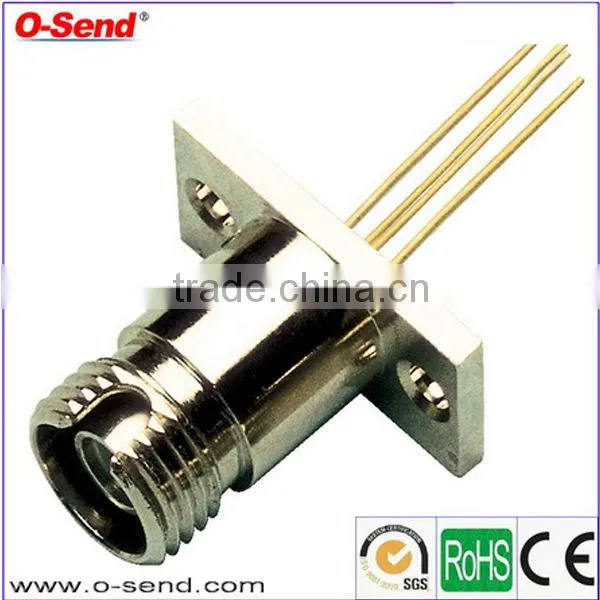

InGaAs Pin Diode Receptacle

InGaAs Pin Diode Receptacle thumbnail-1
InGaAs Pin Diode Receptacle photo-1
US$ 2.5 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
O-send
Model Number:
InGaAs Pin diode Receptacle
Contact Supplier Request Quote Chat Now
O-Send Opto-Electronics (Chongqing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name O-send
Model Number InGaAs Pin diode Receptacle
Type Other, Pin diode
Package Type Other, Coaxial
Max. Reverse Voltage 30

Specifications

1:Active diameter 50um-75um
2:Small dark current
3:High reliablity
4:ISO 9001

InGaAs Pin Diode ReceptacleInGaAs Pin Diode ReceptacleInGaAs Pin Diode ReceptacleAbsolute maximum ratings

Parameter

Symbol

Condition

Ratings

Unit

Storage temperature

Tstg

-

-40~+100

°C

Operating temperature

Top

-

-40~+85

°C

Reverse voltage

VR

CW

30

V

Soldering time

-

-

10

s

Soldering Temp

-

-

260

°C



Optical & electrical characteristics

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test condition

Detection range

λ

1100

-

1650

nm

-

Dark current

Id

0.1

1

5

nA

VR=5V,25°C

Quantum efficiency

R

-

0.85

-

A/W

VR=5V,λ=1310 nm

Saturation power

P

10

-

-

dBm

VR=5V,25°C

Rise and Fall time

Tr/Tf

-

0.1

-

ns

RL=50Ω

Bandwidth(3dB)

Bw

-

1

4

GHz

RL=50Ω

Reverse Voltage

VR

-

-

15

V

-

Capacitance

Ct

-

-

0.75

pF

VR=5V

Return Loss

RL

-

-

-45

dB

-

CSO

CSO

62

-

-

dB

45~860MHz,2channel

CTB

CTB

68

-

-

dB

45~860MHz,2channel

C/N

CNR

52

-

-

dB

45~860MHz,2channel
