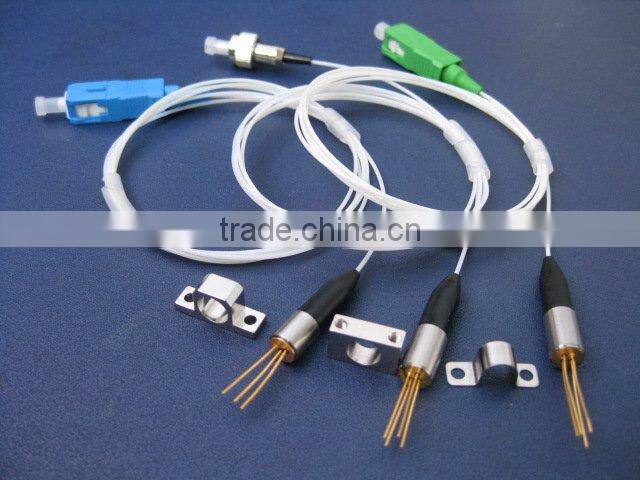

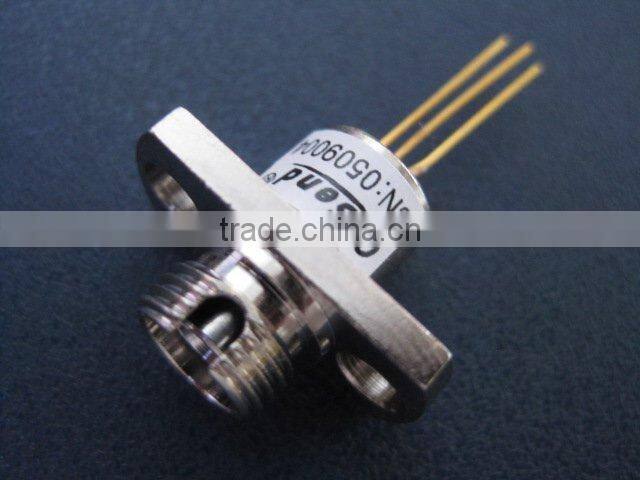

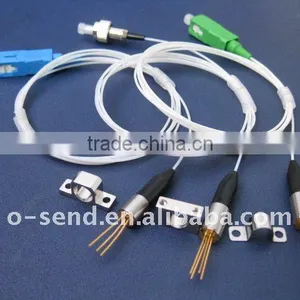

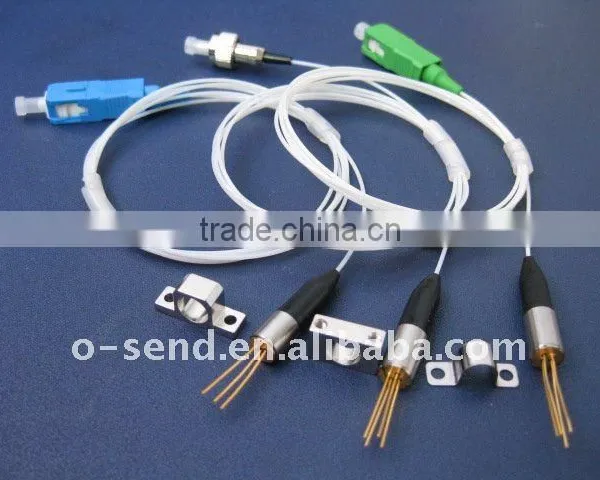

CATV Receiver Pin Diode
US$ 3 - 14.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
O-Send
Model Number:
OPD124RSC
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Chongqing, China
Brand Name
O-Send
Model Number
OPD124RSC
Type
Other, diode
Package Type
Other, coaxil
Specifications
Active diameter 50um-75umSmall dark current
High reliablity
RoHs
ISO 9001:2000
Absolute maximum ratings
Parameter |
Symbol |
Condition |
Ratings |
Unit |
Storage temperature |
Tstg |
- |
-40~+100 |
°C |
Operating temperature |
Top |
- |
-40~+85 |
°C |
Reverse voltage |
VR |
CW |
30 |
V |
Soldering time |
- |
- |
10 |
s |
Soldering Temp |
- |
- |
260 |
°C |
Optical & electrical characteristics
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test condition |
Detection range |
λ |
1100 |
- |
1650 |
nm |
- |
Dark current |
Id |
0.1 |
1 |
5 |
nA |
VR=5V,25°C |
Quantum efficiency |
R |
- |
0.85 |
- |
A/W |
VR=5V,λ=1310 nm |
Saturation power |
P |
10 |
- |
- |
dBm |
VR=5V,25°C |
Rise and Fall time |
Tr/Tf |
- |
0.1 |
- |
ns |
RL=50Ω |
Bandwidth(3dB) |
Bw |
- |
1 |
4 |
GHz |
RL=50Ω |
Reverse Voltage |
VR |
- |
- |
15 |
V |
- |
Capacitance |
Ct |
- |
- |
0.75 |
pF |
VR=5V |
Return Loss |
RL |
- |
- |
-45 |
dB |
- |
CSO |
CSO |
62 |
- |
- |
dB |
45~860MHz,2channel |
CTB |
CTB |
68 |
- |
- |
dB |
45~860MHz,2channel |
C/N |
CNR |
52 |
- |
- |
dB |
45~860MHz,2channel |
