Home > Products > laser diode for CATV > 1310nm FP infrared laser diode

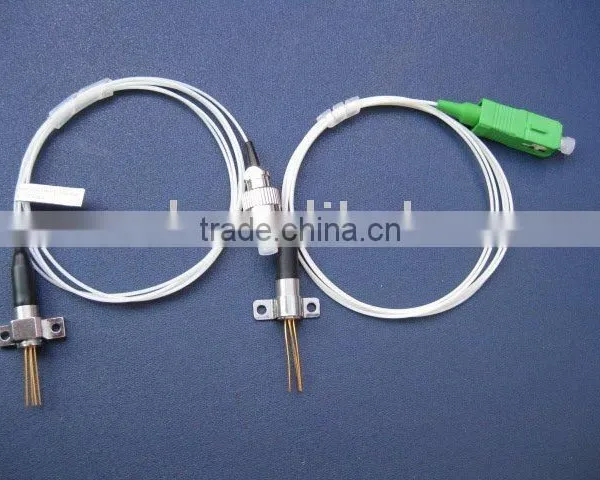

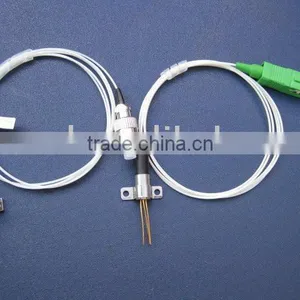

1310nm FP infrared laser diode
USD $26.5 - $125.5
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- FOB chongqing and Guangzhou
You May Like
-
Mini Laser Module with APC 4x8mm
-
Laser Module, 15x60mm Size 405nm-850nm 8um-110um Microbeam Laser Diode Module for Laser Positioning & Pointing
-
Mini laser module for laser alignment tools
-
1-5mw 520nm Low Consumption Mini Laser Diode Module 4x8mm
-
1-5mw Mini Infrared Laser Module for Measure Tools and Medical Treatment Instrument
-
Mini laser module for bar code scan instrument
Product Details
| Place of Origin: | Chongqing, China | Brand Name: | O-Send |
Product Description
Specifications
High output powerBuilt-in InGaAsP monitor PD
CATV Reverse Transmission
Optical & electrical characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test condition |
| Center wavelength | ||||||
λc | 1290 | 1310 | 1330 | nm | - | |
Threshold current | Ith | - | 5 | 15 | mA | 1310nm,25°C |
Spectral width | Δλ | - | 1 | 2 | nm | CW,Ith+20mA |
Output power | P | - | 1.0 | 4.0 | mW | CW,Ith+20mA,1310nm |
Operating voltage | Vop | - | 1.1 | 1.5 | V | CW,Ith+20mA |
Rise/ Fall time | Tr/Tf | - | 0.3 | 0.7 | nS | CW,Ith+20mA |
Monitor current | Im | 0.1 | 0.7 | - | mA | CW,Ith+20mA |
Optical Isolation | Iso | 30 | - | - | dB | 25°C |
