Product Details
Place of Origin: | Guangdong, China | Brand Name: | POWERLINK | Model Number: | AT-M-MEMS |
Product Description

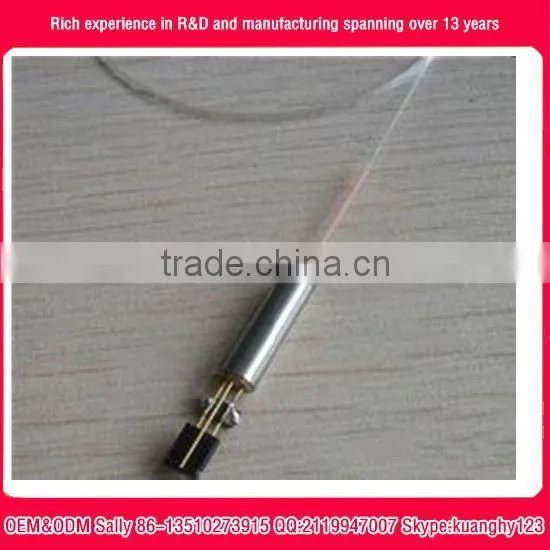

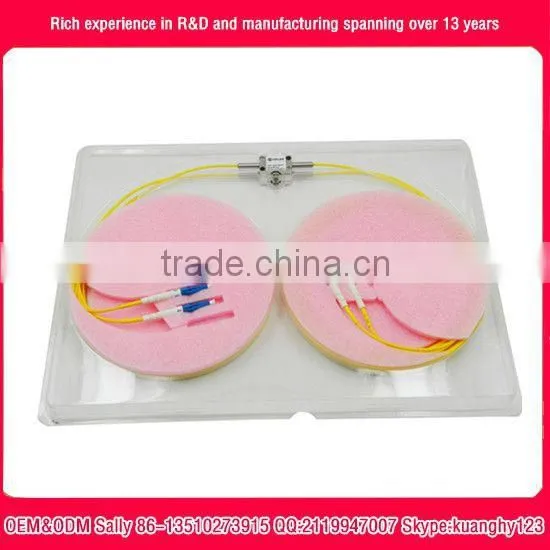

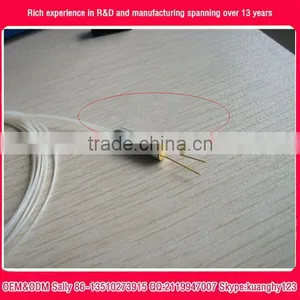

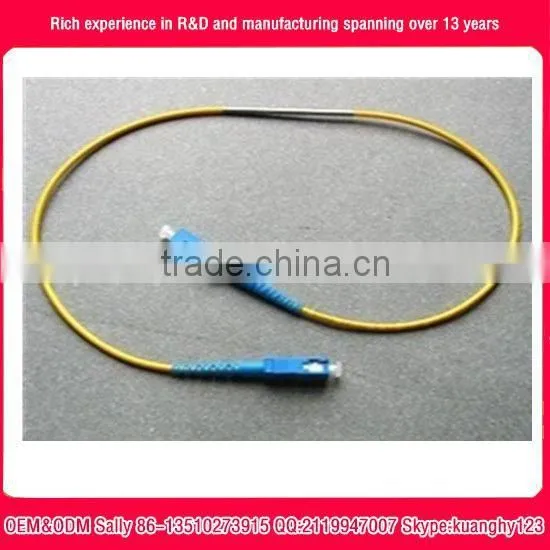

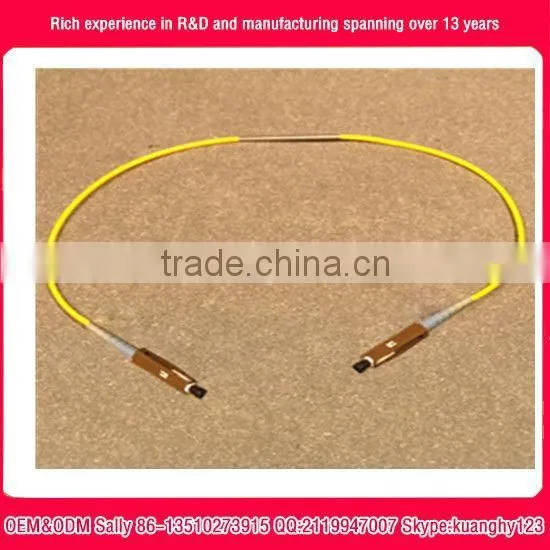

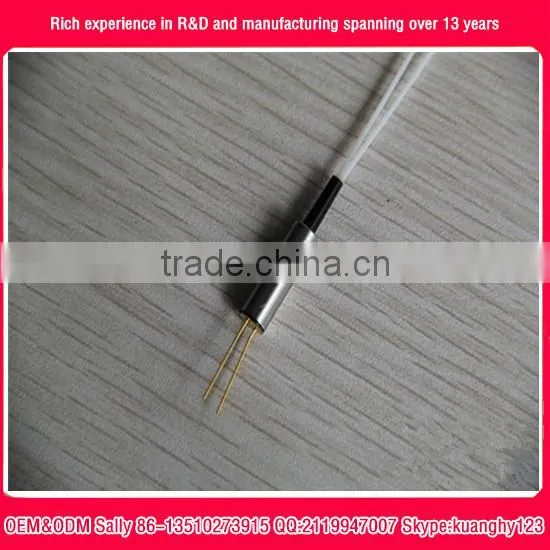

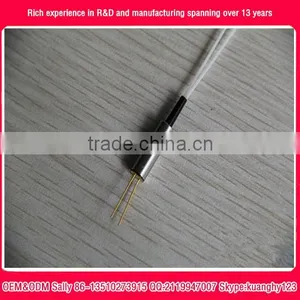

0-20dB 850nm Multimode Mini MEMS Variable Optical Attenuator fiber optic attenuator

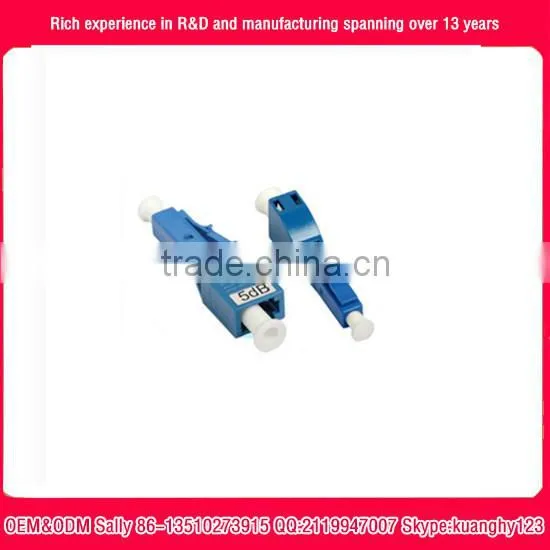

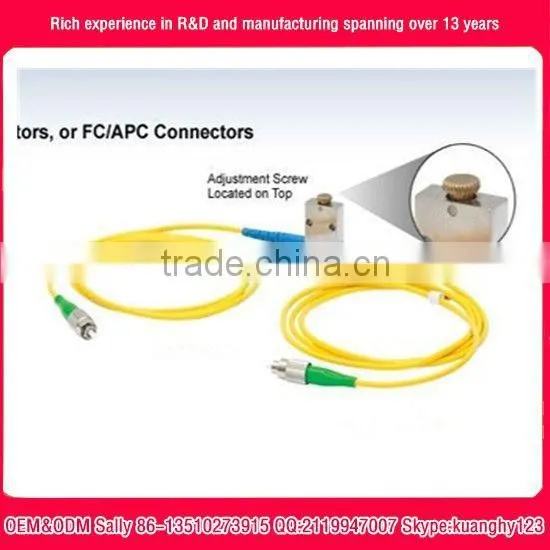

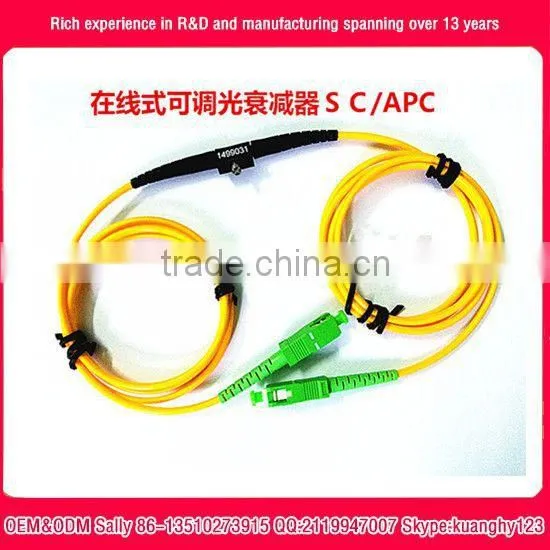

Optical Attenuators, or fiber optic attenuators, are used in optical communications to reduce optical fiber power at a certain level. Generally, the attenuator types are classified by connector types and attenuation levels. A common version is the female to male plug type bulkhead attenuator which has a connector at one side and a adapter at the other side. Powerlink provides optical attenuators with various connector types, such as FC/SC/ST/LC/E2000, available with APC or UPC polish. Our fixed attenuators can be with different attenuation levels from 1 dB to 30 dB (step by 1 dB), while the variable optical attenuators (generally used as in-line attenuators) can be with a range of 0 ~ 60 dB. Customers can buy these attenuators directly in this category or Make Customized Orders
Multi-Mode VOA is a VOA special product in Mini-VOA family supporting multi-mode laser attenuation. Based on the base design for single-mode VOA, special considerations are given in design and manufacturing process to achieve the desired performance in multi-mode operation. TheMMVOA is an critical component for multi-mode laser system with uncompromised performance.
Features

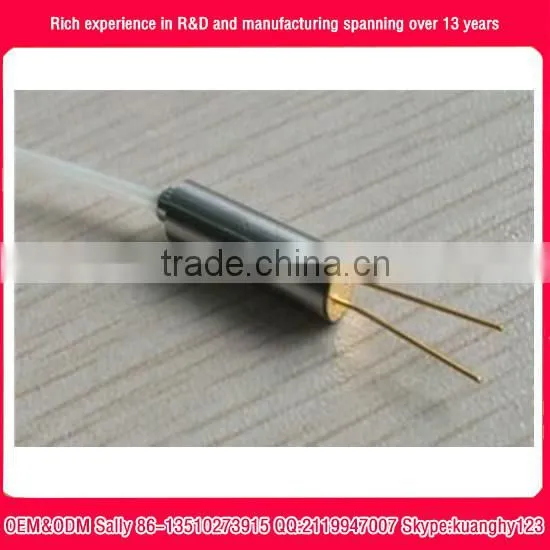

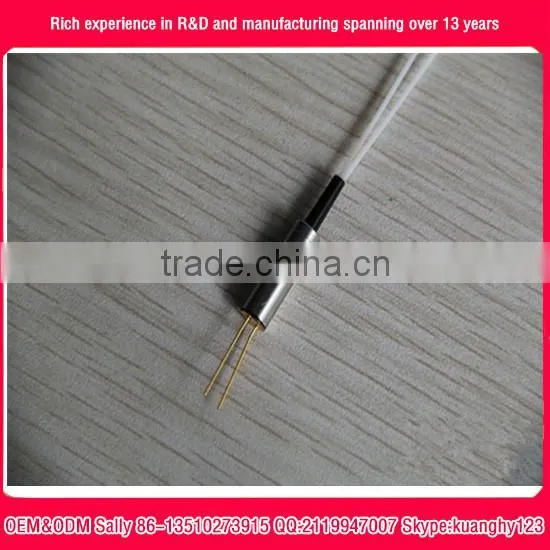

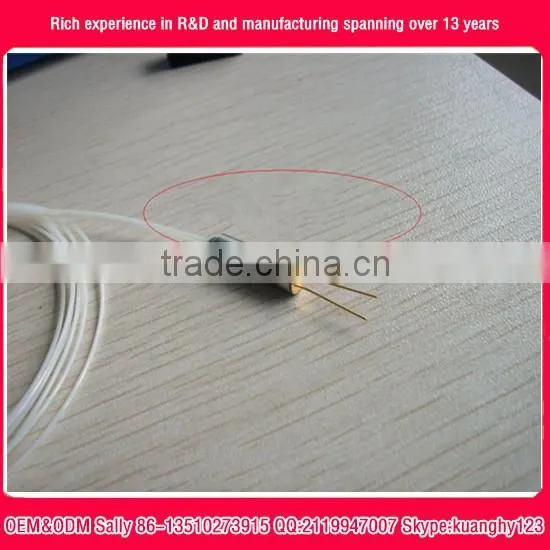

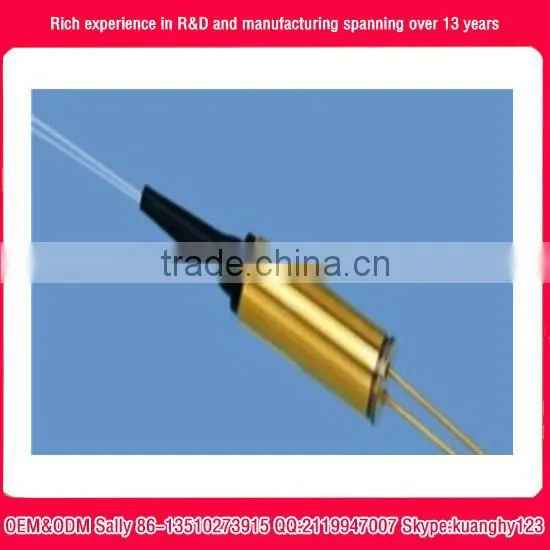

•Miniature design in a TO46 package
•Hermetically sealed
•Low insertion loss (IL)
•Large attenuation range
•High attenuation accuracy
•Low power consumption
•Fast response time
•High optical power handling
•Telcordia GR-1209 & GR-1221 compliant
Dimension
Ordering Information
Drive Voltage: | Attenuation Type: | Wavelength Range: | Attenuation Range: | Fiber Type: | Connector Type: | Fiber Protection: | Fiber Length: |
M 6.5V | B Bright | O 1310nm | 20 20dB | 1 50/125 | 0 None | 0 No jacket | 1: 1m |
D Dark | S 850nm | 2 62.5/125 | 1 FC/UPC | 1 0.9mm OD | |||
2 FC/APC | jacket | ||||||
3 SC/APC | |||||||
4 LC/UPC |
Parameter | Specification | Unit | |||
Fiber Type | Corning HI1060 | um | |||
Wavelength Range | 1060±10 | nm | |||
Attenuation Range | Min | 30 | dB | ||
Insertion Loss(without Connector) | Max | 0.8 | dB | ||
Optical Return Loss | Min | 45 | dB | ||
Total Optical Power | Max | 500 | mW | ||
Drive Voltage (DC) | Max | 6 | V | ||
Fiber Length | Min | >100 | cm | ||
Package Dimension (D X L) | (Φ)5.4mm*(L)28mm | mm | |||
Configuration | Bright / Dark | ||||
Operating Temperature | -5~70 | °C | |||
Storage Temperature | -40~85 | °C | |||
Power Consumption | 10 | mW | |||
Fiber Package | 250um bare fiber | ||||
Fiber Marking | Input port: Red |

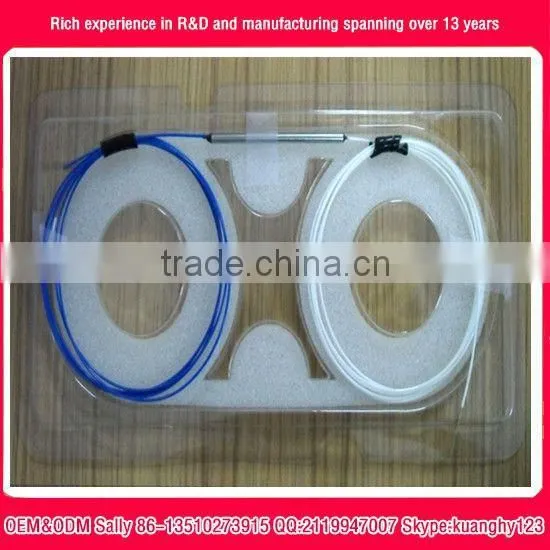

- Packaging : bags&caron box
