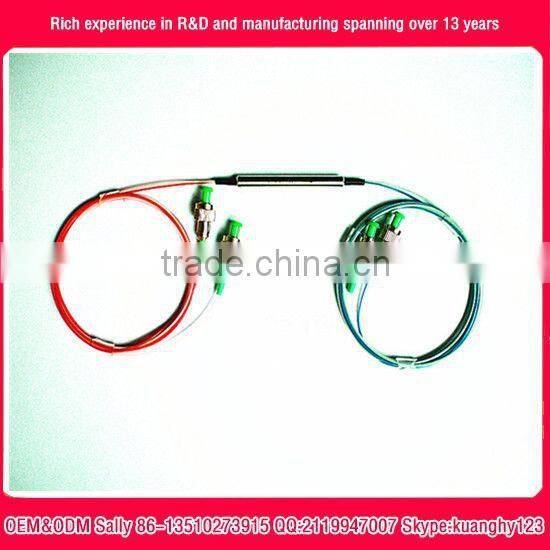

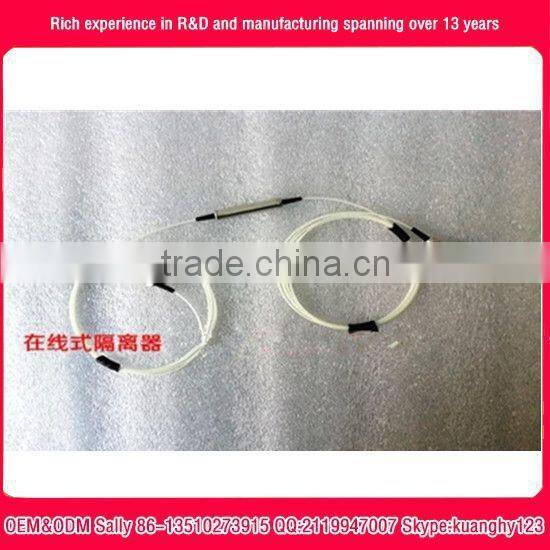

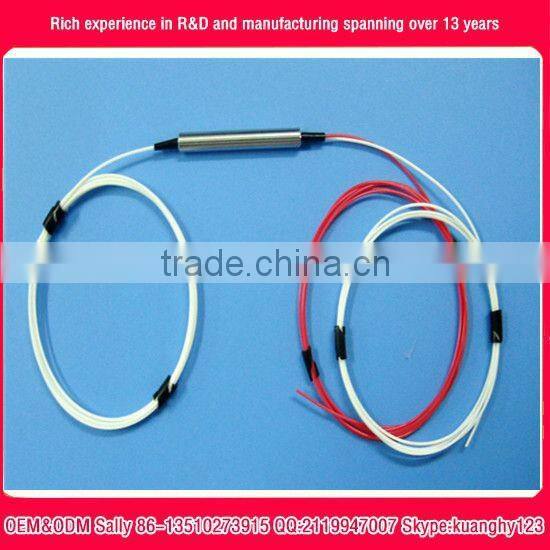

2W 5W 10W 1064nm High Power Isolator HPIS fiber optical isolator OEM factory
Fiber optical isolator can transmit light in a certain direction while blocking light in the opposite direction. Fiber isolators protect light sources from back reflections and signals that can cause instabilities and damage. Powerlink offer a range of in-line type and beam expanded isolator, narrowband and broadband free-space optical isolators (Faraday isolators) including 1310/1550nm/1064nm high power polarization maintaining isolator and high power Polarization insensitive circulator. We also can supply a custom isolator service that can combine the best features of our entire isolator products
Features
- Low Insertion Loss
- High Return Loss
- High Isolation
- High stability
- High Reliability
Applications
·Optical Fiber Amplifiers
·Testing Instrumentations
·Fiber Sensor

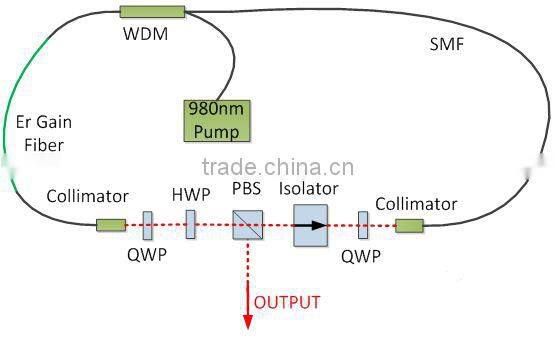

·Fiber Lasers
·Lab Research
Ordering Information
| HPIS/HPPMIS-1030-234567-88 | ||
| 1064 | Center Wavelength: | 1064=1064nm |
| 2 | Axis alignment | F=Slow axis working Fast axis blocked, B=Both of axis working, N=No axis |
| 3 | Fiber type | 0=PM Panda fiber, 1=SMF-28e, 2=Hi1060 |
| 4 | Pigtail type: | 0=250 bare fiber, 1=900um loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube |
| 5 | Fiber length: | 0=0.8m,1=1m |

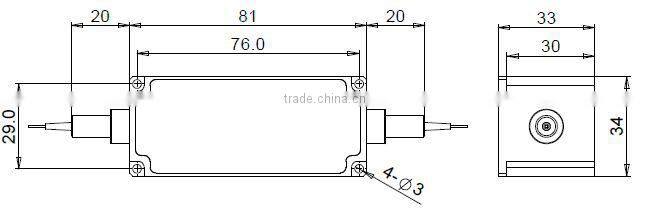

| 6 | Package Dimension: | 0=81*34*33mm, S=Specified |
| 77 | Handling Power | 01=1W, 02=2W,......,05=5W,......, 20=20W |
| Parameters | Unit | Value | |||
| Type | - | HPIS | HPPMIS | ||
| Center Wavelength | nm | 1064 | |||
| Operating Wavelength Range | nm | ±20 | |||
| Typ. Peak Isolation at 23°C | dB | 32~40 | |||
| Isolation at 23°C | dB | 25 | |||
| Typ. Insertion Loss at 23°C | dB | 0.6 | |||
| Max. Insertion Loss at 23°C | dB | 1 | |||
| Max.PDL at 23°C | dB | 0.15 | / | ||
| Extinction Ratio at 23°C | Fast axis blocked | dB | / | 23 | |
| Both of axis working | dB | / | 20 | ||
| Min. Return Loss(Input/Output) | dB | 50 | |||
| Max. Optical Power | CW | W | 1, 2, 3, 5, 10, 20 or specify | ||
| Pulse Peak | kW | 10 | |||
| Max. Tensile Load | N | 5 | |||
| Fiber Type | - | HI 1060 fiber or specify | PM980 fiber or specify | ||

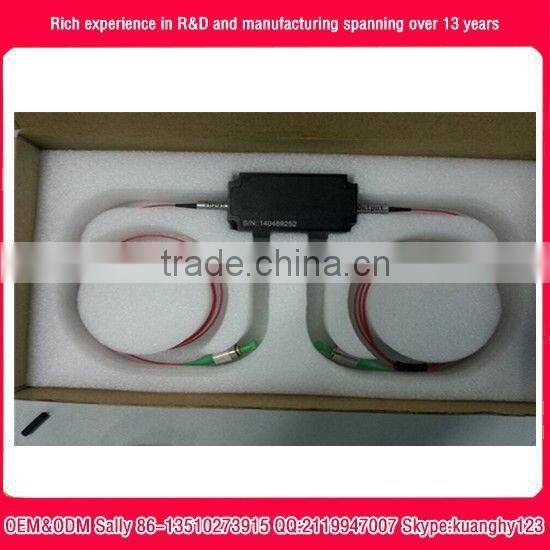

Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
- "One to one" heart to heart service:Sales representative serve for five clients only. We look forward the continuing long-term services for you, but not just one or two times' co-operation.
- Perfect after-sales service :24-hour designated telephone number, e-mail and customer manager
Shenzhen powerlink electronic technology company limited is a high-tech private-run enterprise specialized in research development ,manufacturing customized video and fiber optical media converter products and power supply products . mainly manufacture Optical Fiber Transmission, Data Communication and Network Access Equipments. Included LD/PD, Optical Fiber Communication ,fiber media converter, digital video converters, media converters,Digital CCD cameral ,ethernet switch, video converter, fiber optic modem, protocol converter, fiber optic adapter, fiber optic cable, patch cord, optical coupler, wavelength division multiplexer, optical attenuator, fiber optic splice enclosure, fiber optic terminating box ,ODF ,LED power supply ,switch power supply etc, which have been are widely applied in many industries like telecom, broadcast&television, finance,traffic safety protection, computer, campus network, interliligent district and electronic government affairs engineering etc. those products are used widely in more than 30 industries , such as Telecom ,safe city Surveillance, International Airports, Highway, Power, Hydropower, Public Security.
Why POWERLINK
- Higher quality but lower price :Business Process Outsourcing. Outsourcing the repetitive non-core or core production process to professional suppliers, reduce cost; improve service at the same time. Can concentrate on control of the company's core technology, achieve high-end products positioning as well as understand the whole industry chain deeply
- Complete solution, meet individual requirements
- We thoughtfully consider from the initial design to material and supplier selection, from the main parts to one wire or even a screw. Combination local geographical, climatic characteristics, as well as factors such as regional culture in of product design, and fully customized to meet the requirements.
- Resource integration, provide you with the most satisfied products :We have accumulated thousands of solar manufacturers, hundreds of friendly cooperator, we will continue the accumulation.
- Professional technique, quality assurance:Control the quality from the source, professional product engineers and sales engineers make checks at all levels.
- ERP management :All management runs through pre-sale, sales, after- sale strictly in accordance with the ERP.
- Standardization,Atumization,Vitrification,Definite Responsibility,More Optimized Flow
