1x64 plc splitter pon splitters oem factory

                1x64 plc splitter  pon splitters oem factory

                                 Stock in warehouse

1. PLC (Planar Lightwave Circuit) splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability
2. 1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Powerlink PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
3. The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.
4. Powerlink provides a various of 1xN and 2xN PLC bare splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 bare fiber type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 bare fiber type PLC splitters.
5. Fiber optical splitter is used to split the fiber optic light into several parts at a certain ratio. The fiber optic splitter is an important passive component used in PON FTTX networks. There are mainly two kinds of passive FTTH optical splitters: one is the traditional fused type splitter as known as FBT coupler or FBT WDM optical splitter, which features competitive price; the other is the PLC splitter based on the PLC (Planar Lightwave Circuit) technology, which has a compact size and suits for density applications.
6. As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment
7. Powerlink Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
8. Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
9. 1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Powerlink PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
   The bare PLC splitters are used for small spaces that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.
10. Powerlink offers a large selection of polarization maintaining (PM) 1xN optical splitter modules. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range
    The high power coupler with different fibers at various wavelength.Take high power combiner experience advantage, we can build high power coupler with good heat dissipation and telecom comparable performance and reliabilityFiber PLC Splitter in Mini plug-in Type, G.657A Fiber, FC, SC, ST & LC connectors for choice, is specialized for plug and play
11. splitter application, features high reliability, reduce installation time,small size, wide operating wavelength range and good channel-to-channel uniformity and provide a cost effective and space saving product suitable to the ever changing networking requirements, and now is widely used in PON networks to realize optical signal power splitting.

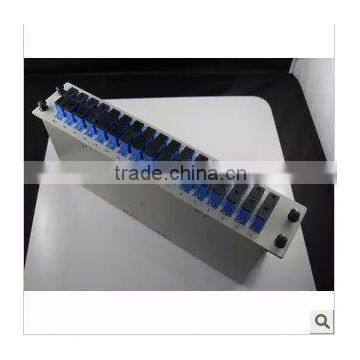

12. Fiber PLC Splitter Tray, G.657A Fiber, FC, SC, ST & LC connectors for choice, is a packaged system that PLC splitter input fibers and output fibers are preinstalled on a tray which easily fit within ODF (Optical Distribution Frame), the Cross Connection Cabinet and other optical fiber distribution equipment. The splitters are secured within the trays and the trays are tamper-proof to prevent unwanted entry.
13. Powerlink provides a series of 1xN and 2xN(N=2,4,8,16,32,64) Fiber PLC Splitter Trays which feature low insertion loss, good channel-to-channel uniformity, wide operating wavelength range, excellent environmental stability, and now they’re widely used in PON networks to realize optical signal power splitting as a low-cost solution.

Bare Fiber Type PLC Splitter Features

1. Good uniformity and low insertion loss
2. Low Polarization Dependent Loss
3. Excellent Mechanical
4. Stability Telecordia GR-1221 and GR-1209
5. Components through TLC-Certified,Conform to YD1117-2001
6. Operating environment: -40ºC to +85ºC
7. High Polarization Extinction Ratio & Excellent Uniformity
8. Fiber input: 0.9mm or 250μm fiber for choice
9. Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber
10. Bare Fiber Type PLC Splitter Applications
11. Fiber to the point (FTTX)
12. Fiber to the home (FTTH)
13. Passive optical networks(PON, GEPON)
14. Local area networks (LAN)
15. Cable television (CATV)
16. Test equipment

Mechanical Drawing

Kind note: This price is without connector

1. V.S FBT Coupler, the advantages of PLC are as follows
2. The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different wavelength
3. High spectral uniformity, can splitter the signals on average
4. Compact structure, small volume
5. The cost advantage is very obvious on many splitter channels

Order Information

Powerlink provides a whole series of 1xN and 2xN splitters that are tailored for specific applications:

1. a.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 Versions of splitters are available.
2. b. 250μm or 0.9 mm can be choose as input fiber type, 250μm bare fiber for output fiber type.
3. c. The length of pigtail can be also customized; usually we will provide you 1m, welcome to contact us for more details.
