E1 G.703 - V.35 Interface Converter/Protocol Converter 220VAC and -48VDC Dual power supply OEM&ODM factory
Product Description
Protocol converters are used to transform signals from one kind of network to the other kind of network, typical types include E1 to Ethernet, V35 to Ethernet and E1 to V35. Protocol converter can be applied in many fields such as connection of LAN and end points, video ordering, long-distance monitoring and E1 interface card-plugging of Ethernet. Powerlink offer high quality E1/V.35/RS485/RS232 protocol converter. There are card types and standalone in 19 inch rack for choice. Both framed & unframed, 75 & 120ohm and 220V/110V/48V power supply or both are available for the E1 function.

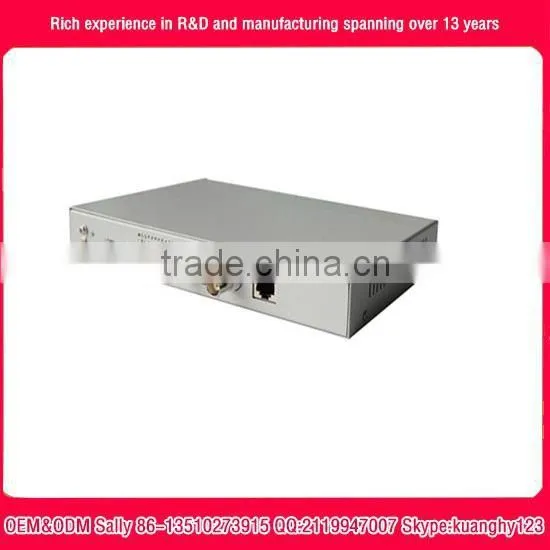

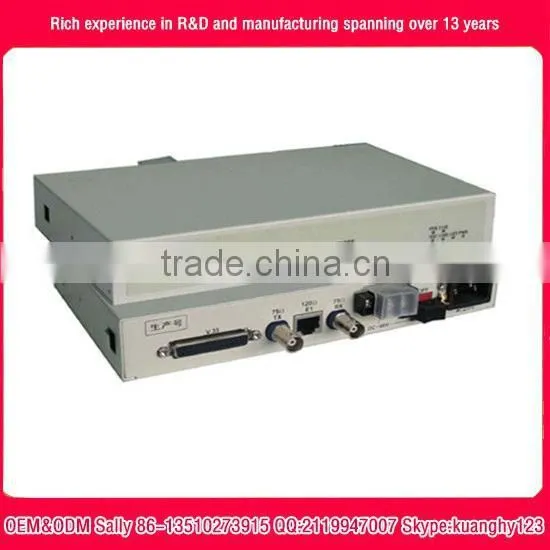

E1 G703 to V35 convertor provide conversion between ITU-T G.703 standard E1 interface and standard V.35 interface, can receive synchronous 2.048 Mbps data, transfer it to router, DDN, multiplexer or other devices.
Features
- Converts V.35 interface into G.703 E1 interface
- 2.048Mbps data transparent transmission
- Provides three clocking modes for maximum flexibility
- Supports E1 balanced and unbalanced interfaces
- Power supply AC220V& DC-48V
- Dimension: 200mm(width) x 43.5mm (height) x 150mm (depth)
Technical Specification
E1 Port Standard
- 2M Port: ITU-T G.703 and G.704 compliant
- Code Type: HDB3
- Code Rate: 2.048Mb/s±50ppm
- E1 Interface: Unbalanced: 75Ω/BNC or Balanced: 120Ω/RJ45
V.35 Port Standard
- Code Rate: 2.048Mb/s
- Clock :Master/Slave/Source three optional clocking modes
- Interface Type: V.35 / DCE
- Electrical Characters: ITU-T V.35 proposed standard balance
- Terminal standard: ISO2593 compliant
Working Environment
- Power Input AC+DC
- Power Consumption: ≤5W
- Operating Temperature: -5°C~50°C
- Storage Temperature: -40°C~+70°C
- Relative Humidity: 10%~90% Non-condensing
- No corrosive and solvent gas, no fluty dust and intense magnetic-field interference

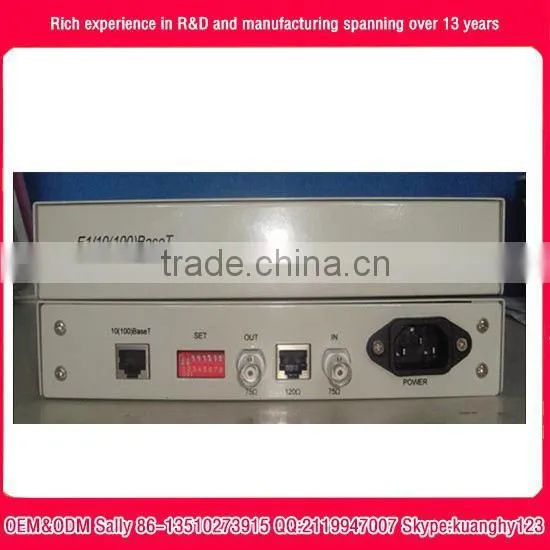

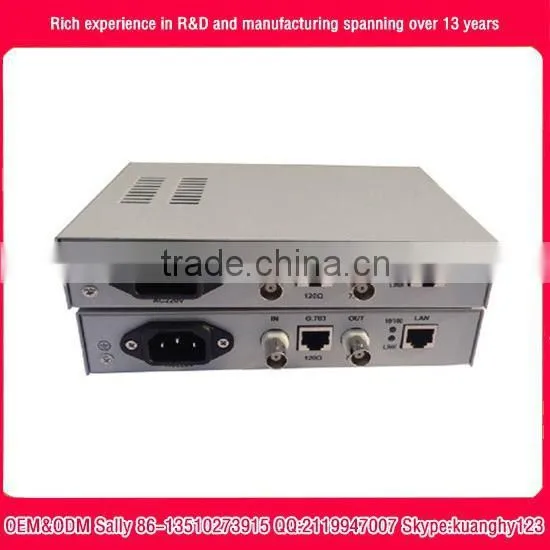

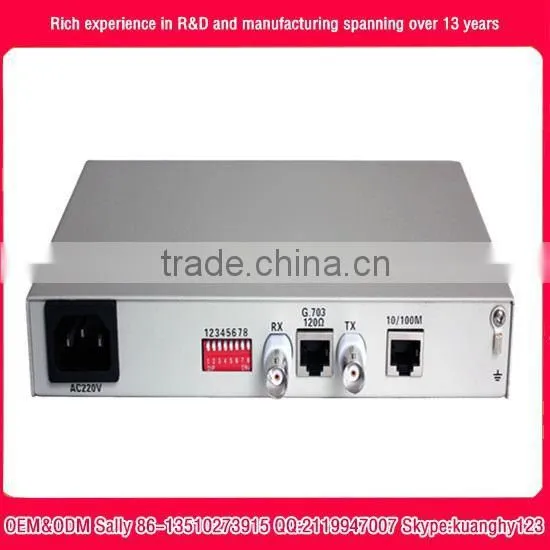

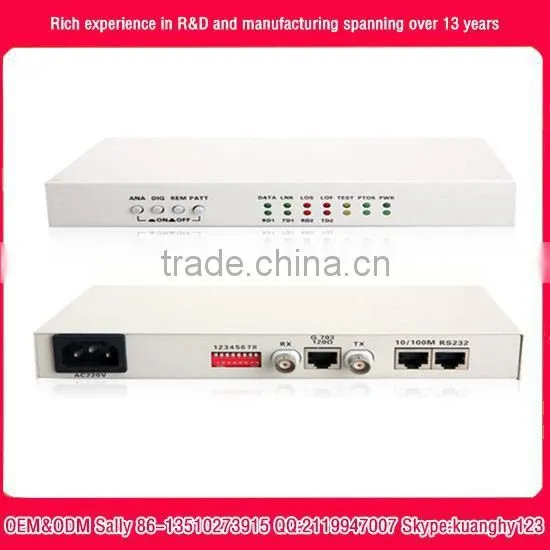

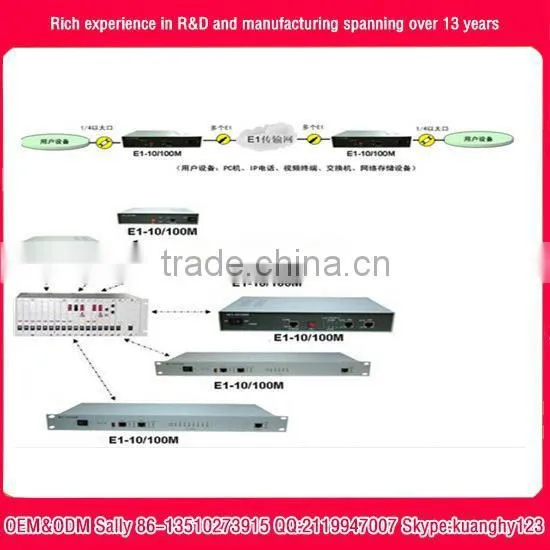

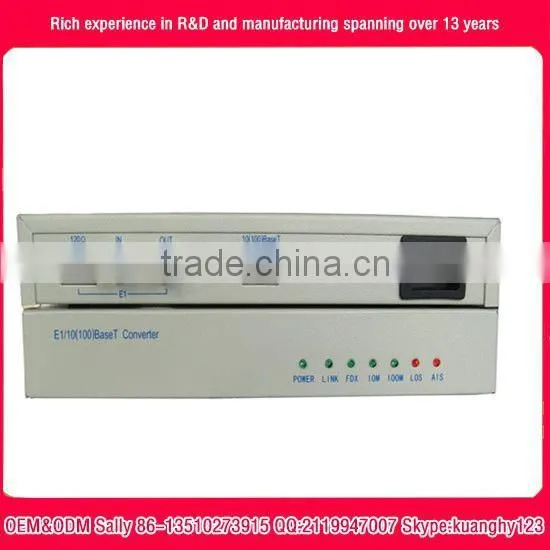

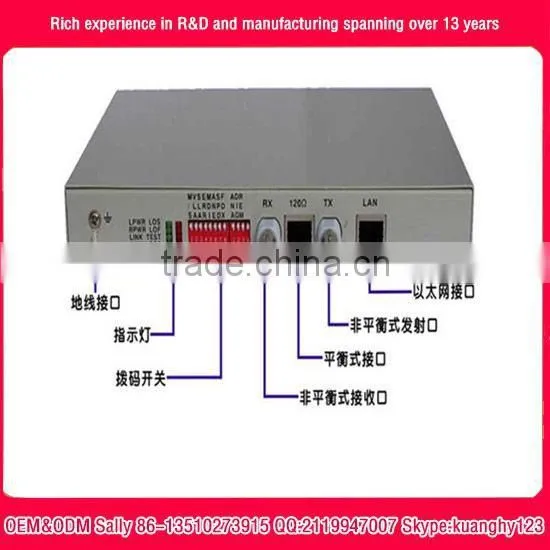

E1 to Ethernet 10/100Base-T converter provides easy conversion from ITU-T G.703 E1 channel to Ethernet interface. Can used widely in connecting between WAN and LAN, monitoring, etc.The Ethernet interface is 10/100Mbps auto negotiation and can be full/half duplex.
Features
- High performance bridge for 10(100) Base-T Ethernet extension
- Fully compatible with IEEE 802.3 and Ethernet Standards
- E1 channel: both framed & unframed
- 75 & 120 Ohm impedance
- Ethernet Port: 10 Mbps, Full/Half Duplex Mode compatible
- Ethernet ports support MDI/MDI-X selectable
- Allow transmitting and receiving VLAN data packet
- 15000 frames per second filtering and forwarding rate
- 1000 MAC address LAN table, and automatic LAN table learning and aging
- Standalone and Module optional
- Power of Chassis: 2 slots for slide in power supplier module, AC or DC power supplier module, redundant power supported
- AC 220 V±20% or DC -48 V power input
Specifications
LAN port
- Standard: Conforms to IEEE802.3 / 10(100) Base-T Ethernet
- Data rate: 10 Mbps (20 Mbps/10 Base-T in Full duplex topology)
- Compatible on Full/Half duplex topology
- Connectors: RJ-45 connector
- Transfer distance:
E1 port
- Standard: ITU G.703, G.704,
- Jitter Performance: According to ITU G.823
- Bit rate: N×64 Kbps, N=1~31 (Fractional Mode) or 2.048 Mbps (Full Mode)
- Line Code: HDB3
- Line Impedance: 75/120 ohms optional
- Pulse Amplitude: Nominal 2.37 V±10%
Working Environment
- Voltage: AC 220 V ±20% or DC -48 V optional
- Power Consumption:
- Temperature: 0-50°C
- Humidity: 0-90%(non-condensing)
- Size(Width×Deep×High): 230 mm ×124 mm× 36 mm
