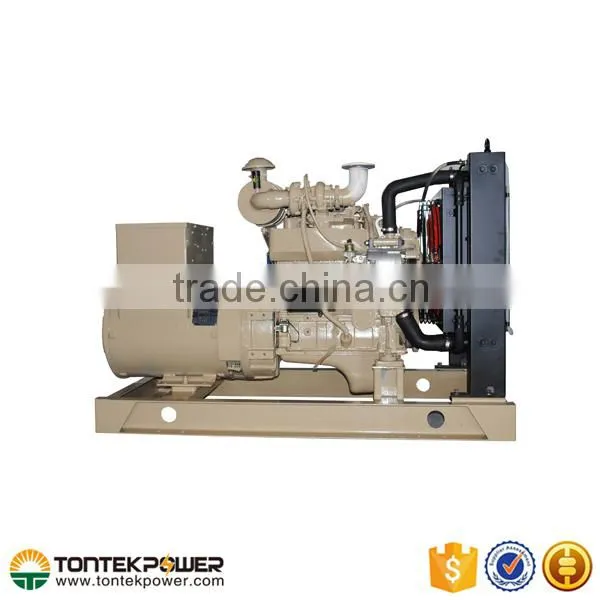

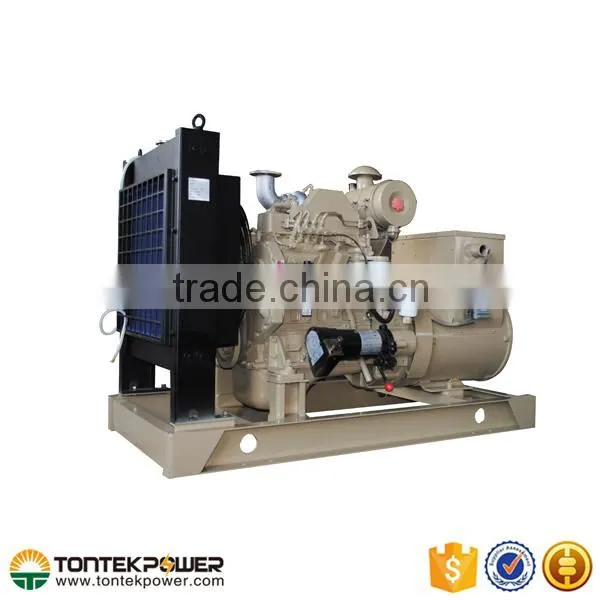

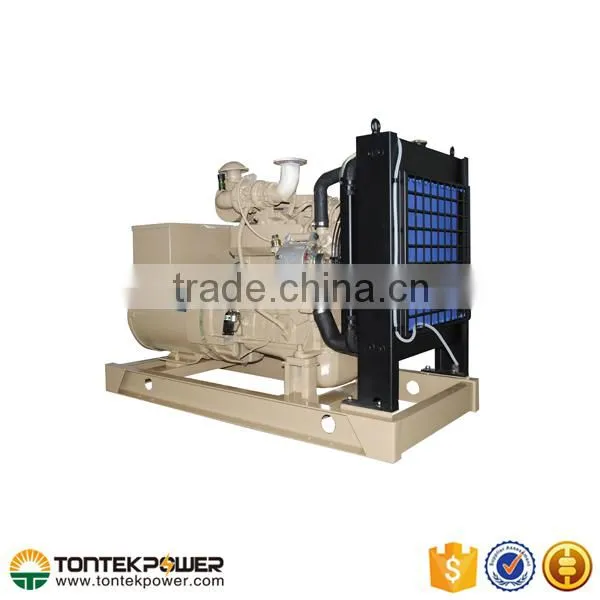

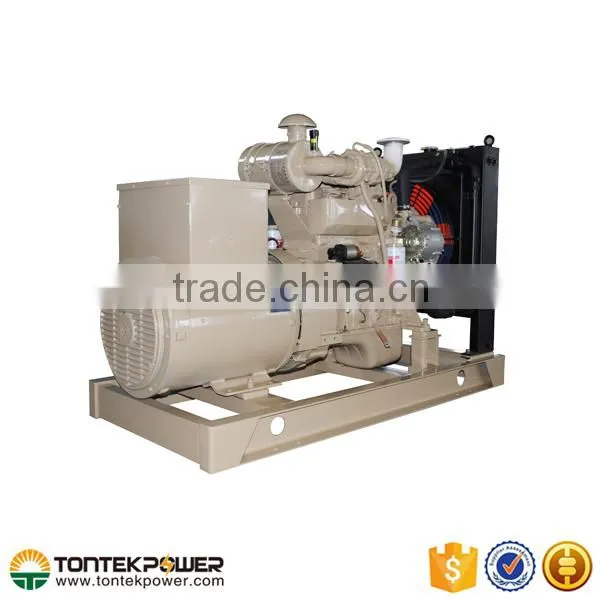

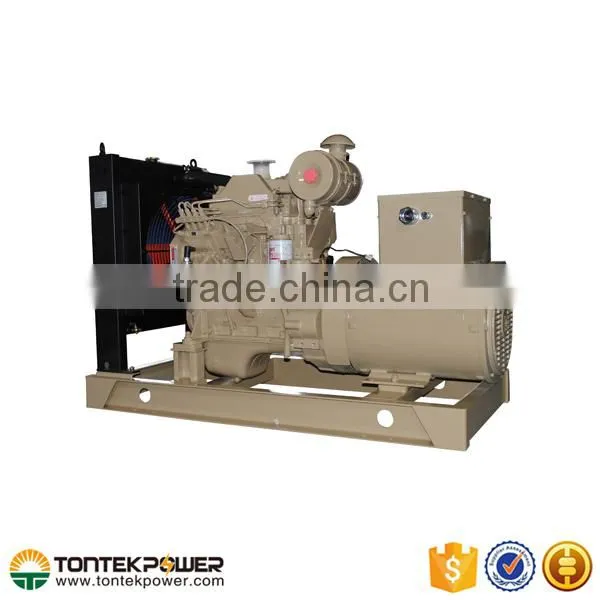

30kW High Quality Used Marine Diesel Generator With Cummins Engine
US$ 5,800 - 6,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONTEK POWER
Model Number:
CCFJ30Y-WTPC5
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1300kW Marine 400V 50HZ 3 Phase GeneratorUS$ 202,000 - 229,000MOQ: 1 Set -
40kW Emergency Marine Diesel Generator 50kVAUS$ 6,200 - 7,200MOQ: 1 Set
-
50kW Used Marine Diesel Generator Set With Cummins Engine 400VoltUS$ 7,700 - 7,900MOQ: 1 Set
-
6Cylinder 80kVA High Rpm Marine Diesel Genset With Cummins EngineUS$ 6,600 - 7,700MOQ: 1 Set
-
60HZ 6Cylinders Electrical Marine Gen-set With MWM EngineUS$ 29,000 - 32,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
TONTEK POWER
Model Number
CCFJ30Y-WTPC5
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50HZ
Rated Power
30kW/38kVA
Rated Voltage
400V
Rated Current
54A
FAQ
| 30kW High Quality Used Marine Diesel Generator with Cummins Engine | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | CCFJ30Y-WTPC5 | ||||||||
| Prime power | 30kW/38kVA | ||||||||
| Rated Voltage(V) | 400 | ||||||||
| Rated frequency(HZ) | 50 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 1750x750x1280 | Generating set model | |||||||
| Genset Weight(kg) | 700 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | 4BTA3.9-GM47 | ||||||||
| Output power | 52kW/65kVA | ||||||||
| Number of Cylinders | 4 | ||||||||
| Cylinder arrangement | In-line | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Turbo, Water / Air Cooling | ||||||||
| Bore×Stroke (mm×mm) | 102 x 120 | ||||||||
| Displacement (Liter) | 3.9 | ||||||||
| Compression Ratio | 17.3:1 | ||||||||
| Speed Governor | Electronic | ||||||||
| Cooling System | cooled by radiator | ||||||||
| Total lubrication system capacity (L) | 70 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 211 | ||||||||
| Starting Method | Both DC24V and air starting motor | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | PI1 44J | ||||||||
| Rated power | 30kW/38kVA | ||||||||
| Number of Phase | 3 | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP22 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Influence Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
Product Description
Our Services
Packaging & Shipping
Payment terms: 30% T/T as deposit, 70% balance be paid before shipment or
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
100% irrevocable L/C at sight
Delivery time: 5-25 days against deposit (according to specific project)
