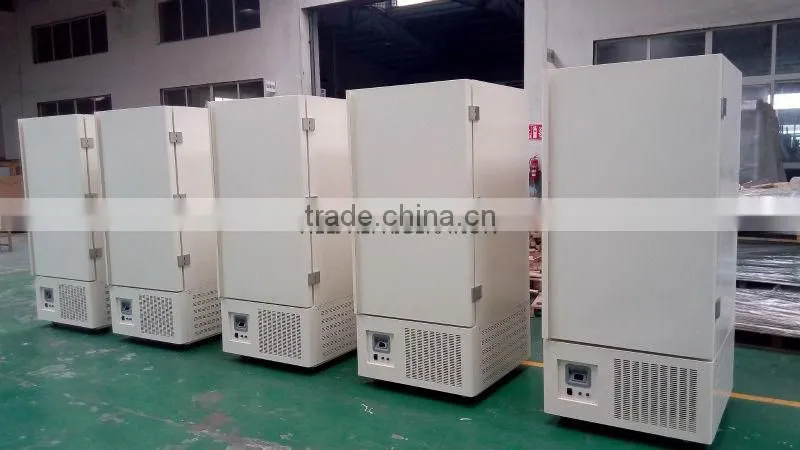

Help Center-86 Degree 398L ULT FREEZER
Related Products
-
Medical and Scientific Use -86 Degree Celsius FreezerUS$ 1,500 - 3,000MOQ: 2 Sets -
Medical Refrigerator in -86 Degree CelsiusNegotiableMOQ: 2 Sets
-
Best Seller Lab Refrigerator Upright Type 598L for SalesUS$ 2,000 - 4,000MOQ: 2 Sets
-
USA Ultra-low Temperature FreezerNegotiableMOQ: 5 Sets
-
-80 Degree Horizontal USA Laboratory FreezerNegotiableMOQ: 5 Sets
1.Features
The HELI -86 °C series suitable for scientific research institution, ultra low temperature expetiment for special material, electronic industry, chemcial industry, war industry, university laboratory, biological engineering, pelagic fishery and so on.
It can be usd to store virus, germ, RBC, WBC, skin, skeleton, bacteria, semen, biological product, ocean product, also it can provide a low temperature environment for electron device low temperature experiment.
2. Technical parameter
Refrigeration principle: single stage compression( Just one compressor)
Temperature: -40°C~ -86°C (Adjustable)
Capacity: 398L
Voltage: 220V/ 50HZ
Interior Dimensions(LxWxH): 550*630*1140(mm)
Exterior Dimensions (LxWxH):850*930X1950(mm)
Chamber Material: Cold-Rolled (Cold Rolled) Steel plate
Compressor: Danfoss
Fan: Germany EBM
Temperature controller: Dixell
Refrigerant ( High stage): Mixed
3. Main Features
1. Unique refrigerating system, which is single stage compression, more energy-saving.
2. Environment-friendly, 100%CFC free.
3. Accessories of world-famous brand, ensuring the quality.
4. Designed according to the customers' individual demand, with high performance-price ratio
5.Alarms systems are available
6.Cooling fastly, it's efficient and energy-saving.
4.Related products
| Model | External dimension | Inner dimension | Voltage | power | Temperature | Capacity | Climate |
Netweight |
| DW-40 L30 | 470(L)X490(D)X1120(H) | 270(L)X265(D)X400(H) | 220V/50HZ | 350W | -15°C~-40°C | 30L | N | 60KG |
| DW-60 L30 | 470(L)X490(D)X1120(H) | 270(L)X265(D)X400(H) | 220V/50HZ | 350W | -25°C~-60°C | 30L | N | 60KG |
Plywood box packing
Packing details
| Model | DW-86L398 Ultra low temperature freezer |
| Product size (L*W*H)mm | 850 (L) *930 (D) *1950 (H) mm |
| Packing size (L*W*H)mm | 920(L)*1000(D)*2050(H)mm |
| Net weight | 210 KG |
| set/20ft GP | 12 sets |
| packing way | Export stand: Plywood box keep safe both export and import. |
OEM available.
Inquiry response: your enquiry will be replied in 24 hours.
Professional salespersons with 5 years in products and trading service to help you find what you need.
Payment terms: T/T, L/C at sight, West Union
Delivery time: Ship by sea, Time: 28 days since payment.
Online service:
trademanager: cn200884155
my Skype:jackheli
Zhejiang Heli Refrigeration Equipment Co., Ltd was founded as a manufacturer in 2006 in our boss’s ambitious determination and customer-centric philosophy, with the persistence effort and team working, our company has possessed Several patents and advanced refrigeration planting.
Our main products includes supermarket refrigerated cabinet series, dish order cabinet in restaurant series, Ultra-low temperature freezer series(Minus 136, minus 86, minus60.etc). All of our products has been CCC certified, and some have been approved by CE certification. OEM is welcome.
Refrigerating Plant
Testing process(Testing Room to set Relative humidity and ambient temperature according to any country)
1. Question: What is your Minimum order quantity?
Answer: Minimum order quantity is 2 pcs.
2. Question: What is your payment terms?
Answer: 50% by T/T as deposit, the balance to be paid against copy of B/L; In case, order quantity less 5 units, 100% by T/T;
3. Question: What is your delivery time?
Answer: Delivery: about 10~15 days after receipt of deposit (except public holidays in China).
