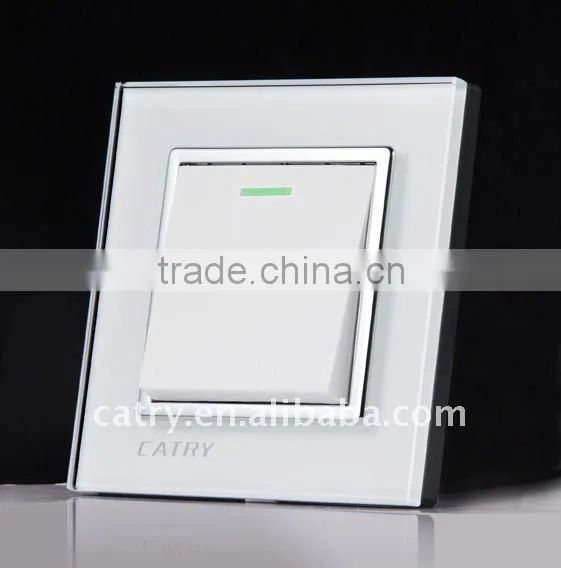

1 Gang 1 Way/2 Way Light Switch

Name: 1 Gang 1 Way/2 Way Light Switch
Brand: CATRY
SKU: 130889109
Availability: InStock

US$ 8.68 - 18 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CATRY

Model Number:

CA-K-31D/S

Shenzhen Catry Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CATRY

Model Number CA-K-31D/S

Size 86*86MM

Max. Current 5A

Max. Voltage 250V

Mechanical Life 100.0000TIMES

MODEL: CA-K3-31D/S One Gang One way/two way Switch
1	Dimension:
	Length	86mm
	Width	86mm
2	Main Features
	Material	Microlite touch panel
	Decorative frame	Silver-gilt Chrome trim surround
	Suit for bottom case	A standard 86# bottom case is used
	Installation	Quick and easy to install, as normal light switch
	Applicable load	Using with all types of lights including incandescent, fluorescent lamps, tubes, energy saver and motion sensor lamps and so on
3	Technical Specification:
	Rated Voltage: 220~240V AC, Frequency:50/60Hz
	Load Current		10A
	Operating Power		1 Gang(1 or 2 way)
	Operating Environment		“0~40” Centigrade; Relative Humidity:10%~93%
	Energy Consumption		<0.02W
	Life		100,000 times at least
	Certification		CE & RoHS Certified
4	What you get inside box
	One gang switch		One Service Manual of mechanical switch
	One Warranty Card		Two mounting screws
5	Terms:
	Production Lead time		3~15days for normal orders, 30~45days for special orders
	Samples delivery time		We can delivery them in 3days after get the samples charge
