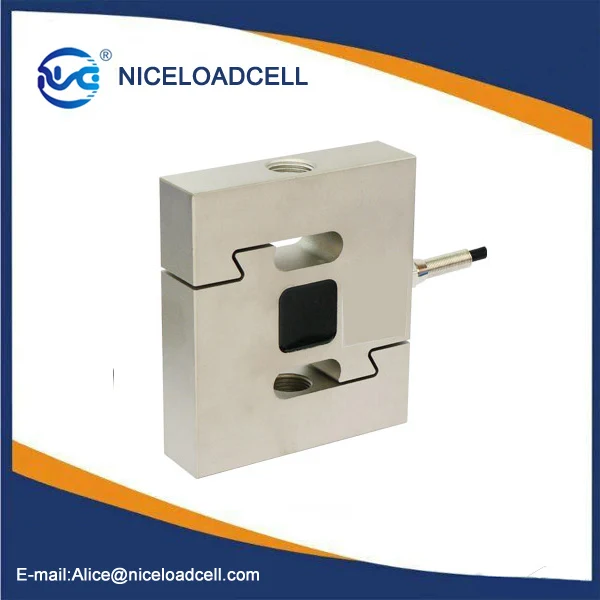

CZS309 Tensile testing 5kg 10kg load cell

Features:
1.Aluminum Alloy;
2.Mainly used for crane scales, hopper scales, tensile testing etc.
Specification:
Rated Capacity(KG)2,5,10,20,30,50,100
Input Resistance(Ω)395±10
Rated Output(mV/V)2.0±10%
Output Resistance(Ω)350±5
Nonlinearity±0.03%F.S
Insulation Resistance(MΩ)≥2000
Hysteresis±0.02%F.S

Excitation Voltage5~12VDC
Repeatability±0.02%F.S
Compensated Temperature Range-10℃~+40℃
Creep(30minutes)±0.03%F.S
Operating Temperature Range-20℃~+60℃
Zero Balance±2.00%F.S
Safe Overload150%FS
Temperature Effect on Zero±0.05%FS/10℃
Ultimate Overload200%FS
Temperature Effect on Output±0.05%FS/10℃
Defend gradeIP65

Parameters:
Rated load:1t～20t / 2klb～40klb
Precison : C2
Temp. effect on span(%F.S/10℃): ±0.017
Comprehensive error(%F.S) : ±0.03
Temp. effect on zero(%F.S/10℃) : ±0.023
Rated output(mv/v) : 2.0±0.004
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.03
Use temp. range(℃ ) : -20～+55
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 350±5
Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP66
