150MPa Strain Range Pressure Sensor Measuring
US$ 100 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CSZ
Model Number:
SPT301
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
CSZ
Model Number
SPT301
ABSTRACT:
Designed for pressure measuring and controlling common type and civil products.
PARAMETERS:
Designed for pressure measuring and controlling common type and civil products.
PARAMETERS:
Capacitacity Range:0-1-150MPa
Comprehensive Precision: 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS
Output Signal:2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V
Use Temp Range::-10~200℃-400℃
Excitation Voltage: 10V (6~12)V;Transmitter=24V (9~36)V;Transmitter=15~36VInsulation Resistance: ≥2000MΩ,100VDC
Comprehensive Precision: 0.1%FS, 0.2%FS, 0.3%FS, 0.5%FS, 1.0%FS
Output Signal:2mV/V; 2.5mV/V; 3.3mV/V; 4~20mA; 0~5V; 1~5V; 0~10V
Use Temp Range::-10~200℃-400℃
Excitation Voltage: 10V (6~12)V;Transmitter=24V (9~36)V;Transmitter=15~36VInsulation Resistance: ≥2000MΩ,100VDC
Eletric Connection: 6 gilded pin / 5 pin
Thread connection:1/2-20UNF or Othe
Capacity(Noted by number)
MPressure Mearsure( P=Psi, B=Bar, M=MPa )
Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V )
Precision (%FS)( B=0.2, C=0.3, D=0.5,E=1.0 )
Thread Connection
Capacity(Noted by number)
MPressure Mearsure( P=Psi, B=Bar, M=MPa )
Output Signal (01=2mV/V, 02=2.5mV/V, 03=3.3mV/V, 04=4~20mA, 05=1~5V, 06=0~5V, 07=0~10V )
Precision (%FS)( B=0.2, C=0.3, D=0.5,E=1.0 )
Thread Connection
(F=M12×1,G=M14×1.5,H=1/2-20, L=M18×1.5,M=M22×1.5, N=M28×1.5, P=G3/4, Q=G3/8 )
Length of Rigid Stem( 2 =2.36“, 60mm,6=6”, 152mm)
Length of Flexible Tube(18=18“, 460mm,blank= none)
Thermcouple option (J, K, E, PT100 )
Electric connection(W=5pin, L=6pin )

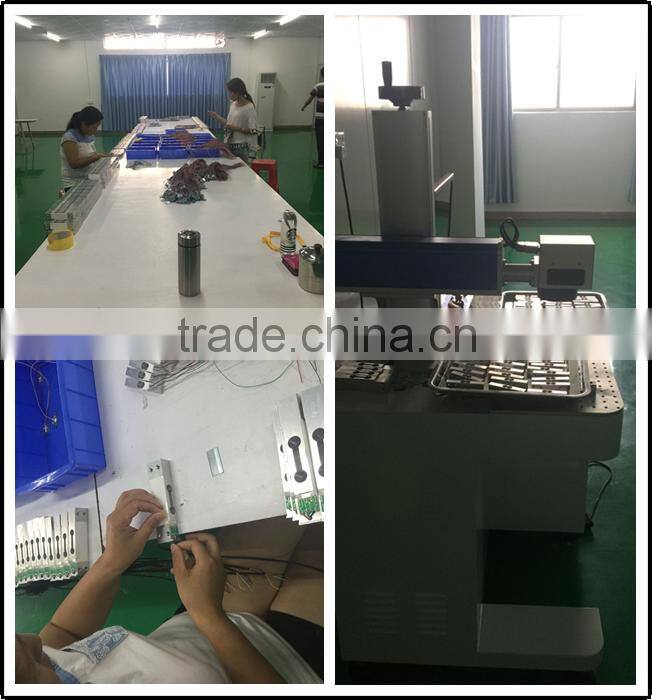

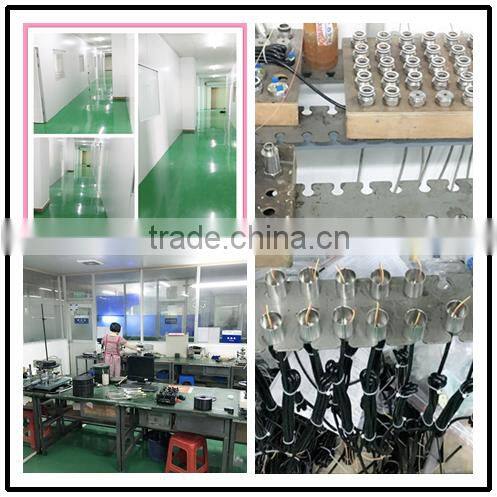

Pressure sensor work shop,our factory in DongGuan high precision low cost that We have a big strong professional engineer team to acceptable customized also we have experience in that over decade
Certificate

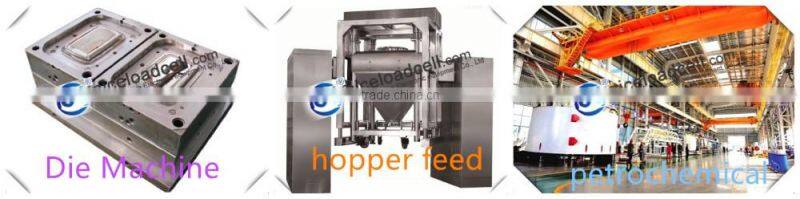

Apply to in those ways :
After-Sales
Accept special design?
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
Yes,we can be accept any special customized
How long for delivery days?
Samples:1-10DAYS
Big Quantity(10K-50K):30-45days
Did you have of gurantee period?
Yes,Within 1year the goods have any problems that you could be return to me revise it but freight cost is by customer
We have a best price and high precision.Welcome to your inquiry!
