Home > Products > FRP Profile > HIgh quality plastic profile for architecture
HIgh quality plastic profile for architecture
- 10000 Piece / Pieces per Month
- XINGANG TIANJIN
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | SWJY | Model Number: | SWJY-PP |
Application: | Construction | Surface Treatment: | Smooth | Technique: | Pultruded |
Dimensions: | Customizable |
Product Description
HIgh quality plastic profile for architecture

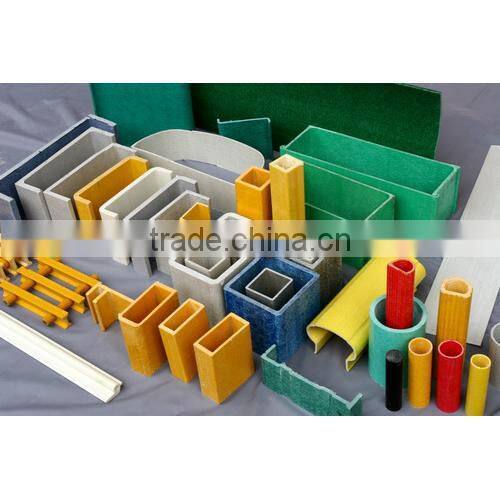

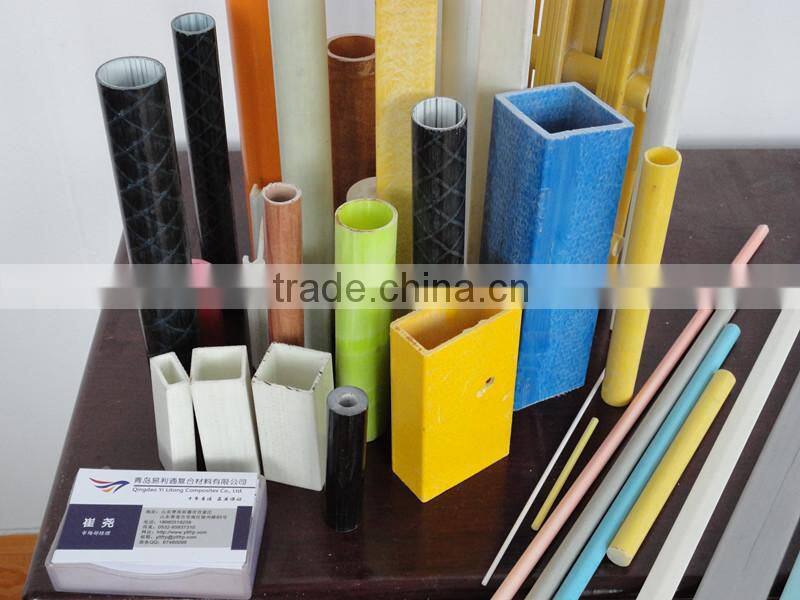

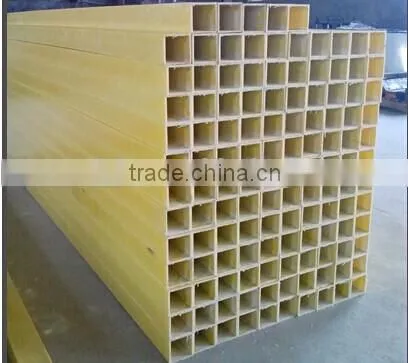

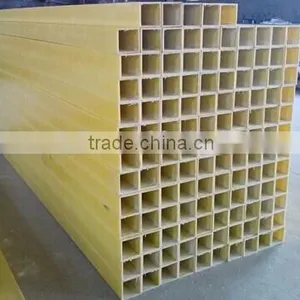

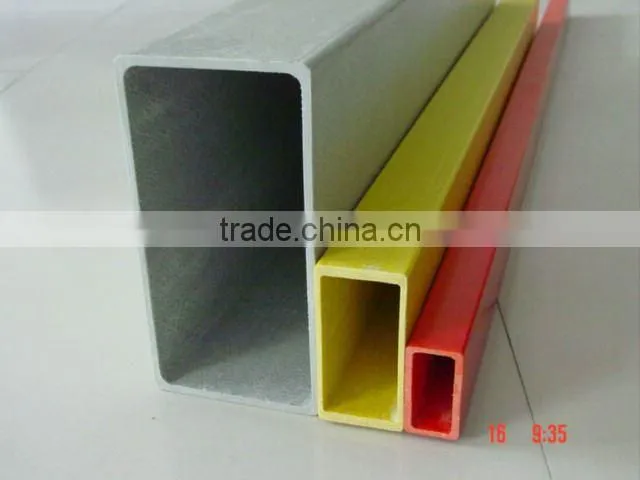

Fiberglass reinforced polymer (FRP) pultrusion profiles/ pultruded profiles / fiberglass reinforced plastic profileinclude round, square, rectangular tube; handrail, guardrail; grating, floor grid; channel; angle; rod and plate.
The major characteristic is as follows:
1, weathering resistant, aging resistant, water proof, rodent proof and corrosion preventive.
2, light weight , easy to shipment and easy installation.
3, high tensile strength
The physical property is as follows.
Property | Direction | Unit | Test method | Profiles | Rods |
Tensile Strength | (LW) | MPa | ASTM D638/GB1447-83 | 210-350 | 500-700 |
(CW) | MPa | 30-60 |
| ||
Tensile Modulus | (LW) | GPa | ASTM D638/GB1447-83 | 15-28 | 32-42 |
(CW) | GPa | 5-7 |
| ||
Flexural Strength | (LW) | MPa | ASTM D790/GB1449-83 | 210-390 | 600-900 |
(CW) | MPa | 60-100 |
| ||
Flexural Modulus | (LW) | GPa | ASTM D790/GB1449-83 | 15-24 | 32-42 |
(CW) | GPa | 5-7 |
| ||
Compressive Strength | (LW) | MPa | ASTM D695/GB1448-83 | 220-350 | 400-450 |
(CW) | MPa | 60-100 |
| ||
Compressive Modulus | (LW) | GPa | ASTM D695/GB1448-83 | 16-23 |
|
(CW) | GPa | 5-10 |
| ||
Short beam Shearing Strength | (LW) | MPa | ASTM D2344 | 25-35 |
|
Breaks Shearing Strength | (PF) | MPa | ASTM D732 | 38-50 | 38-55 |
Impact Strength | LW | KJ/mm2 | ASTM D256 | 150-250 |
|
Poisson Ratio | (LW) | mm/mm | ASTM D3039 | 0.3-0.4 |
|
(CW) | mm/mm | 0.15-0.25 |
| ||
Barcol Hardness |
| -- | ASTM D2583 | 40-50 | 50 |
Relative Density |
| -- | ASTM D792 | 1.7-1.9 | 1.85-1.95 |
Coefficient of Thermal expansion | (LW) | 10-6m/m/°C | ASTM D696/GB2572-82 | 4.5-8 | 3.0 |
Breakdown Strength | (PF) | KV/mm | ASTM D149/GB1408-78 | 7-8 |
|
(LW) | KV/mm | 1.4-1.6 |
various specification
If you want other size, please contact us
