Specifications
1.Electrical equipment power: 27kw2.Raw material width: 495mm
3.Finished width: 350---370mm
4.Material thickness:2-4mm

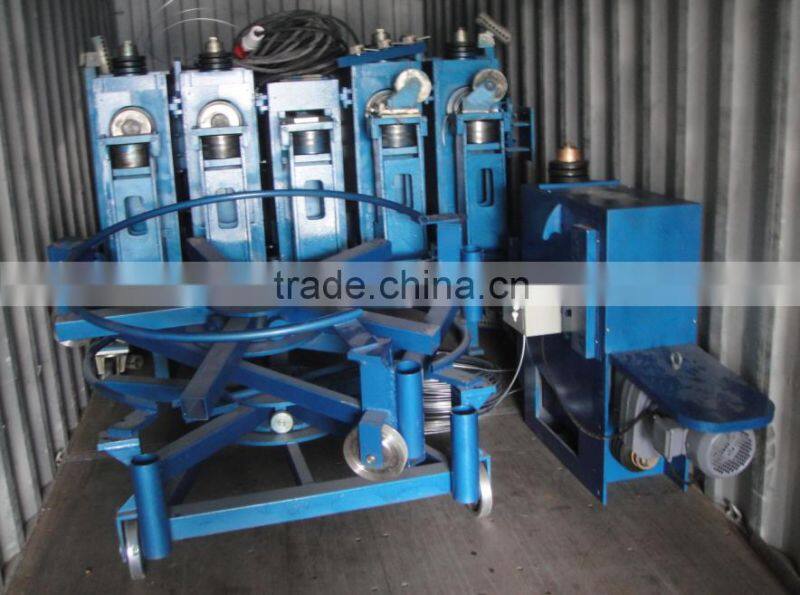

LIPP silo forming machine
Main technical parameter:
(1) Required thickness of raw material:
A,Galvanized sheet——2---4mm
B,Dark steel sheet——2---4mm
C,Chromated nickel steel sheet——2---3mm
D,Plastic coatings steel sheet——2---4mm
(2)Raw material width: 495mm
(3)Finished width: 350---370mm
(4)Diameter: 4m---30m

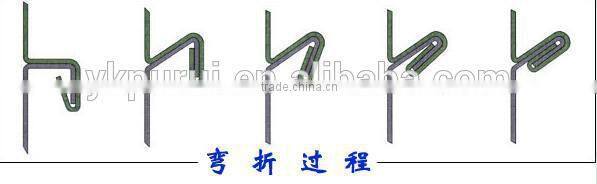

The diagram of the suturing part:
Bending 5 times to make the silo is tighter.

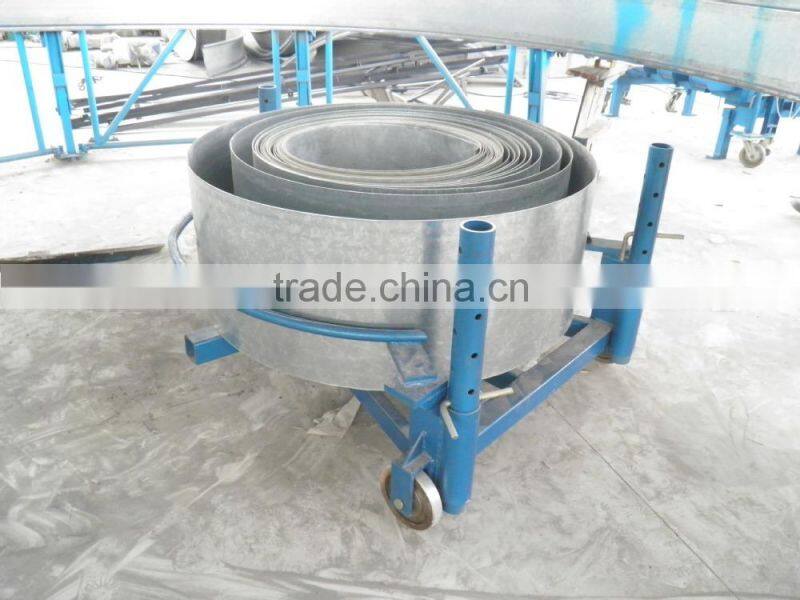

- Decoiler
Size: 1700x1500x900 (mm)
Weight: About 300kg
Application: moving steel coils that put on the decoiler, making steel coils can into forming machine successfully.

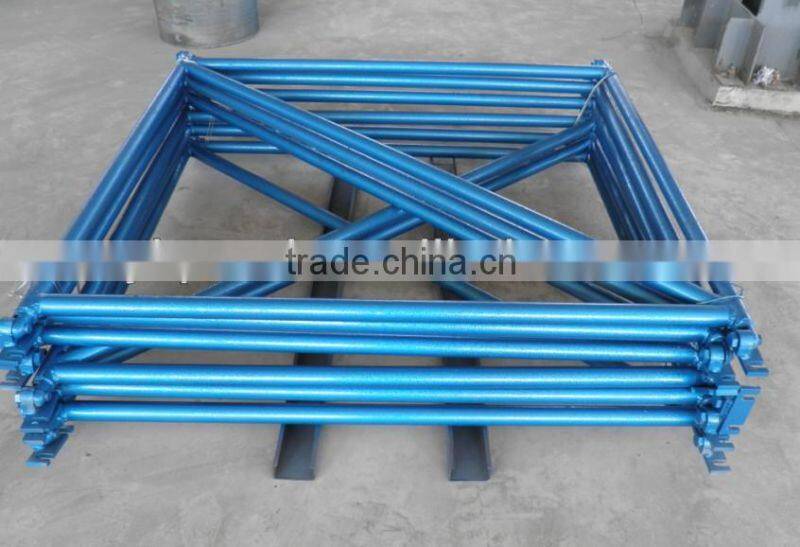

- Joint frame
Size: 1600x1600x1500 (mm)
Weight: About 100kg/pcs
Application: Joining the load bearing support, locking the required diameter of soil, making the load bearing support stable working.

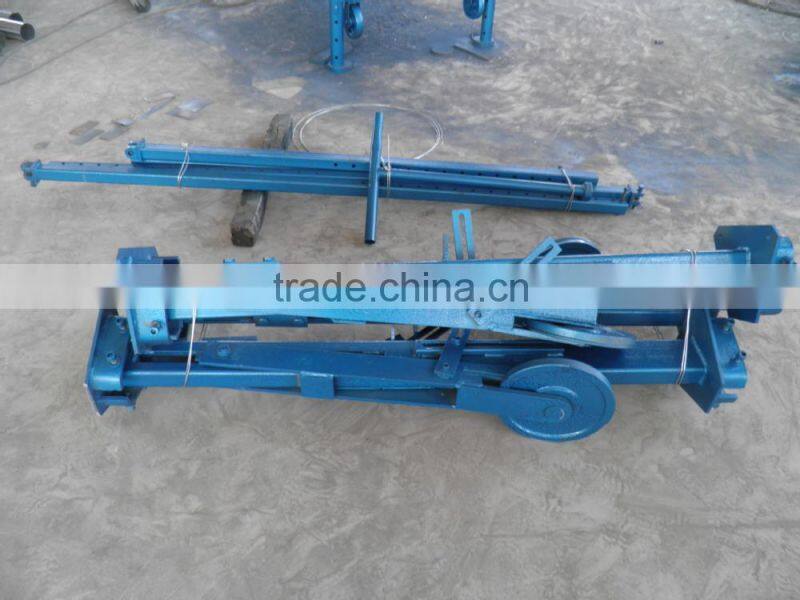

- Load bearing support:
Size: 1800x400x400 (mm)
Weight: About 50kg/pcs
Application: Given the right diameter of silo, support the spiral rising silo.
