Metal Bellow Mechanical Seal
USD $1 - $50
/ Unit
500 Units(Min.Order)
- 50000 Piece / Pieces per Month
- Ningbo/shanghai
- T/T D/P D/A
You May Like
-
M4-M16 304/201/316 Serrated Hex Flange Nuts
-
Zinc plated butterfly bolt and nut spring toggle fixings hollow cavity wall anchor
-
Stainless steel male female rivets screw sex bolts internal thread screw
-
CNC Lathe Turned Machining Solid Shaft pin
-
Copper Brass Precision Micro CNC Turning Parts, CNC Turned shaft pin copper parts
-
Made-to-order metal parts CNC machining center/precision CNC turned auto spare parts
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | TOTEL | Model Number: | EJ030 |
Product Description

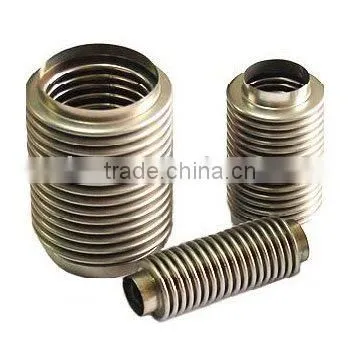

Metal Bellow Mechanical Seal , Metal Bellows Seal , Valve bellow
One unique feature of our bellows is the multi-layer and high pressure resistance that we use in the valve seal. The bellows are made of multi-layers of stainless steel, and the maximum could be seven layers which provide high flexibility and longer cycle life for the bellows and bellows assembly The bellows assembly are mainly used on shutoff valve , gate valve and regulating valve and the typical type of bellows assembly
Characteristic :
1. Application Range
The products could be used on bellows-type cut off valve, bellows-type gate valve and bellows-type regulating valve.
2. Nominal Diameter of Valve ( mm )
DN15~DN250
3. Nominal Pressure Class ( MPa )
PN1.6, PN2.5, PN4.0, PN6.4, PN10.0, PN14.0
The bellows are designed to withstand external pressure, and the design pressure class is one and a half times of that of nominal pressure class.
4. Operation Temperature
-196 °C ~300 °C
5.Movement
The design movement ( compression ) is larger than the minimum movement while turning on the valve .
6.Cycle Life
The cycle life is over 10000 cycles under nominal pressure and movement.
7.Material
SS304, SS316L, SS321
We could design and produce the bellows and bellows assemblies with flanges according to the requirement from the customers.
