Mosaic Terrazzo Metal Roof Tile Making Machine Price

Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-1
Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-2
Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-3
Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-4
Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-5
Mosaic Terrazzo Metal Roof Tile Making Machine Price thumbnail-6
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-1
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-2
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-3
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-4
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-5
Mosaic Terrazzo Metal Roof Tile Making Machine Price photo-6
US$ 19,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
PRO
Model Number:
PRO-24-183-1100
Contact Supplier Request Quote Chat Now
Yingkou Professional Roll Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name PRO
Model Number PRO-24-183-1100
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Technical Parameter of PRO-T24-183-1100

Production Name
Mosaic Terrazzo Metal Roof Tile Making Machine Price
Specification of Rolling Material
1250×(0.4-0.8)×L,Yield Strength ≤250MPa
Working Speed
12-15m/min
Roller Steps
16 Steps
Frame of Machine
Welded with 350H Beam Steel
Thickness of Wallboard
16mm
Roller Material
Adopts Superior 45# Forged Steel with Hard Chromium Plated
Shaft Material
Adopts Superior 45# Forged Steel Quenching and Tempering
Main Shaft Diameter
¢70 mm
Main Motor Power
5.5KW
Hydraulic Station Power
4.0KW
Hydraulic Station Pressure
8 -12MPa
Electric Control System
Adopts PLC
Machine Size
7500x1700x1400mm
Feeding Width
1250mm
Effective Width
1100mm
Rolling Thickness
0.3-0.8mm

Related Production

Model
Feeding Width
Effective Width
Thickness Coil
PRO-T25.5-185-740
1000mm
740mm
0.3-0.8mm
PRO-T45-253-760
1000mm
760mm
0.3-0.8mm
PRO-T24-200-800
1000mm
800mm
0.3-0.8mm
PRO-T37-166-830
1000mm
830mm
0.3-0.8mm
PRO-T52-169-845
1000mm
845mm
0.3-0.8mm
PRO-T29-185-925
1000mm
925mm
0.3-0.8mm
PRO-T39-190-950
1000mm
950mm
0.3-0.8mm
PRO-T40-200-1000
1200mm
1000mm
0.3-0.8mm
PRO-T40-257-1028
1250mm
1028mm
0.3-0.8mm
PRO-T24-183-1100
1250mm
1100mm
0.3-0.8mm
PRO-T25-210-1122
1200mm
1122mm
0.3-0.8mm
Detailed Images

Design Drawing

This is machine making tile plate type. If you want machine making orther plate type, please tell us and we have professional team to design for you!

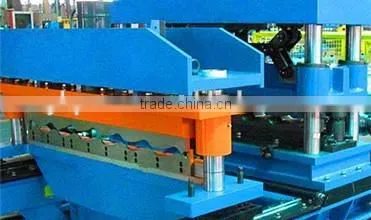

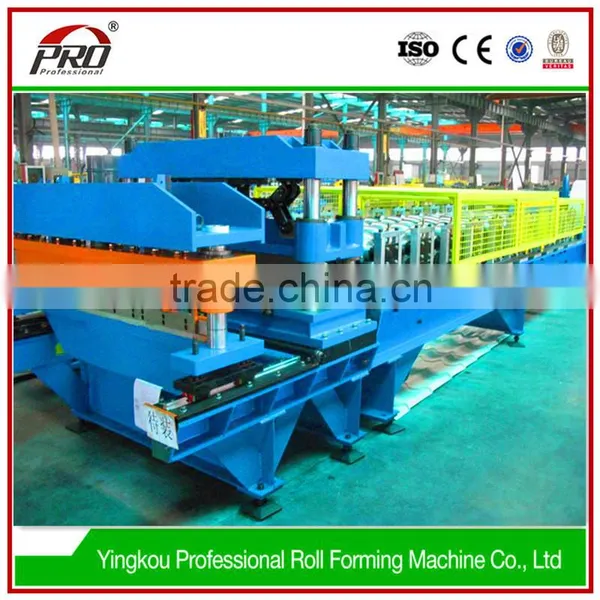

Rollers and Shafts Detail

Our roll forming machine’s rollers and shafts are connected with pin inside and screw outside, and with reinforcing design on both sides of rollers, which can fix the rollers and shafts tightly without deformation.

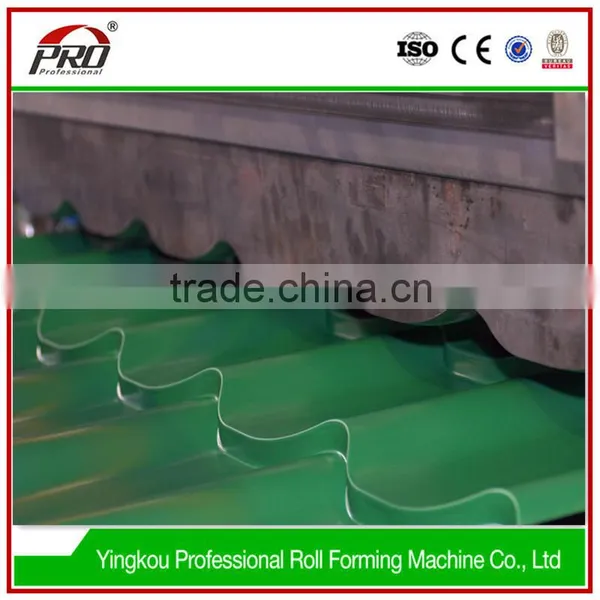

Cutting Detail

Cutting material is 12CrMov with heat treatment. It is the best and sharpest cutting material.

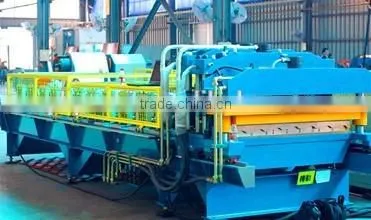

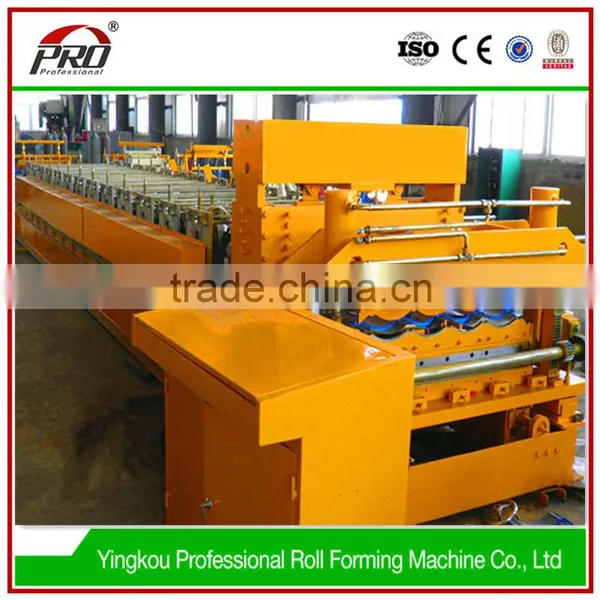

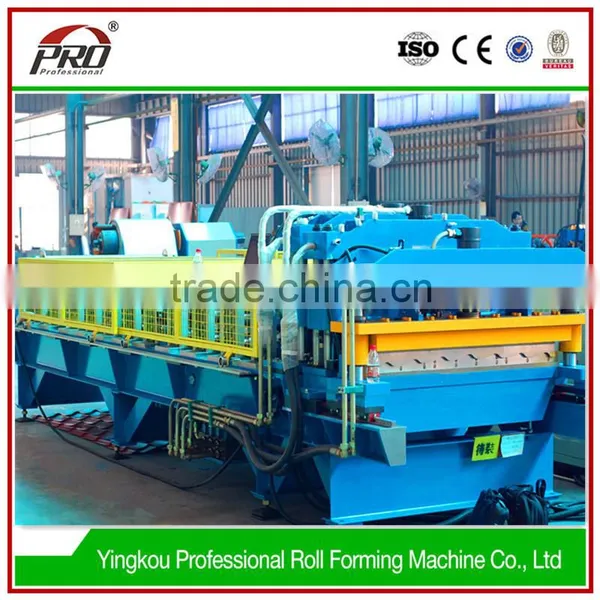

Machine Photo

This is mosaic terrazzo metal roof tile making machine. It has beautiful appearance and high quality generator and intelligent control system.

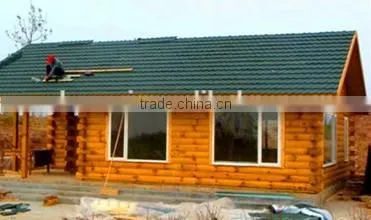

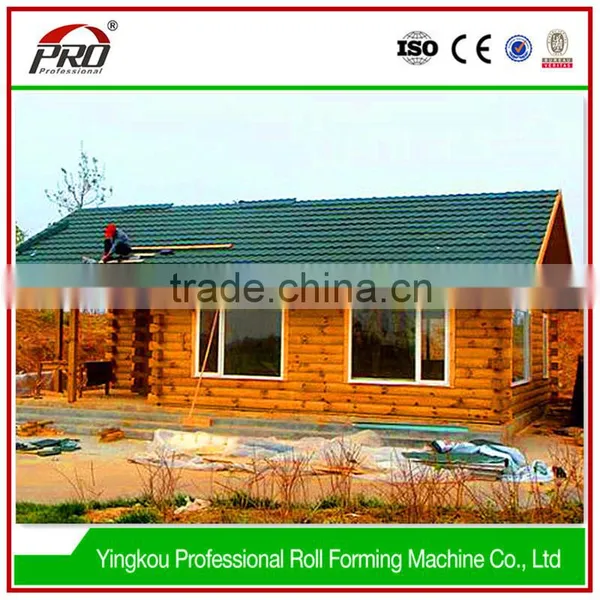

Project Photo

Our mosaic terrazzo metal roof tile making machine makes the tile roof project, Which is fast and convenient.

Our Service

Pre-Sales Service

* Inquiry and consult support.
* Design machine you want.
* View our Factory.
* Provide the technical support.

During the Production

* We will send photo of making machine process detail every once in a while.

After-Sales Service

* Training how to use machine.
* Training how to make project.
* Engineers available to service machinery overseas.

FAQ

Q: Can you  make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most  suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check  every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.

Payment
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery )

Our Company

This is appearance of our factory. Welcome to our factory!

This is the material processing workshop.

This is the product parts warehouse.

Packing & Delivery
Orther Product

Pro flat metal roof tile making machine.

Pro corrugated metal roof tile making machine.

Pro floor deck metal roof tile making machine.
