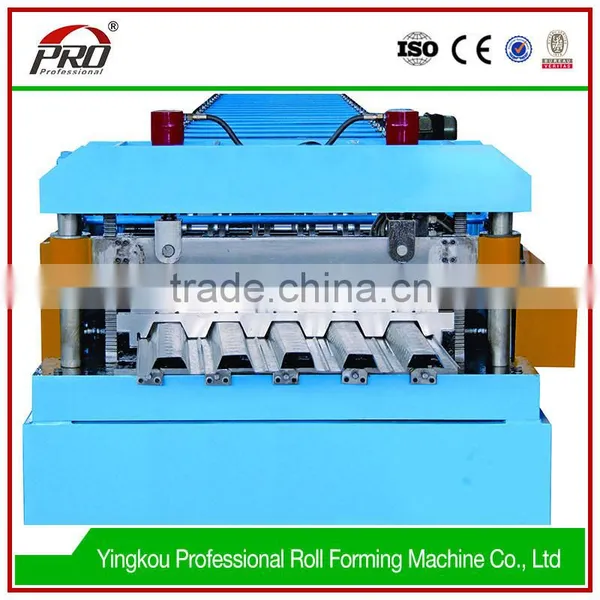

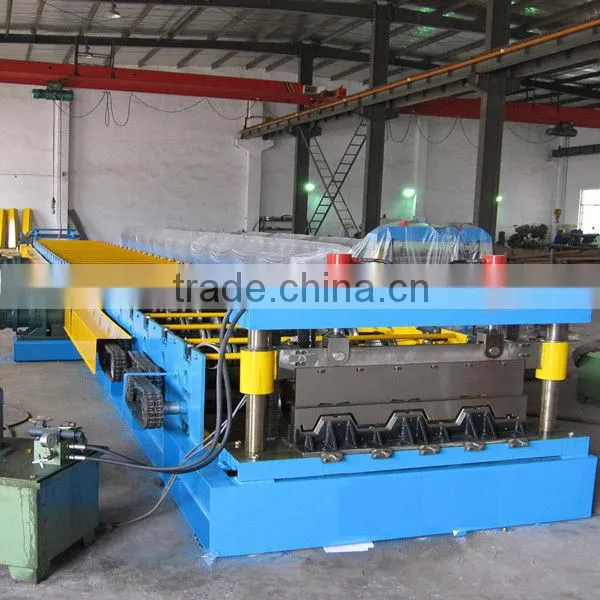

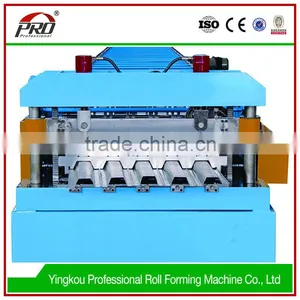

PRO steel decking forming machine/building machine
A. Main technical parameter:
a) Un-coiler:Passive open the coil,manual expansion
b) Capability of un-coiler:5T
c) Frame of machine: welding flange beam
d) Form of guide feeding: side roller type
e) Machine form: wallboard and chain transmission
f) The diameter of main shaft:Ø85mm
g) Chain: 16A single row
h) Power of main motor:22kw
i) Working speed:8-15 m/min
j) Roller station:28 steps
k) Material of roller:NO.45 steel forgings
l) The surface of rollercoating hard chromium: 0.05mm
m) Motor of punching and flanging:4kw
n) Power of hydraulic motor: 5.5kw
- Oil pump of hydraulic station:gear pump
p) Cutter: hydroforming shear
q) The material of cutting blade:Cr12
r) Quenching rigidity: HRC58-60°
s) Material thickness:0.8 -1.2mm
t) Feeding width:1000mm
u) Tolerance of length:±2mm
v) The type of transducer:Panasonic
w) PLC controller: Panasonic
C. Working process:
Passive open the coil→feeding panel with guide→roll forming→cutting with fixed length→output with supporter
D. Flow drawing:
E. Equipment including:
Passive de-coiler(5T),forming machine,hydraulic cutting,hydraulic station,PLC computer control cabinet,output table
F. Delivery Time:40 days
