PRO-600-350-arch roof roll forming machine

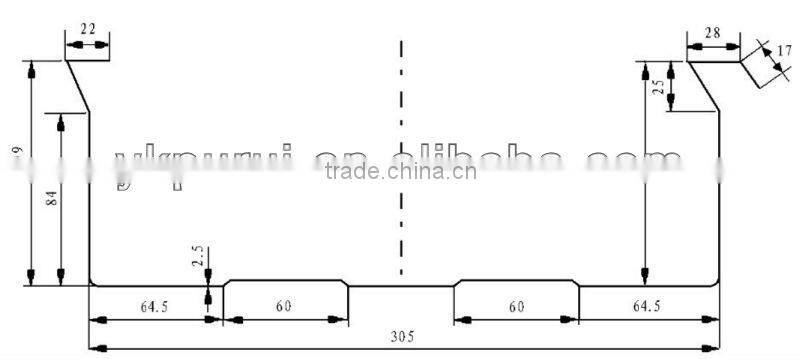

1. 120 profile of roll forming machine
2.Technical parameters
Technical parameter | |
Size | 8900mmX2200mmX2300mm |
Total Weight | About 10Ton |
Cutting Material | 12CrMoV, Heat treatment |
Cutting type | Mechanical Cutting Device |
Forming type | Roll-formed and length-set cutting |
Main Motor Power | 5.5KW |
Bending Power | 3.0KW+1.5KW |
Cutting Power | 3.0KW |
Seaming Power | 1.1KW+1.1KW |
Material of rollers | 45# steel, quenched HRC 55~65 |
Feeding width | 600mm |
Finished width | 305mm |
Operating factor of the panel | 50.8% |
Thickness of the Panel | 0.6-1.5mm |
Applicable Span | 4~28m |

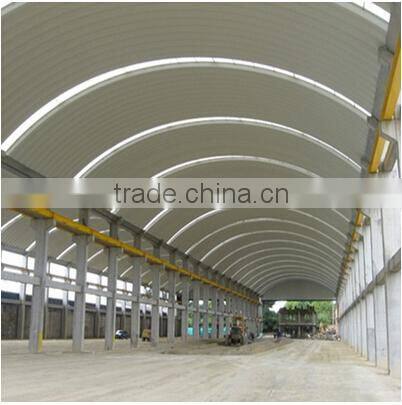

3.Arch roof project
600-305 Colored Steel Sheet Roll Forming Machine
4.Model list of PR Roll Forming Machine:
Model | Feeding width (mm) | Effective width (mm) | Depth of groove (mm) | utilization ratio | Thickness of steel coil (mm) | Largest span (m) |
PRO-600-300 | 600 | 300 | 100 | 50% | 0.6-1.5 | 30 |
PRO-600-305 | 600 | 305 | 109 | 50.8% | 0.6-1.5 | 28 |
PRO-914-400 | 914 | 400 | 210 | 43.7% | 0.6-1.5 | 40 |
PRO-914-610 | 914 | 610 | 203 | 66.7% | 0.6-1.5 | 38 |
PRO-914-650 | 914 | 650 | 181 | 71.1% | 0.6-1.5 | 26 |
PRO-914-700 | 914 | 700 | 123 | 76.5% | 0.6-1.5 | 22 |
PRO-914-750 | 914 | 750 | 180 | 82% | 0.6-1.5 | 14 |
PRO-1000-610 | 1000 | 610 | 243 | 61% | 0.6-1.5 | 42 |
PRO-1000-680 | 1000 | 680 | 223 | 68% | 0.6-1.5 | 38 |
PRO-1000-700 | 1000 | 700 | 175 | 70% | 0.6-1.5 | 30 |
PRO-1000-750 | 1000 | 750 | 138 | 75% | 0.6-1.5 | 24 |
PRO-1000-800 | 1000 | 800 | 114 | 80% | 0.6-1.5 | 18 |
PRO-1200-800 | 1200 | 800 | 265 | 67% | 0.6-1.5 | 40 |
PRO-1220-800 | 1220 | 800 | 355 | 66% | 0.6-1.5 | 42 |
PRO-1250-800 | 1250 | 800 | 320 | 64% | 0.6-1.5 | 45 |
5.Working flow:
Decoiler-----feeding------roll forming ------pressing----- cutting----output table
Welcome to contact us for any question.
