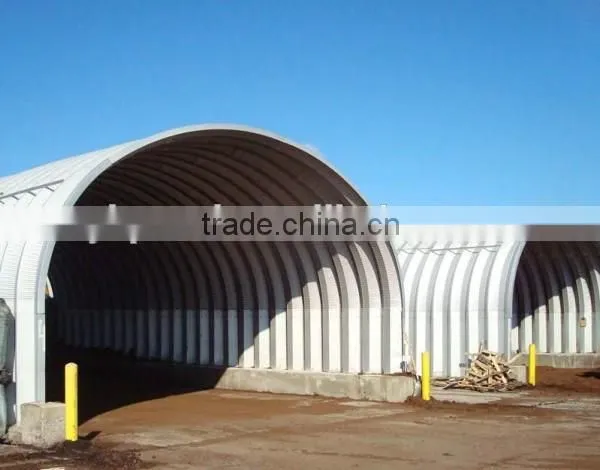

Automatic arch roof roll forming machine/screw joint type
Bending machine
- Dimension : 35000mm×1500mm×1500mm
- Weight :Around 20T
- Shearing material : 12CrMoV
- Shearing type : Mechanical
- Total motor power : 25KW
- Main motor : 7.5KW
- Decoiler motor : 3.0KW
- Leveling machine motor : 4.0KW
- Shearing machine motor : 3.0KW
- Hydraulic station power : 7.5KW
- Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating.
- Shaft Material : 45# high-quality steel, galvanized
- Stands of forming : 10
- Feeding width : 1000mm
- Effective width : 610mm
- Using rate : 61%
- Rolling thickness : 1.0-1.2mm
- Suitable Span : 4m-24m
- Decoiler : Load bearing: 8 T
- We can supply the accessories with the machine togegher,so you don`t need to purchase it again.
- We can send our engineer can go to your project area to help you to do the arch roof buildings.
- Guatantee period:13 months since the date of BL.
Our main products are: Steel-drum production line, Steel drum, arch sheet roll forming machine, Flat sheet roll forming machine, Polyurethane spray and perfusion equipment, Steel coil, etc.
We can also supply all the relevant equipments, accessories and raw material for steel structure projects. Meanwhile one efficient construction team is equipped to design and build various large steel structure projects for you at any time.
Upholding the company philosophy of "high quality casts the brand, good faith will create the future", with equipments of high quality and cost effective, we have already established favorable relationships and won a good reputation with clients from more than 60 countries in the world.
In the future, the company will continue to hold the philosophy, led by market demand, make products finest, optimize service, promote PRO brand image. Sincerely wish to strengthen business relations with friends all over the world, with your common development is our eternal pursuit.
