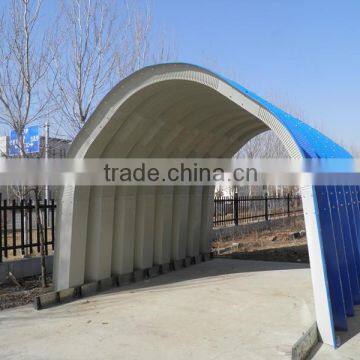

Multi-shape screw joint arch roof forming machine/roll forming machine
Model list of PR Roll Forming Machine:
Model |
Feeding width (mm) |
Effective width (mm) |
Depth of groove (mm) |
utilization ratio |
Thickness of steel coil (mm) |
Largest span (m) |
PRO-600-300 |
600 |
300 |
100 |
50% |
0.6-1.5 |
30 |
PRO-600-305 |
600 |
305 |
109 |
50.8% |
0.6-1.5 |
28 |
PRO-914-400 |
914 |
400 |
210 |
43.7% |
0.6-1.5 |
40 |
PRO-914-610 |
914 |
610 |
203 |
66.7% |
0.6-1.5 |
38 |
PRO-914-650 |
914 |
650 |
181 |
71.1% |
0.6-1.5 |
26 |
PRO-914-700 |
914 |
700 |
123 |
76.5% |
0.6-1.5 |
22 |
PRO-914-750 |
914 |
750 |
180 |
82% |
0.6-1.5 |
14 |
PRO-1000-610 |
1000 |
610 |
243 |
61% |
0.6-1.5 |
42 |
PRO-1000-680 |
1000 |
680 |
223 |
68% |
0.6-1.5 |
38 |
PRO-1000-700 |
1000 |
700 |
175 |
70% |
0.6-1.5 |
30 |
PRO-1000-750 |
1000 |
750 |
138 |
75% |
0.6-1.5 |
24 |
PRO-1000-800 |
1000 |
800 |
114 |
80% |
0.6-1.5 |
18 |
PRO-1200-800 |
1200 |
800 |
265 |
67% |
0.6-1.5 |
40 |
PRO-1220-800 |
1220 |
800 |
355 |
66% |
0.6-1.5 |
42 |
PRO-1250-800 |
1250 |
800 |
320 |
64% |
0.6-1.5 |
45 |
- 1. Dimension : 35000mm×1500mm×1500mm
- 2. Weight :Around 20T
- 3. Shearing material : 12CrMoV
- 4. Shearing type : Mechanical
- 5. Total motor power : 25KW
- 6. Main motor : 7.5KW
- 7. Decoiler motor : 3.0KW
- 8. Leveling machine motor : 4.0KW
- 9. Shearing machine motor : 3.0KW
- 10. Hydraulic station power : 7.5KW
- 11. Roller Material : 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating.
- 12. Shaft Material : 45# high-quality steel, galvanized
- 13. Stands of forming : 10
- 14. Feeding width : 1000mm
- 15. Effective width : 680mm
- 16. Using rate : 68%
- 17. Rolling thickness : 1.0-1.2mm
- 18. Suitable Span : 4m-24m
- 19. Decoiler : Load bearing: 8 T
Accessories is for free
Training is for free
We promise,we do
Please call or email to me to get more informaiton.
Mob.:0086-15940720058
Skype:ykbhjx
Our main products are: Steel-drum production line, Steel drum, arch sheet roll forming machine, Flat sheet roll forming machine, Polyurethane spray and perfusion equipment, Steel coil, etc.
We can also supply all the relevant equipments, accessories and raw material for steel structure projects. Meanwhile one efficient construction team is equipped to design and build various large steel structure projects for you at any time.
Upholding the company philosophy of "high quality casts the brand, good faith will create the future", with equipments of high quality and cost effective, we have already established favorable relationships and won a good reputation with clients from more than 60 countries in the world.
In the future, the company will continue to hold the philosophy, led by market demand, make products finest, optimize service, promote PRO brand image. Sincerely wish to strengthen business relations with friends all over the world, with your common development is our eternal pursuit.
