Shenzhen Uenergy Optoelectronic Limited: Shenzhen, Guangdong, China; Main products: LED tube light, LED panel light, LED down light

Home > Products > LED Tube > 2014 factory isolated driver 4 foot cool white ul led tube

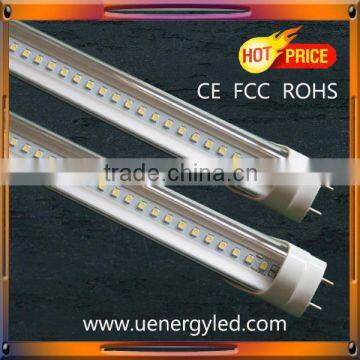

2014 factory isolated driver 4 foot cool white ul led tube

Name: 2014 factory isolated driver 4 foot cool white ul led tube
Brand: Uenergy
Availability: InStock

FOB Price

USD $1 - $8.98 / Piece

5 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen Hongkong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2835	Warranty(Years)	3
Input Voltage(V)	AC85-265V	Lamp Power(W)	18
Lamp Luminous Flux(lm)	1980	Lamp Luminous Efficiency(lm/w)	110
Color Temperature(CCT)	Other, 2800-7000K	Working Temperature(℃)	-30, +55
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum Alloy
IP Rating	IP44	Certification	CE, EMC, LVD
Place of Origin	Guangdong, China	Brand Name	Uenergy
Model Number	Other, UE-T8-1.2M-18W

Product Description

Specifications

ul led tube
(1) 450mm-2400mm size
(2) High brightness chip SMD2835
(3) Factory hot price
(4) CE ROHS FCC

2014 factory isolated driver 4 foot cool white ul led tube

Technical parameters

Product name:	T8 LED Tube
Model:	UE-T8-1.2M-18W
Watt:	18W
Base Type:	G13
Size:	Φ26*1200mm
Shell Material:	Aluminum body + PC cover
PC cover:	Clear \| Frosted \| Stripped
LED source:	High lumen 0.2W SMD2835
LED QTY:	120pcs
Input Voltage:	AC85-265V
Lifespan:	> 50000 hours
Color temperature	2800-7000K
CRI:	75
Power factor	>0.95
Beam angle:	180 degree
Certification:	CE&ROHS, LVD EMC,FCC
Warranty:	3 years warranty

Product Features

(1) Real sufficient LED source quantity for each tube, making sure the uniformity of light output;

(2) High quality LED source loaded on good aluminum PCB board for led tube;

(3) High-purity and thick aluminum alloy body, guaranteeing the good heat dissipation of led tube;

(4) High efficiency constant current power supply with PF > 0.95;

(5) Adopt cover material with more than 90% transmittance, which guarantee high lumen of led tube;

Aging test of led tube

At least 48 hours aging test in closed high temperature environment before package, the performance of each tube can be inspected very well before ship.

Delivery and package details

Sample delivery:	5 - 7 days
Mass production delivery:	7 - 30 days depends on order quantity
Package:	PE Foam + Standard export carton
One carton:	30pcs into one carton
Carton size:	1280240270mm
Gross weight:	17KG
Shipping method:	Express delivery, air shipping or ocean shipping, we will suggest you the most appropriate and economical shipping method

Equipments

(1) SMT and Reflow soldering Machine;

(2) Integrating Sphere for checking the color temperature, color render index, wattage, luminous flux, power factor and so on of the led tube light, making sure the tubes are made according to customer's request exactly;

(3) Goniphotometers for obtaining the light distribution curve of lamps.

Series Products

SMD2835 T8 LED tube series
Item No.	Product Size	Power	Base	Input Volatge	LED		Color Temp	Body	PC cover
Item No.	Product Size	Power	Base	Input Volatge	QTY	Type	Color Temp	Body	PC cover
UE-T8-0.6M-10W	600mm	10W	G13	85-265VAC	60pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-0.9M-14W	900mm	14W	G13	85-265VAC	92pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-1.2M-16W	1200mm	16W	G13	85-265VAC	96pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-1.2M-18W	1200mm	18W	G13	85-265VAC	120pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-1.2M-20W	1200mm	20W	G13	85-265VAC	120pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-1.5M-22W	1500mm	22W	G13	85-265VAC	144pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-1.8M-28W	1800mm	28W	G13	85-265VAC	192pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted
UE-T8-2.4M-36W	2400mm	36W	G13	85-265VAC	240pcs	SMD2835 single 0.2W	CW/NW/WW	Aluminum Body	Clear/Frosted

We do have led tube Compatible with ballast

Different type of led tube for your choice

Certificate(EMC/LVD/FCC/ROHS)

Office and workshop

Company profile

ShenZhen Uenergy Optoelectronic Limited established in 2007, locate in Shenzhen, China --- the key LED insusty sites. We are a modern manufacturer with high ability to design and develop LED products,own advanced production line, powerful technical team and production team, all of our products adpot excellent material and excesior productionprocess, which guarantee the good quality very well.

Our service

1. Our products can be made according to your requirement;

2. Excellent quality and reasonable price to provide;

3. We do quotation within 24 hours and welcome your any inquiry at any time;

4. More details please call or email to me directly.

After-sales service

1. Customers send us details about the damage of goods, such as pictures or video;

2. Damage is reported to engineering and QC department by sales department;

3. Possible reasons of damage and best solutions are suggested to customers;

4. Maintenance or new components or new tubes free of charge to customers within warranty.

Warmly welcome to your inquiry~
