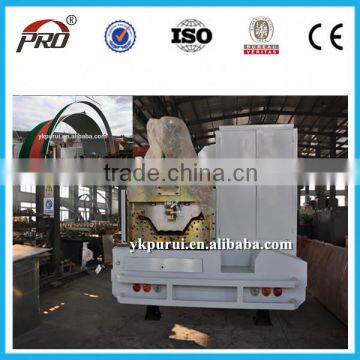

China Arch Roof Steel Roll Forming Machine

FOB Price

US$ 25,000 - 28,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	PRO
Model Number	PRO914-610/PROABMUBM240		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

China Arch Roof Steel Roll Forming Machine

Technical Parameter of BH-914-610
Dimension	11690mm X 2230mm X 2300mm (Double axles & 8 tires)
Total Weight	About 10 Ton
Bending Leaf	10mm thickness, processed by CNC
Cutting blade	12CrMoV material, Heat treatment
Cutting type	Mechanical Cutting
Forming type	Roll-formed and length-set cutting
Roller Material	45# high-quality steel, quenched HRC 55~65, hard chrome plating
Shaft Material	45# high-quality steel, galvanized
Bearing	Made in Harbin
Stand of molding	13+1
Suitable Span	6~38m
De-coiler	Inner-diameter of coil : 450mm ~ 650mm
	Max width of coil : 914mm ~ 934mm
Load	10Ton

Detailed Images

There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.

Arch roof machine includes 20 more wider rollers than

other supplier’s machine, which can make the

appearance of finished arch more beautiful.

Arch roof machine’s rollers and shafts are connected with pin inside and screw outside, and with reinforcing

design on both sides of rollers, which can fix the rollers

and shafts tightly without deformation.

Adopt car rear axle as the axle of machine, with size of

825-16 tires, can load more and has better impact

resistance and damping effect.

10mm thickness smooth impeller, produced by CNC machining center.

Cutting material: Cr12 MoV, best and sharpest cutting material

Chassis : Raw material is from CHINA An Steel Factory. One whole steel bar without any joint can keep mobile machine without deformation.

The thickness of side plate is 20mm.

There is hand wheel with scale in bending part, for span height adjustment.

Accessories of BH-914-610:(FOR FREE)
Name	Amount	Usage
Manual De-coiler	1	Coil support & De-coil
Seaming machine	2	Assemble the finished arches
Run out table	20	Sheet support
Leg of run out table	19	Support run out table
Small leg of run out table	48	Adjust the height of run out table
Fastening screw for leg	58	Fastening leg
Side support	10	Sheet support
Suspender	3	Lifting
Pin of suspender	2	Connect the suspender
Hanger	8	Lifting
Clamp	4	Bite finished arches
Bearing（208#）	4	Drive the rollers
Driving chain	3（run)	Roll the gears
Chain link	3	Link the chain
Half section	3	Link the chain
Super plier	1	Bite finished arches
Metal scissor	1	For cutting
Wrench	1	For set screw
Crank handle	2	Adjust height of landing leg
Travel switch	1(suit)	Measure length for cut-to-length
VCD	1	Showing how to operate the machine Showing how to make project

Packing & Delivery

Naked in FCL 40HQ container

Certifications

Our Company

YingKou Professional Roll Forming Machine Co., Ltd. main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,

Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,MSBM Project,

Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer

Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,

Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,

Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,

Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,

SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.

Our Service

Q: Do you have longlife after-sales service support?

A: Yes, our machine warranty period is 2 years, and support lifelong service.

B:We can offer 24 hours line service.

FAQ

Q: Are You the factory or trade company?

A:We are the factory,found in 2000,

Q: Can you make the machine according to my demand?

A: Yes. we have professional team and development personnel can plan to the suitable designs you need.

Q:What's the MOQ?

A:One set, more should be discount.

Q:What's the type of payment?

A: 30% T/T in advance,70% T/T before shipment
