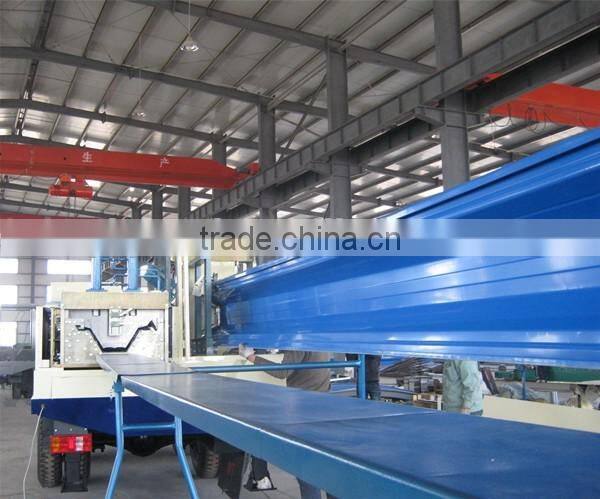

PRO-600-305 no-girder arch roof forming machine/PRO120 arch sheet building machine
Technical Parameter of PRO-600-305 no-girder arch roof forming machine/PRO120 arch sheet building machine
Dimension : 8900mm X 2230mm X 2300mm (Single axle & 4 tires)
Total Weight : About 10Ton
Bending Leaf : 10mm thickness, processed by CNC
Cutting blade : 12CrMoV material, Heat treatment
Cutting type : Mechanical Cutting
Forming type: Roll-formed and length-set cutting.
Total motor power : 16.5KW
Main Motor Power : 7.5KW
Bending Power : 3.0KW+1.5KWx2
Cutting Power : 3.0KW
Seaming Power: 1.1KW+1.1KW
Roller Material : 45# high-quality steel, quenched HRC 55~65, hard chrome plating.
Shaft Material : 45# high-quality steel, galvanized
Bearing : Made in Harbin
Stand of molding : 13+1
Width of steel sheet:
Feeding width : 600mm
Effective width :305mm
Using rate :51%
Rolling Thickness : 0.8-1.5mm
Working Speed : Forming Part : 15m/min
Bending Part: 13m/min
Seaming : 16m/min
Suitable Span : 6~28m
De-coiler : Inner-diameter of coil : 450mm ~ 650mm,
Max width of coil : 600mm ~ 620mm Load : 10Ton
