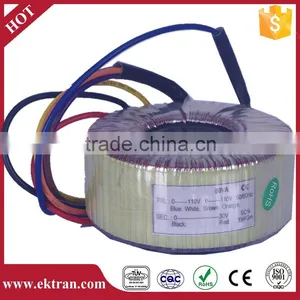

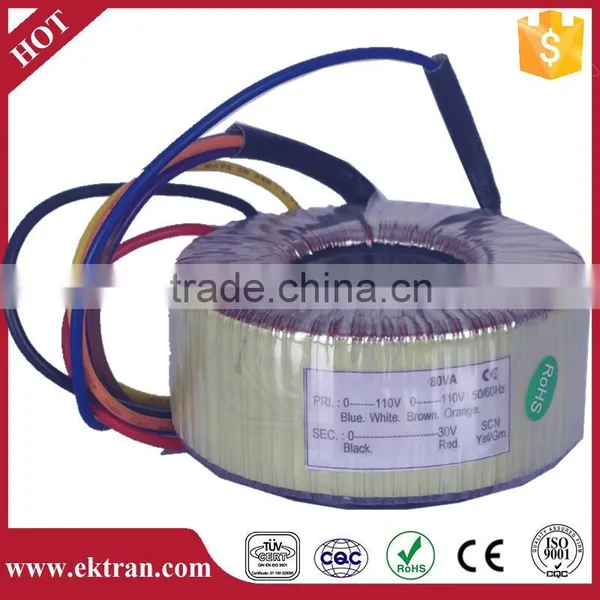

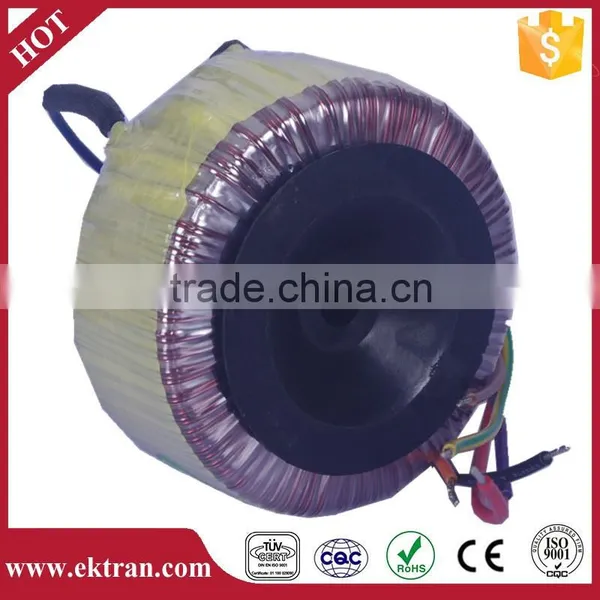

Step Up Electrical Power Transformer For Underwater Light

FOB Price

USD $5 - $70 / Piece

100 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port FOSHAN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	ECKO
Model Number	Power Transformer	Usage	Audio
Phase	Single	Coil Structure	Toroidal
Coil Number	Autotransformer

Product Description

Step Up Electrical Power Transformer For Underwater Light

(If you need customized design,please click here)

Specification:

·Power rating 10W~25kw

·Primary Customized,AC 110V,115V, 120V,

127V,220V,230V, 240V etc,50HZ/60HZ

·Secondary Customized,AC 12V,24V,36V,

48V,120V,240V etc

·Power factor 0.9 to 0.98

·Efficiency 90%-99%

·Voltage regulation 16-1.6%

·Output no-load loss 0.5-10W

·Temperature rise ≤65°C

Feature:

·Smaller in size

·Cost effective

·Easy to mount

·High efficiency

·Low leakage flux

·Low hum noise

·Low stray field

·Lower off-load power consumption

Mounting (2 kinds):

·Parts for mounting supplied(rubber mats, screws and nuts)

·Central proxy resin encapsulation and drilling

Technical parameters

Rated Power(VA)	Voltage Regulation (%)	Efficiency (%)	Dimension(mm)		Weight (Kg)
Rated Power(VA)	Voltage Regulation (%)	Efficiency (%)	Height	Diameter	Weight (Kg)
30	16	83	30	80	0.6
100	11	88	42	100	1.3
150	7.3	90	45	115	1.85
200	6.2	91	53	123	2.3
250	5.6	92	53	128	2.6
300	5.3	93	55	135	3
400	4.6	94	60	140	3.8
500	4.3	95	66	146	4.5
800	4	95	85	160	7
1000	3.8	96	90	165	8.5
1200	3.3	96	95	168	9
1500	3	96	100	173	9.5
2000	2.9	96	110	183	13
4000	2.2	97	135	245	23
6000	2	98	155	285	33
10000	1.8	98	185	335	49
15000	1.7	99	205	375	69
20000	1.6	99	235	415	95
25000	1.6	99	245	435	115

The above parameter is only for your reference, customer-made is subject to customer’s request.

We are able to manufacture the transformer which power is below 25KVA.
