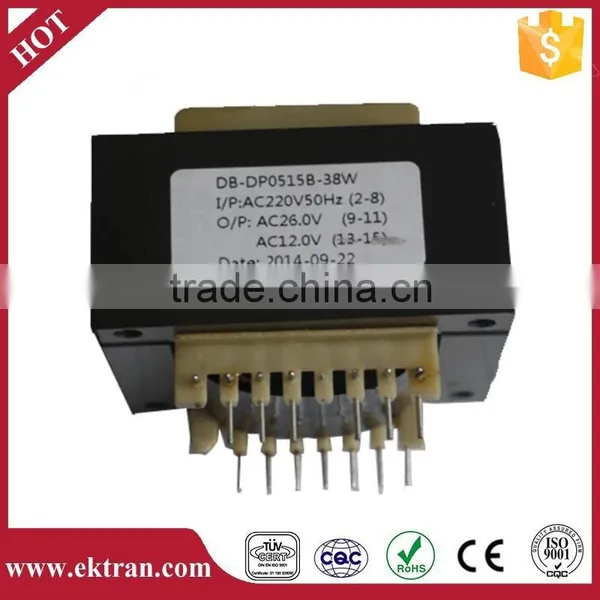

Ei pcb mounting voltage transformer
USD $1 - $50
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Foshan/Guangzhou
- L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Ecko | Model Number: | OEM |
| Usage: | Power | Phase: | Single | Coil Structure: | Other, Square type |
| Coil Number: | Other, Customized |
Product Description
| |
Production Details
Ei pcb mounting voltage transformer Data Sheet Selection
| Model | Specification | A | B | C | D | E | F | G | Power(W) |
| DB-EI28 | EI-28x12 | 28 | 23.5 | 23.5 | 20 | 5 | 5 | 0.8 | 1 |
| EI-28x15 | 28 | 23.5 | 26.5 | 20 | 5 | 5 | 0.8 | 1.5 | |
| EI-28x18 | 28 | 23.5 | 29.5 | 20 | 5 | 5 | 0.8 | 2 | |
| DB-EI35 | EI-35x10 | 35 | 29.5 | 25.5 | 21.5 | 5 | 5 | 0.8 | 1 |
| EI-35x15 | 35 | 29.5 | 29 | 21 | 5 | 5 | 0.8 | 2.5 | |
| EI-35x18 | 35 | 29.5 | 32.5 | 21.5 | 5 | 5 | 0.8 | 3 | |
| DB-EI41 | EI-41x16 | 41 | 34.5 | 31 | 22.5 | 5 | 5 | 0.8 | 4.5 |
| EI-41x20 | 41 | 34.5 | 34.5 | 27 | 5 | 5 | 0.8 | 6 | |
| EI-41x26 | 41 | 34.5 | 42.5 | 23 | 5.0/7.5 | 5 | 0.8 | 9 | |
| DB-EI48 | EI-48x16 | 48 | 40 | 33.5 | 29.5 | 7.5 | 5 | 1 | 6 |
| EI-48x20 | 48 | 40 | 37.5 | 29.5 | 7.5 | 5 | 1 | 10 | |
| EI-48x24 | 48 | 40 | 41.5 | 29.5 | 7.5 | 5 | 1 | 12 | |
| EI-48x30 | 48 | 40 | 46 | 29.5 | 7.5 | 5 | 1 | 18 | |
| DB-EI57 | EI-57x20 | 57 | 47.5 | 40 | 37 | 5 | 5 | 1 | 12 |
| EI-57x26 | 57 | 47.5 | 45.5 | 33 | 7.6 | 5 | 1 | 20 | |
| EI-57x30 | 57 | 47.5 | 50.5 | 32 | 5 | 5 | 1 | 28 | |
| DB-EI66 | EI-66x25 | 66 | 55 | 48 | 38.5 | 5 | 5 | 1 | 25 |
| EI-66x35 | 66 | 55 | 58.5 | 35 | 5 | 5 | 1 | 50 | |
| DB-EI76 | EI-76x20 | 76 | 63.5 | 44 | 46 | 7.5 | 5 | 1.2 | 22 |
| EI-76x32 | 76 | 63.5 | 65.5 | 40 | 7.5 | 5 | 1.2 | 52 | |
| DB-EI86 | EI-86x44 | 86 | 72 | 75 | 48.5 | 7.5 | 5 | 1.2 | 120 |
| EI-86x60 | 86 | 72 | 98.5 | 54 | 7.5 | 5 | 1.2 | 200 |
*The above parameter is only for reference as typical date, customized are welcomed.
*The above parameter is only for reference as typical date, customized are welcomed.
