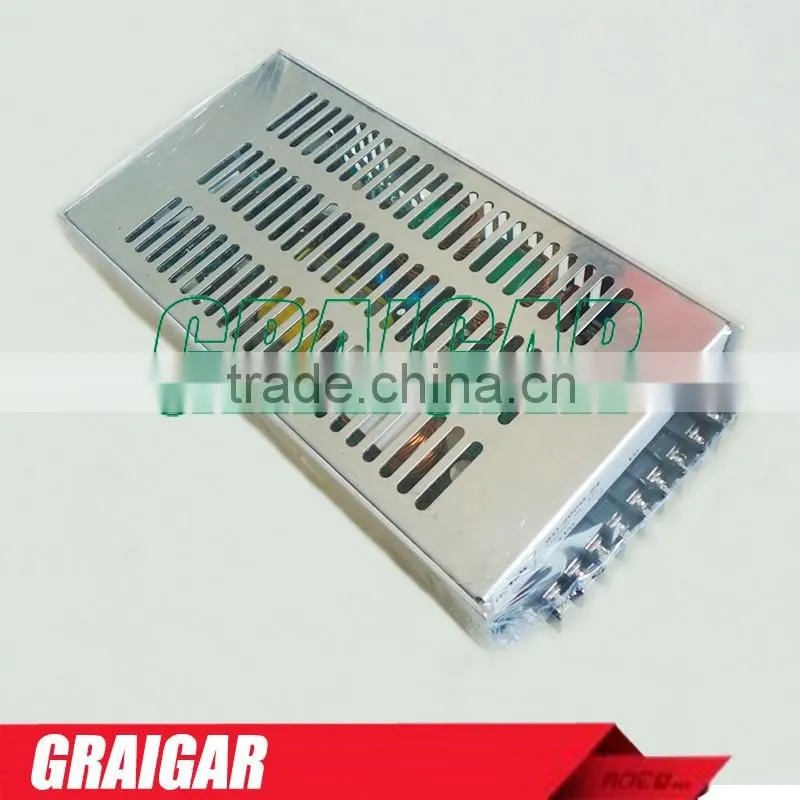

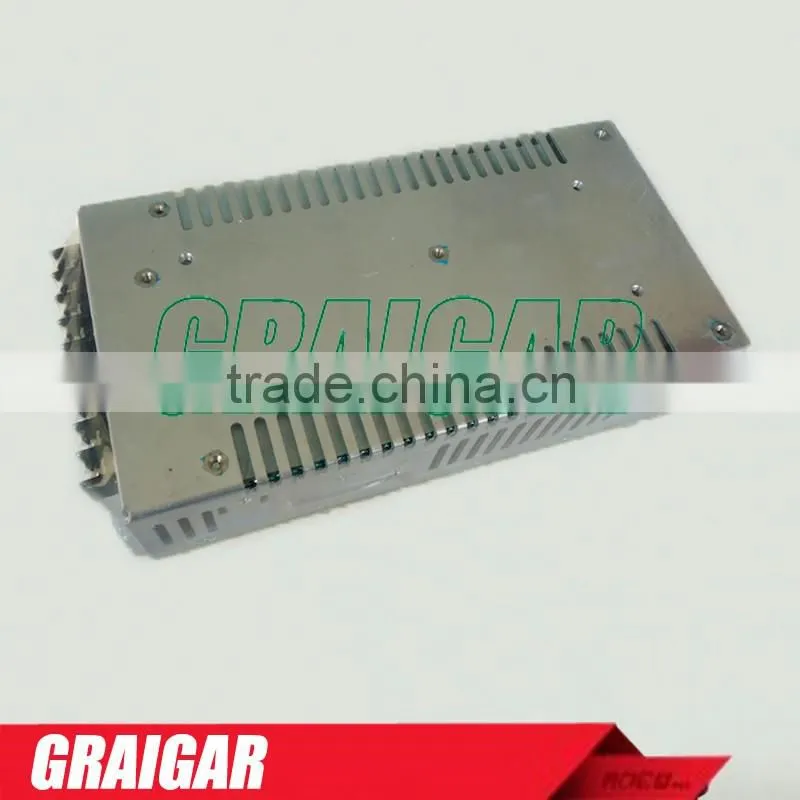

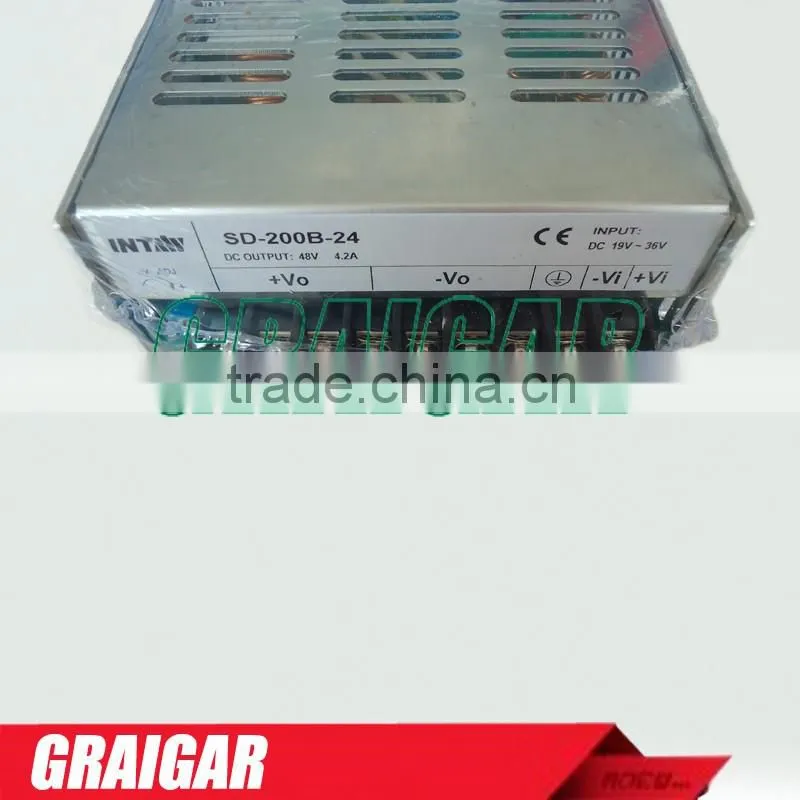

SD-200B - 200W DC-DC Converter Electrical Instruments 12V 24V 48V Single Output
Features:
- DC DC Converter 24V to 48V
- 2:1 wide input range
- Protections: Protections: Short circuit / Overload / Over voltage / Over temperature
- 1500VAC I/O isolation
- Cooling by free air convection
- 100% full load burn-in test
- 24V and 48V input voltage design refer to LVD
- 2 years warranty
| MODEL | SD-200B-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 4.2A | |
| CURRENT RANGE | 0 ~4.20A | |
| RATED POWER | 201.6W | |
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 43 ~ 53VDC | |
| VOLTAGE TOLERANCE Note.3 | ±1.0 % | |
| LINE REGULATION | ±0.5 % | |
| LOAD REGULATION | ±1.0 % | |
| SETUP, RISE TIME | 300ms, 50ms at full load | |
| INPUT | VOLTAGE RANGE |
B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~144VDC |
| EFFICIENCY (Typ.) | 86% | |
| DC CURRENT(Typ.) | 10.4A/24V | |
| INRUSH CURRENT (Typ.) | C:45A/48VDC D:45A/96VDC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
|
Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 53 ~ 65V | |
|
Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE |
Shut down o/p voltage, recovers automatically after temperature goes down |
|

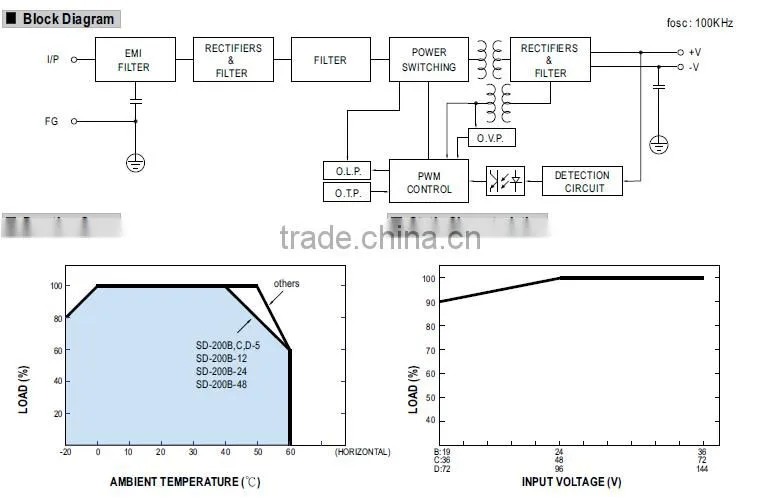

| ENVIRONMENT | WORKING TEMP. | -20~ +60°C (Refer to derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes |
|
| SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
IEC60950-1 approved (for SD-200C-24 type only), IEC60950-1 CB approved by TUV (for D type only) |
| WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
|
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
|
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B | |
| EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,6,8 , light industry level, criteria A |
|
| OTHERS | MTBF | 218.2K hrs min. MIL-HDBK-217F (25°C ) |

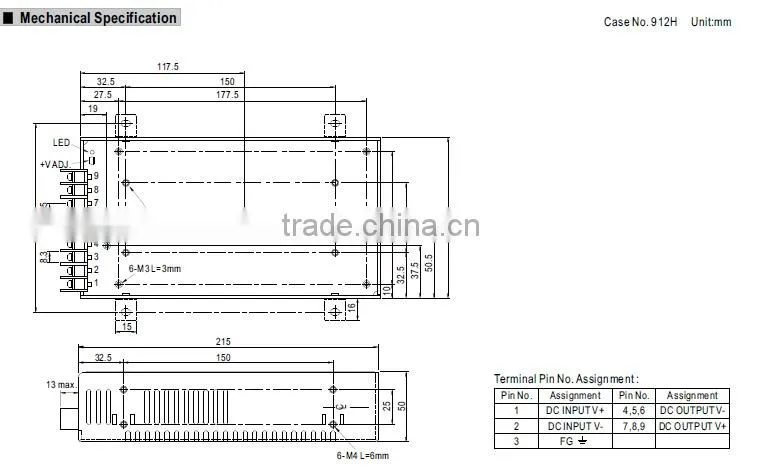

| DIMENSION | 215*115*50mm (L*W*H) | |

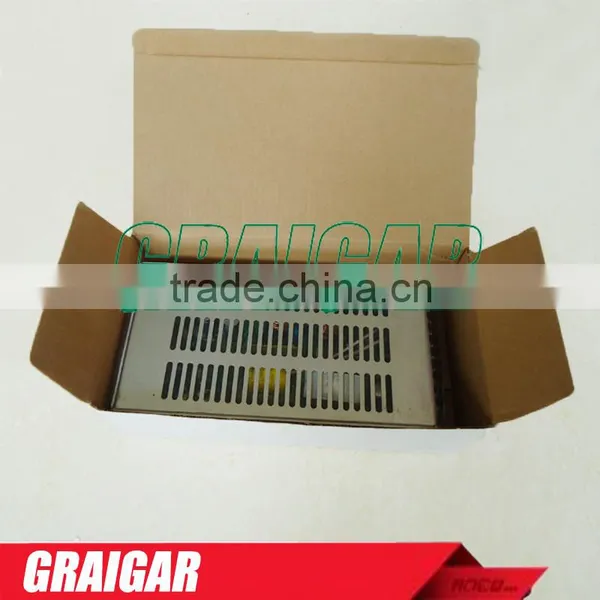

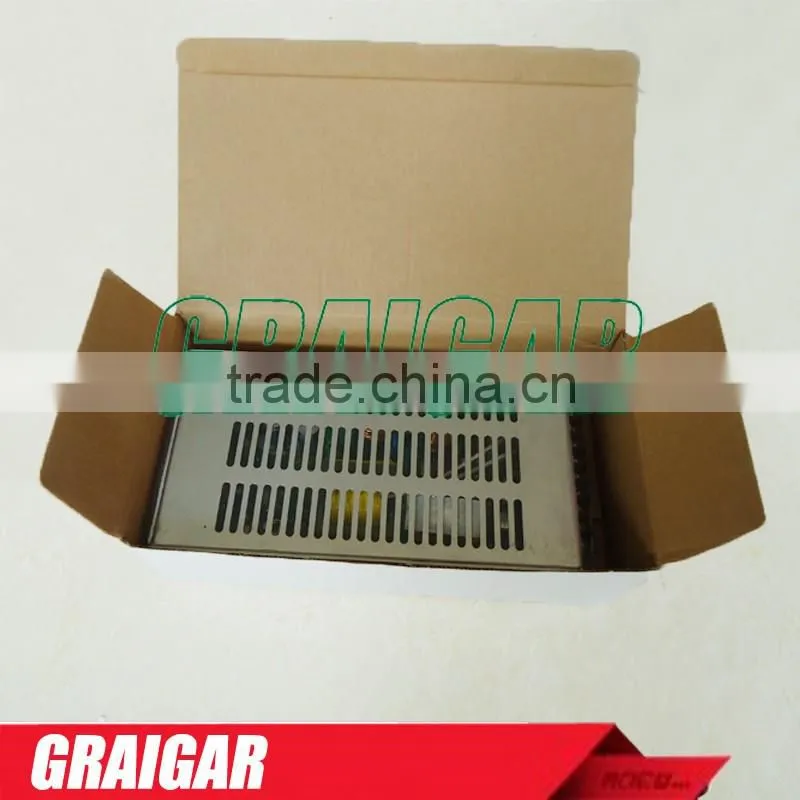

| PACKING | 1.1Kg; 12pcs/14.4Kg/0.92CUFT | |
| NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. a final equipment. The final equipment must be re-confirmed that it still meets EMC directive. |
|
