step down electrical current ac adaptor
|
Specification: ·Power rating 10W~25kw ·Primary Customized,AC 110V,115V, 120V, 127V,220V,230V, 240V etc,50HZ/60HZ ·Secondary Customized,AC 12V,24V,36V, 48V,120V,240V etc ·Power factor 0.9 to 0.98 ·Efficiency 90%-99% ·Voltage regulation 16-1.6% ·Output no-load loss 0.5-10W ·Temperature rise ≤65°C

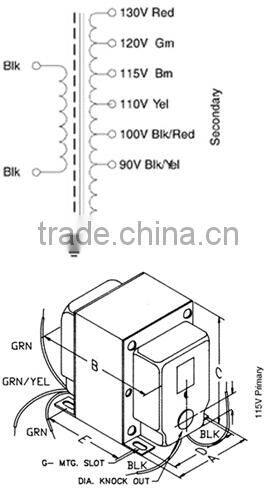

Feature: · Primary 115VAC, 60 Hz. · Secondary taps @ 90, 100, 110, 115, 120 & 130VAC · Electrostatic shield between primary & secondary · Connection by flexible leads, 8" minimum length · Perfect for critical line voltage needs (examples: older "classic" tube equipment or Japanese 100V equipment). |
|
Technical parameters
| Capacity(VA) | Overall Dimensions(mm) | ||||
| A | B | C | D | E | |
| 100 | 2.50 | 3.50 | 3.20 | 2.00 | 2.44 |
| 250 | 3.75 | 5.44 | 4.56 | 3.00 | 4.31 |
| 500 | 3.75 | 5.44 | 4.56 | 3.00 | 4.31 |
| 750 | 4.38 | 6.10 | 5.30 | 3.50 | 4.50 |
The above parameter is only for your reference, customer-made is subject to customer’s request.
