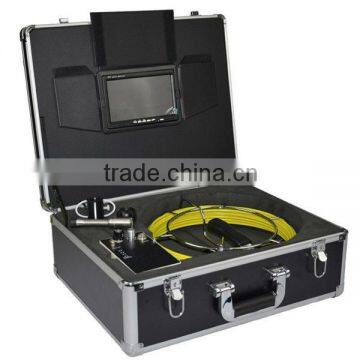

Color Video Pipe Inspection Camera System 710 CCTV drain survey
- T/T Credit Card PayPal
You May Like
-
Push Rod Pipe Inspection Camera 710 plumbing detector drain inspection drain & sewer services
-
Handheld Sewer Survey Video Drain Inspection Camera System 710D-SCJ, 20m, Color, Video Recording, Picture Snap
-
Handheld Monitor Push Line Sewer Camera Pipe Inspection Equipment Kits 100mm - 400mm Dia 712DK-SCJ
-
Waterproof Vedio Pipe Inspection Camera 710DK Pipe Inspection System 23mm Cameras
-
DC Power Supplies Uni-t UTP3305 Dual Channels power source 64V 5A
-
TPR-3002-2D Dual DC Power Supply 2A/30V high-precision linear dc power supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | Graigar | |
| Model Number | 710 | Type | Digital Camera | |
| Style | Mini Camera |
Product Description
Specifications
total station survey instrument Color Video Pipe Inspection Camera System 710 CCTV drain survey drain & sewer servicesPackaging & Delivery
| Packaging Details: | Case: L480*W415*H200mm; Material: fire board + aluminum alloy; Empty case weight: 3.4kg; Color: black; Waterproof |
|---|---|
| Delivery Detail: | within 5 days after payment |
Specifications
SD card (max 32G) storage medium
Control Box
Camera | |
Camera Size | Φ23mm*120mm |
Camera Housing Material | Stainless steel |
Camera Lens Material | Sapphire glass |
Sensor Size | 1/4 inch |
Total Pixels | PAL:720*576 NTSC:720*480 |
View Range | 120 °C |
Illumination | 12 PCS white LEDS |
Waterproof Level | IP68 |
Camera Work Current | 100MA |
Camera Power Supply | DC 12V |
Operating Temperature | -10°C to +50°C |
Monitor | |
Monitor Size | 7 inch TFT color monitor |
Pixels | 1440*234 |
Monitor Power Supply | DC 12V |
OSD Language | English |
Up, down left, right adjustable | |
16:9 & 4:3 model |
|
Shock absorber hinges also acts as sun visor | |
Waterproof Connector |
|
Operating Temperature | -10°C to +50°C |
DVR | |
DVR Power Supply | 12V |
DVR Work Current | 200MA |
Storage Medium | SD card (max32G) |
Digital Clock and Digital Calendar | |
Battery Level Display | |
Total Pixels | 720*567(D1) |
Picture Sanp and Movie Record | |
Movie Format | AVI |
Microphone Audio Record | |
Stereo Earphone Output | |
Battery | |
Battery | 12V 4000MAH rechargeable li-ion battery(18650) |
Used Time | >260minutes |
Charger | |
Input | AC100-240V~50/60Hz |
Out Put | DC 12V/1000MA |
DC Plug Diameter | 2.1m |
SKIDS Size | |
SKIDS1: | Φ40mm |
SKIDS2: | Φ80mm |
WaterProof Case | |
Case Size | L480*W415*H200mm |
Case Material | fire board + aluminum alloy |
Empty Case Weight | 3.4KG |
Case Color | Black |
