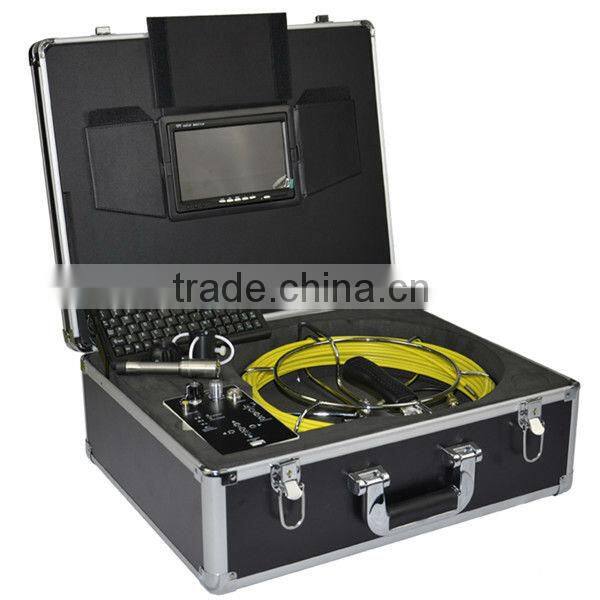

6mm Cable Small Drain Pipeline Survey Camera in Pipe Inspection Camera System with Keyboard and DVR 710DK5

Camera

Camera Size

Φ6mm

Camera Housing Material

Stainless steel

Camera Lens Material

Sapphire glass

Sensor Size

1/12 inch

Total Pixels

PAL:720*576   NTSC:720*480

View Range

60 °C

Illumination

4 PCS white LEDS

Waterproof  Level

IP67

Camera Work Current

100MA

Camera Power Supply

DC 3.3V

Operating Temperature

-10°C to +50°C

Cable Wheel

Cable Size

Φ320mm*110mm(H)

Wire Material

Fiberglass rod

Fiberglass Length

20m(standard) & as your requirement

Fiberglass Diameter

Φ4.8mm

Fiberglass Color

Yellow

Monitor

Monitor Size

7 inch TFT color monitor

Pixels

1440*234

Monitor Power Supply

DC 12V

OSD Language

English

Up, down left, right adjustable

16:9 & 4:3 model

Shock absorber hinges also acts as sun visor

Waterproof Connector

Operating Temperature

-10°C to +50°C

DVR

DVR Power Supply

12V

DVR Work Current

200MA

Storage Medium

SD card (max32G)

Digital Clock and Digital Calendar

Battery Level Display

Total Pixels

720*567(D1)

Picture Sanp and Movie Record

Movie Format

 AVI

Microphone Audio Record

Stereo Earphone Output

Battery

Battery

12V 4000MAH rechargeable li-ion battery(18650)

Used Time

>260minutes

Charger

Input

AC100-240V~50/60Hz

Out Put

DC 12V/1000MA

DC Plug Diameter

2.1m

SKIDS Size

SKIDS1:

 Φ12*30mm

SKIDS2:

 User define

Keyboard (Soft or USB for choice)

Soft USB Keyboard

323*130*11mm

USB Keyboard

220*110*15mm

Keyboard Interface

USB input

Language

English

Text Edit Line

PAL 28 letter 15 line;  NTSC 26 letter 12line

Max Edit Page

4 pages

AL Carry Case

Case Size

L480*W415*H200mm

Case Material

Fire board + aluminum alloy

Empty Case Weight

3.4KG

Case Color

Black
