Specifications
Magnetic Type Rockwell Hardness Tester,rockwell hardness tester,Webster Hardness Tester for Aluminum Alloy,PHB-3000PHB-3000 Portable Brinell Hardness Tester, digital Brinell Hardness Tester,hardness tester
Introduction

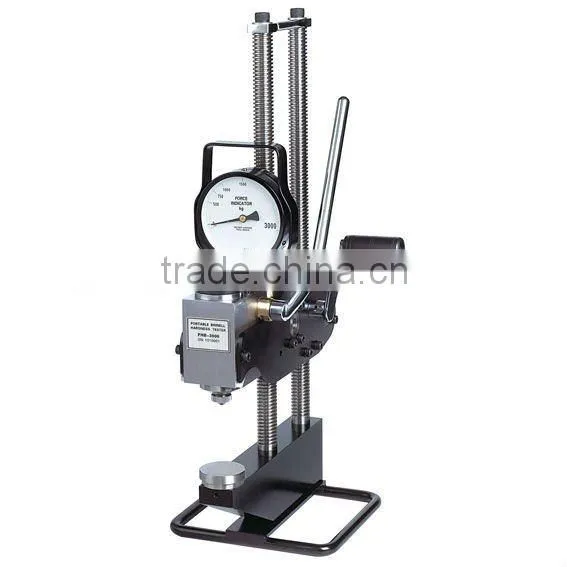

PHB-3000 portable instrument has the same structure as
King Brinell hardness tester. It has a hydraulic system and
the test force is applied by means of a handle.
PHB-3000 portable Brinell hardness tester has the same
structure as King Brinell hardness tester. The test condition
is applying 3000kg test force on a 10mm carbide indenter.
It can result in permanent indentations for reinspection.
The test condition meets the requirements of ISO 6506 and
ASTM E110.
Main Technical Parameters
Test Force: 3000kg (500kg, 750kg, 1000kg, and
1500kg optional)
Indenter: 10mm carbide ball indenter ( 5mm
optional)
Testing Range: 100-650HBW (expendable to 28-
650HBW)
Max. Specimen Height: 320mm
Throat Depth: 100mm
Accuracy: complies with ISO 6506
Repeatability: complies with ISO 6506
Net Weight: 13.8kg
Application
On-site Testing
It is a portable instrument suitable to use in the plant. It is easy
to operate and convenient to carry. So it can be used to easy
test large workpieces in any direction on site.
Permanent Indentation
With 3000kg test force and 10mm ball indenter, the indentation
can accurately reflect the true harness of cast iron, cast steel,
forge piece, and other materials with coarse grain. The
permanent indentation can be reinspected at any time after
testing.
Real Result
PHB-3000 has the same principle as the bench type Brinell
hardness tester. So the result is totally different from the lossy
conversion value of other portable hardness testers (eg. Rebound
type hardness tester).
Wide Testing Range
PHB-3000 has various test forces and two different ball indenters
in order to test different metals.
High Cost Performance
The parts machining workmanship and assembling accuracy of
PHB-3000 is much better than King Brinell hardness tester. It has
an improved jacking system free from gear jamming, while the
price is lower than King Brinell Hardness Tester. So PHB-3000
Brinell hardness tester has a higher cost performance.
Standard Package
Tester
Handle
Standard Brinell hardness block
20X reading microscope (with LED light)
V anvil
Flat anvil
Dome anvil
10mm spare carbide ball indenter
