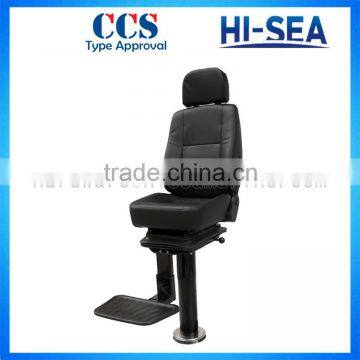

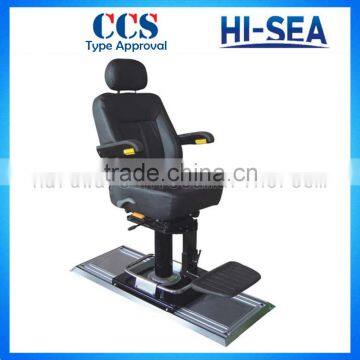

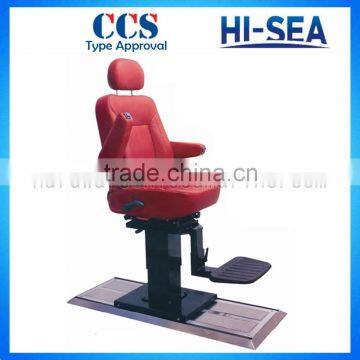

Marine Pilot Chair Helmsman Chair Captain Chair
A. Aluminium alloy or steel and stainless steel column
B. Pilot chair lifting and tilting, move back and forth
C. Leather or cloth surface
D. Color can be customized
Material:
1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
2.Helmsman chair lifting column with aluminum alloy or steel, stainless steel synthesis;
3.The helmsman chair lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;
5.Helmsman chair pedal steel plate inner core and environmentally friendly rubber synthetic;
6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;
Function data:
1.Upper part of the pilot seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination angle range of ±12°;
2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3.The captain chair of pneumatic lifting regulating range 0-150mm;
4.The chair can rotate 360°and locked, 4-point positioning control;
5.Seat rail slide in 0-5000mm mobile,500mm rail width and depth 28mm
6. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;
Function:
1.Ergonomic design;
2.Captain chair can move in high strength double-slide rail;
3.Adjustable backrest and headrest;
4.Seat height may be angle adjusted;
5.Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat armrest;
7.Captain chair can rotated 360 degrees, multi-point positioning;
8.Foot pedal height adjustable / folding;
9.Column can be vertically lifting;
pilot seat model 1
pilot seat model 2
pilot seat model 3
pilot seat model 4
pilot seat model 5
pilot seat model 6
pilot seat model 7
Export packages, wooden boxes or cartons.
Usually send by sea. We can include shipping cost to your nearest port.
One year warranty. We provide replacement parts for free if the chair is damaged during transportation.
Fast response. We will reply your inquiries or questions within one day.
Timely delivery. For some styles we have product in stock, can deliver immediately.
