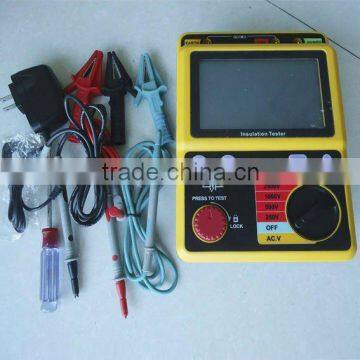

High Voltage Insulation Tester AR3123
Negotiable
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- china
- T/T Credit Card PayPal
You May Like
-
High Voltage Insulation Tester smart sensor AR3125, good quality, lower price
-
High Voltage Insulation Tester AR3126, good quality, lower price
-
High Voltage Insulation Tester AR3127
-
Manual force gauge
-
hardness tester,durometers,LX-A Shore A Durometer with CE certificate, cheap price, good quality, lower cost
-
LX-A Shore A Dual Durometer(Dual Needle).digital durometer,shore hardness tester,sclerometer
Product Details
| Place of Origin | Guangdong, China | Brand Name | Graigar | |
| Model Number | AR3123 | Accuracy Class | +/-5%rdg+/-5%dgt |
Product Description
Specifications
High Voltage Insulation Tester, insulation testers, insulation meter, measuring instruments AR3123| SPECIFICATIONS | High Voltage Insulation Tester AR3123 |
| Rated Voltage | 250V/500V/1000V/2500V |
| Testing Range | 250V:0.0~499.9MΩ 500V:0.0~999MΩ 1000V:0.0~1.99GΩ 2500V:0.0~99.9GΩ |
| Accuracy | ±5%rdg±5dgt |
| DC/AC Voltage Test | 30~600V |
| Resolution | 1.0V |
| Overload Protect | AC 1200V/10sec |
| Withstand Voltage | AC 8320V/5 sec |
| Insulated Impedance | 1000MΩ |
| Max. Short Circuit Current | 1.4mA |
| Polarization Index | √ |
| External DC Adapter | √ |
| DAR | --- |
| PACKING INFORMATION | |
| Power | C*8 battery |
| Product Net Weight | 1027g |
| Product Size | 153*213*95mm |
| Packing | knapsack |
| Standard Quantity Per Carton | 3PCS |
| Standard Carton Size | 44.5*33*28.5cm |
| Standard Carton Gross Weight | 6KG |
