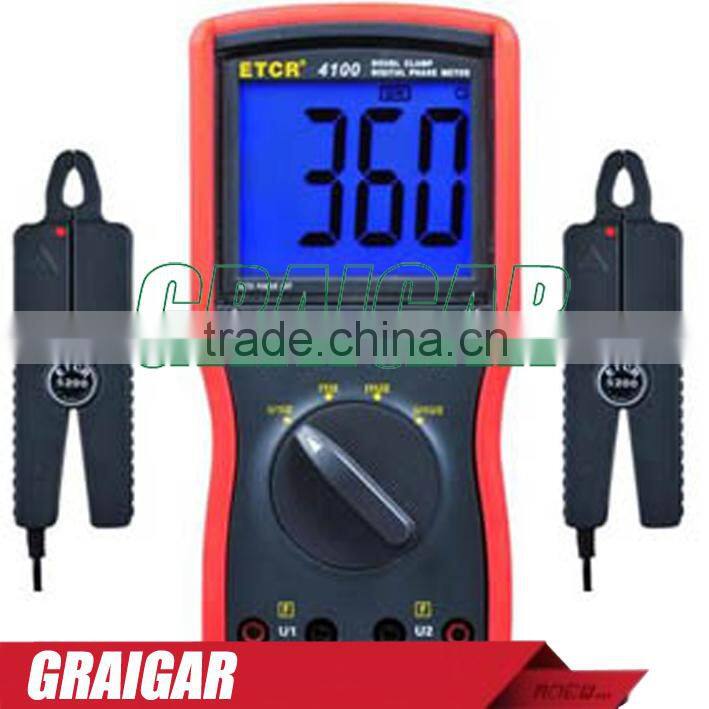

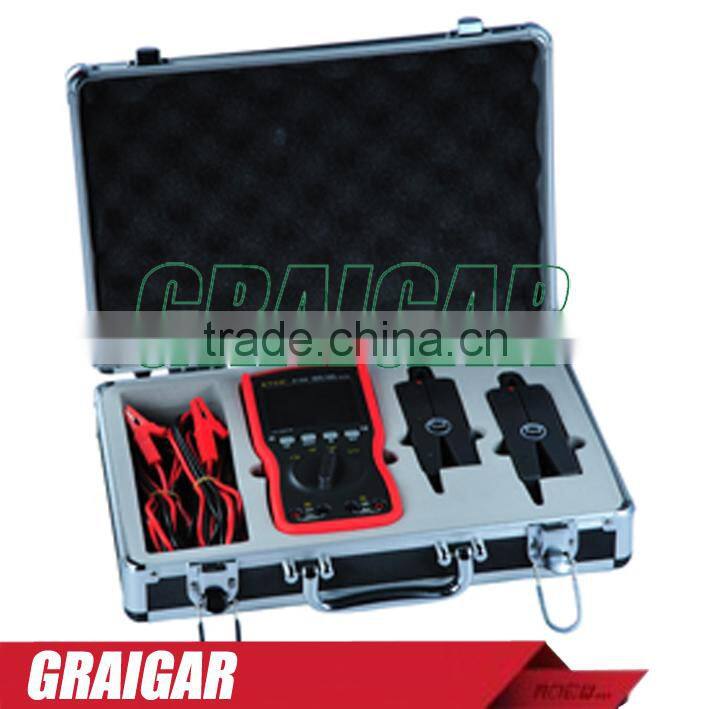

Best Quality High Accuracy and Stability Phase Meter ETCR4100 Double Clamp Digital Phase Meter
PRODUCT DESCRIPTION
Product Description
The etcr4100 double clamp digital phase meter is a well-developed meter specifically designed for field testing, featuring high accuracy, high stability, low power consumption, easiness to use and so on. It can directly measure phases between two voltages, two currents and phase between the voltage and current; In addition, it can also be used to distinguish three-phase sequence, transformer wiring group, inductive and capacitive circuits, test Second circuit and bus differential protection systems, read the phase relationship between cts of the differential protection, etc.
The etcr4100 double clamp digital phase meter has a large LCD screen displaying words as high as 40mm against a blue backlight, and looks exquisite and comfortable.
The etcr4100 double clamp digital phase meter applies to electricpower, petroleum chemical industry, metallurgy, railway, and meteorology, industrial and mining enterprises, scientific research institutions, measurement sector and so on.
Influence Quantity | Base Condition | Working Conditions | Remark |
Ambient Temp | 23ºC+1ºC | -10ºC - 40ºC | - |
Ambient Humidity | 40% - 60% | < 80% | - |
Signal Waveform | sine wave | sine wave | β=0.05 |
Signal Frequency | 50HZ+1HZ | 45HZ - 65HZ | - |
Meter Working Volt | 9V+0.1V | 9V+1V | - |
External Electric, Magnetic Field | To be avoided | ||
Measured Wire Position | Measured wire at approximately the geometric center of the clamp | ||
General Specification
Function | Phase,direct test of phase sequence; transformer groups, inductive, capacitive circuit discrimination |
Power | DC9V alkaline batteries ( 1.5V AA x 6 ) |
Consumption | About 35mA at most with enabled backlight, battery working continuously for about 40 hours |
About 5mA with disabled backlight, battery working continuously for about 300 hours | |
Display Mode | LCD display, blue backlight, suitable for dark places |
LCD Size | 70mm x 62mm |
LCD Display Field | 64mm x 54mm |
Meter Size | Length, Width, Height : 196mm x 92mm x 54mm |
Clamp Size | φ 7.5mm x 13mm |
Sampling Rate | About 3 times/second |
Measurement Range | 0-360° |
Intrinsic Error | +3° |
Resolution | +1° |
Measured Signal Amplitude in Phase Test | U1-U2 phase test : 30V - 500V |
I1-I2 phase test : 10mA - 10.00A | |
U1-I2 or I1-U2 phase test : 10V - 500V , 10mA - 10.00A | |
Data Hold | Press " HOLD " key to keep data, "DH" symbol appears |
Automatic Shutdown | Automatic shutdown about 15 minutes later after launching to reduce battery consumption |
Voltage Detection | Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 7.8V - 8V. |
Weight | Main Unit about 550g (with battery) , clamp about 170g x 2 , test line about 250g |
Test Line Length | 1.5m |
Current Clamp Length | 2m |
Working Temperature and Humidity | -10ºC - 40ºC; below 80%Rh |
Storage Temperature and Humidity | -10ºC - 60ºC; below 70%Rh |
Input Impedance | Input impedance for voltage range : 2MΩ |
Input impedance when testing U1U2 phase : 40KΩ | |
Withstand Voltage | Withstand 1000V/50Hz sine wave AC voltage for 1 minute between the meter lines and shell; Withstand 500V/50Hz AC voltage sine wave for 1 minute between the two voltage inputs |
Insulation | >10MΩ between meter lines and shell or between the two voltage inputs |
Structure | Double insulation |
