Waterproof Plug IEC Marine Watertight Plug

Waterproof Plug IEC Marine Watertight Plug thumbnail-1
Waterproof Plug IEC Marine Watertight Plug thumbnail-2
Waterproof Plug IEC Marine Watertight Plug thumbnail-3
Waterproof Plug IEC Marine Watertight Plug thumbnail-4
Waterproof Plug IEC Marine Watertight Plug thumbnail-5
Waterproof Plug IEC Marine Watertight Plug thumbnail-6
Waterproof Plug IEC Marine Watertight Plug photo-1

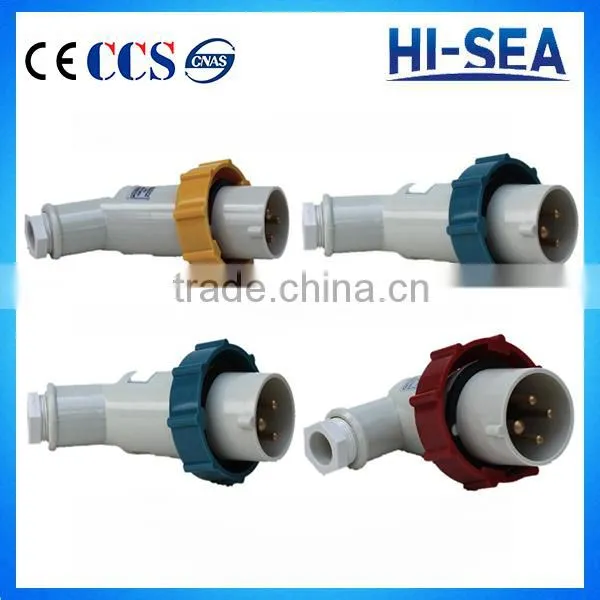

Waterproof Plug IEC Marine Watertight Plug photo-2

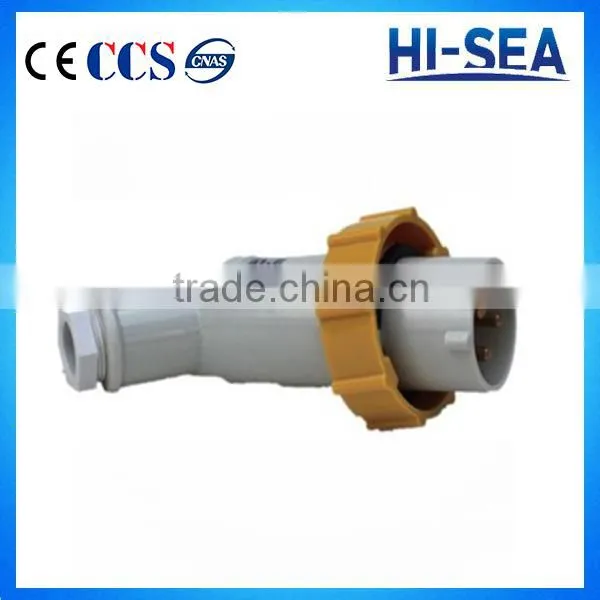

Waterproof Plug IEC Marine Watertight Plug photo-3

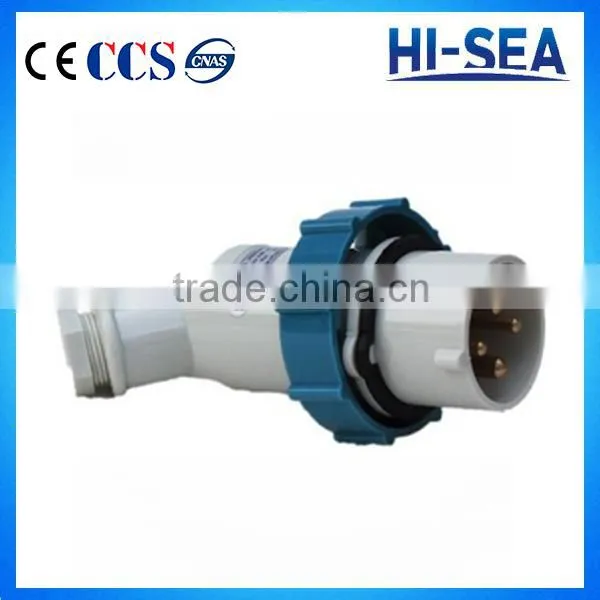

Waterproof Plug IEC Marine Watertight Plug photo-4

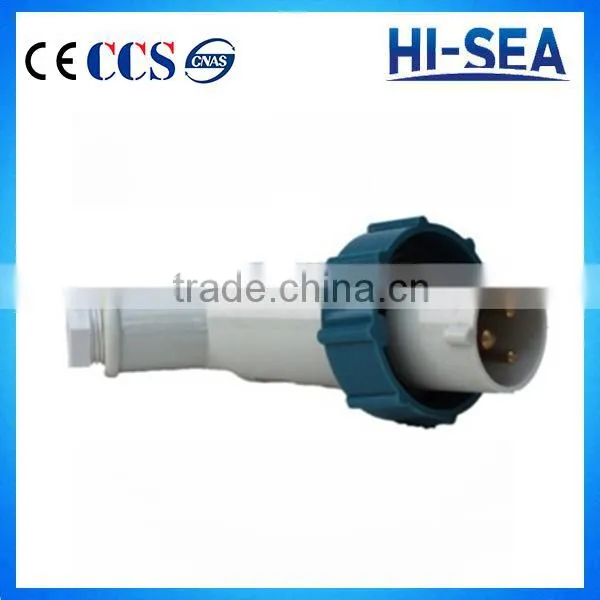

Waterproof Plug IEC Marine Watertight Plug photo-5

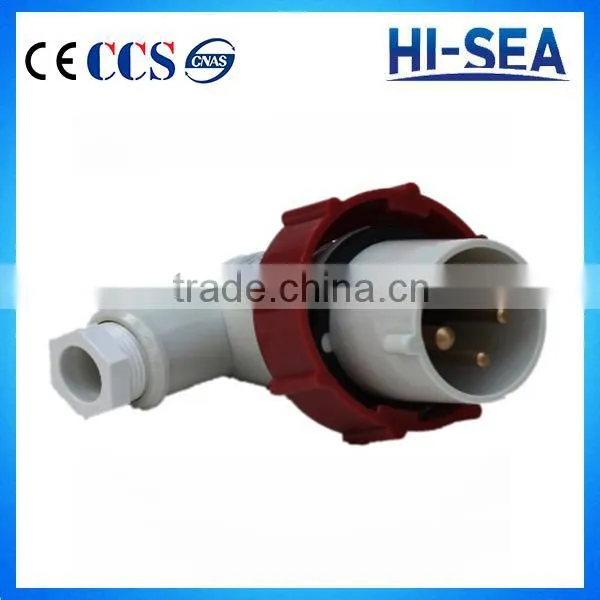

Waterproof Plug IEC Marine Watertight Plug photo-6
US$ 8 - 15 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Hi-sea
Model Number:
Clients' Requirements
Contact Supplier Request Quote Chat Now
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao and other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Hi-sea
Model Number Clients' Requirements
Part Other, Marine Electric Connectors
Product Description

Waterproof Plug Marine IEC Marine Watertight Plug

marine watertight plug      IEC marine watertight plug       marine plug
IEC Watertight Plug is designed to meet the IEC standards and color-coding system.The configurations for plug are single-rated which assures proper mating of devices with the same voltage and amperage.So it is impossible to connect a plug of different voltage and or amperage ratings to avoid causing damage to the equipment or even personal injury. It includes three kinds of color and four sorts of rating voltage. The current is 16A/20A. And most importantly,it can be used for stopping water through it.

Hi-sea can provide CCS.CE.etc certification as required.For any more information,please contact us directly.

Technical Parameter :
Protection class:IP56
Adopted standard:DIN89270
Rating voltage:100-130V 200-250V 380-415V 440-460V

Specifications:
Type
International code
Voltage
Current
P12-2B
792751
100-130V
16A
P12-2B
792752
200-250V
16A
P12-2B
792753
200-250V
16A
P12-3B
792754
380-440V
16A
R12-2B1
792755
100-130V
16A20A
R12-2B1
 792756
200-250V
16A20A
R12-3B1
 792757
200-250V
16A20A
R12-3B1
792758
380-415V
16A

The specification above is for reference.For more information,welcome to contact us.

Drawing of 792751 IEC Marine Watertight Plug

Drawing of 792752 IEC Marine Watertight Plug

Drawing of 792753 IEC Marine Watertight Plug

Drawing of 792754 IEC Marine Watertight Plug

Drawing of 792755 IEC Marine Watertight Plug

Drawing of 792756 IEC Marine Watertight Plug

Drawing of 792757 IEC Marine Watertight Plug

Drawing of 792758 IEC Marine Watertight Plug

Detail Images

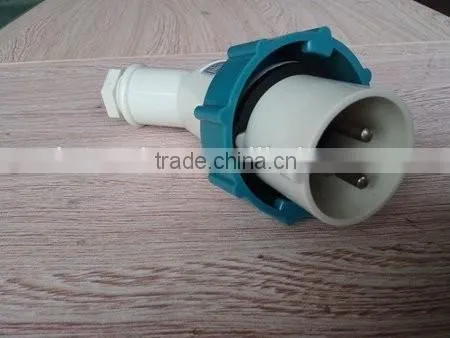

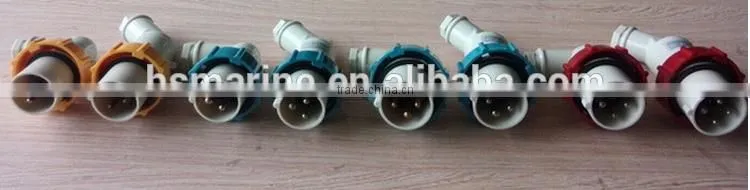

IEC Marine Watertight Plug(1)

IEC Marine Watertight Plug(2)

IEC Marine Watertight Plug(3)

Related Products

IEC Marine Watertight Sockets are as follows:

IEC Marine Watertight Socket

IEC Marine Watertight Socket

Package & Delivery

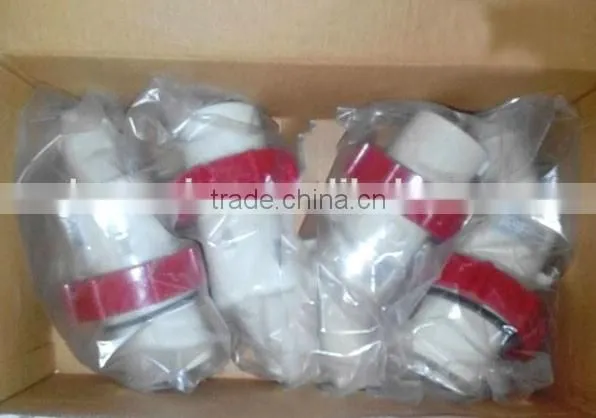

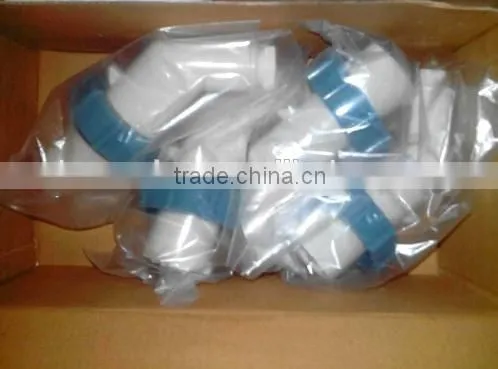

Package:Carton or as required

Company Information

Hi-sea company is the earilest professional manufacturer and exporter of marine equipment and offshore equipment since 1996.We have established long-term cooperation relationship with many shipyards,shipowners,offshore engineering companies and other companies already.Our products have been exported to many countries in the world for many years,such as Germany,France,India,America,Italy,etc.
Our products have their own suporting factories.The exported equipment has been tested strictly.We have ISO certificate.We can also provide GL,ABS,BV,CCS,DNV,RINA,LR,KR,NK,etc certificates.
Products:Marine Equipment and Parts,Offshore Equipment,Oil and Gas Equipment,Special Cable ,Building Material and Equipment,Industrial Equipment,Dredging Equipment,Chemical Products,Hydraulic Power Equipment,etc.
Hi-sea has a professional and high efficient international sales team.Our company spirit is Quality,Sincerity,
Professional,Efficient. We insist on doing everything seriously, and continuously improve our team services capabilities to satisfy clients’ requirement. We hope to be your partner forever! Welcome you to visit Chongqing,China!
Our Service

1.High quality products:all the products have been strictly inspected and professionally produced.
2.Satisfactory after-service will be available.Welcome to visit us.
3.Various designs can be offered.Customization is available according to clients' special requirements.
4.Many certificates of Classification Societies can be offered,such as ABS, BV, DNV, GL, LR, CCS,NK, KR, RINA,etc.
