Plate Rolling Machine:
W11NC Series Hydraulic Plate Rolling Machine
W11NC series marine plate rolling machine, it's used to roll the radius for the boat and press the channel shape. It can be designed to different type per customer's requirement. Set the inflexibility beam at the upside of the upper roller. It has set several groups of the support roller between upper rollers and beam, and at the bottom of the lower roller to improve the stiffness of upper roller and lower roller, three rollers are all driving rollers.
There are such types for the marine plate rolling machine as follows:
a) Two lower roller separately moveable: Upper roller ascending & descending at vertical direction, lower roller separately mone at horizontal direction.
b) Two lower roller whole moveable: Upper roller ascending at vertical direction, lower whole move at horizontal direction.
c) Symmetrical type: Upper roller ascending & descending at vertical direction, the lowers remain relatively fixed.
Technical parameters:
Model |
Max. plate thickness(mm) |
Plate width(mm) |
Main motor power(kw) |
| W11NC-20x8000 | 20 | 8000 | 45 |
W11NC-25x12000 |
25 |
12000 |
55 |
W11NC-30x12000 |
30 |
12000 |
75 |
W11NC-30x16000 |
30 |
16000 |
110 |
W11NC-40x18000 |
40 |
18000 |
2x75 |
W11NC-40x21000 |
40 |
21000 |
2x75 |

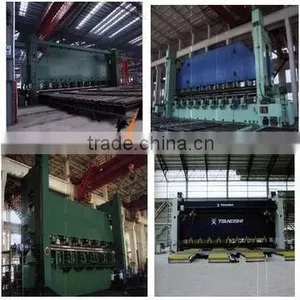

The Working Shop:
The Test & Inspection:
