Flame Retardant Isolation Coal Mining Dry Type Transformer

Flame Retardant Isolation Coal Mining Dry Type Transformer thumbnail-1
Flame Retardant Isolation Coal Mining Dry Type Transformer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
HS
Model Number:
100-4000
Contact Supplier Request Quote Chat Now
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name HS
Model Number 100-4000
Usage Power
Phase Three
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

Mining Dry Type Transformer:
1. 100% flame proof
2. No pollute
3. Suitable for coal mining environment
4. Save cost

Coal Mining Dry Type Transformer:

Flame Retardant Isolation Coal Mining Dry Type Transformer

1. Brief Introduction

The type transformer can work, when the air contain CO, CO2, CH4 or other type gas. The machine has own protection device. When there are the voltage overload, electric leakage, under voltage, loss of phase, over temperature etc, it will adjust by itself.  Because of its advantages, it widely use in mining.

2. Component

It is composed of three parts: high voltage distribution switch, minining explosion mobile transformation station, intelligent low-voltage protection box.

3. Comparison

Compared with oil immersed transformer,  dry type transformer unique features are 100% flame proof, no pollute (no oil leakage risk), easy to maintain (less external devices). It is suitable for mining environment.

4. Standard

GB8286-2005 GB3836-2000 GB/T10228-1997 JB/T56152-94
5. Specification

Remark: Short circuit impedance about 4%.

Rated capacity(KVA)

Rated voltage and tapping voltage

Loss(KW)

No-load current(%)


High-Voltage(KV)

Tapping range(%)

Low-voltage(KV)

no-load

Load



100

6

±5%

1.2/0.69

520

920

2.5

200

6



820

1550

2

315

6



1100

2150

1.8

400

6



1300

2600

1.8

500

6



1500

3100

1.5

630

6



1800

3680

1.5

800

6



2050

4500

1.0

1000

6



2350

6400

1.0

1250

6



2750

6500

1.0

1600

6



3.45/1.2/0.69

3350

8000

0.8

2000

6



3800

9500

0.6

2500

6



4500

10600

0.6

3150

6



5300

12500

0.6

4000

6



6100

14000

0.6

100

10



1.2/0.69

560

1050

2.5



Flame Retardant Isolation Coal Mining Dry Type Transformer

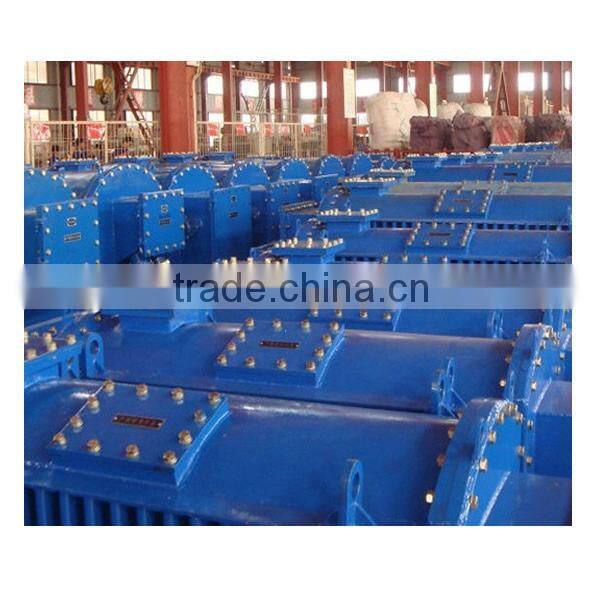

Coal Mine Dry Type Explosion Retardant Transformer Picture

Flame Retardant Isolation Coal Mining Dry Type Transformer

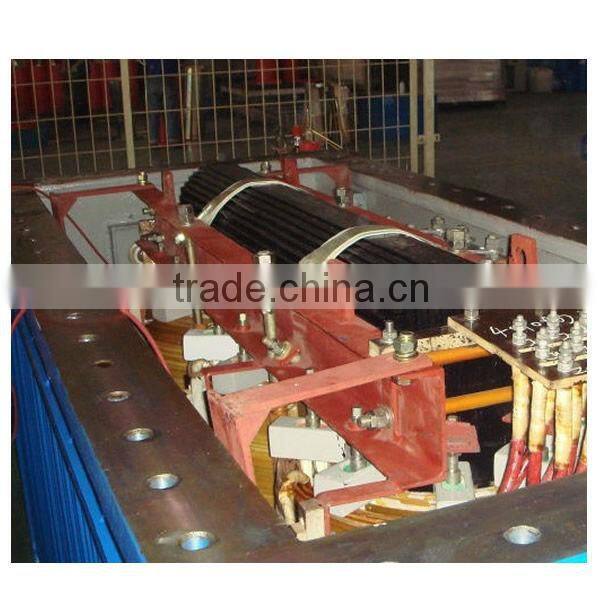

Mining Mobile Dry Transformer Warehouse Picture

Flame Retardant Isolation Coal Mining Dry Type Transformer

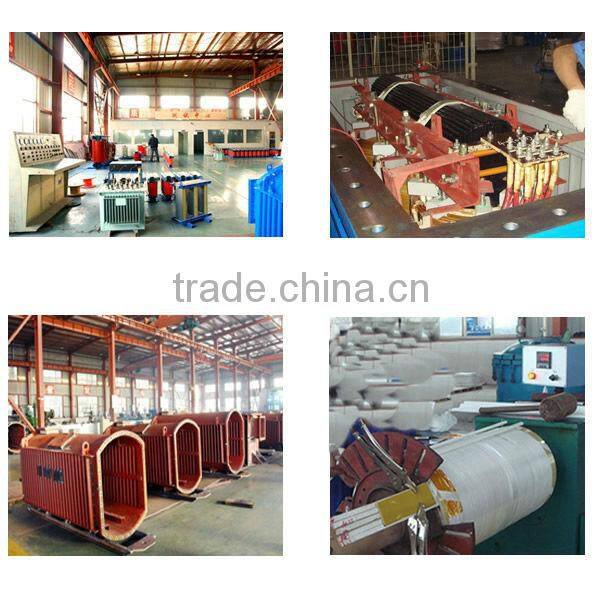

Explosion Retardant Transformer Production
