15 Degree 10 Bar Dredge Ball Joint

15 Degree 10 Bar Dredge Ball Joint thumbnail-1
15 Degree 10 Bar Dredge Ball Joint thumbnail-2
15 Degree 10 Bar Dredge Ball Joint thumbnail-3
15 Degree 10 Bar Dredge Ball Joint thumbnail-4
15 Degree 10 Bar Dredge Ball Joint photo-1
15 Degree 10 Bar Dredge Ball Joint photo-2
15 Degree 10 Bar Dredge Ball Joint photo-3
15 Degree 10 Bar Dredge Ball Joint photo-4
US$ 1,000 - 68,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Hi-sea
Model Number:
Client's requirements
Contact Supplier Request Quote Chat Now
Chongqing Hi-Sea Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao and other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Hi-sea
Model Number Client's requirements
Part Other, Dredging Ball Joint
Product Description

15 Degree 10 Bar Dredge Ball Joint

15 degree dredge ball joint          degree ball joint         10 bar dredge ball joint
15 Degree Dredge Ball Joint provides a flexible load-bearing connection between sections of a pipeline. The principle field of application is in floating lines, whose sections are supported by pontoons or other buoyancy. The15 degree dredge ball joint ensures a flexible connection of the different pipe sections. It is capable of transmitting high loads from one section to another.There are various pressure levels,such as 10,20 or 30bar.

In addition to the use in floating pipelines, 15 degree dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The 15 degree dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.

For more information,please feel free to contact us.

Features：
1.Easy assembly and dis-assembly.
2.Liner is made from war-resistant materials.And it is replaceable.
3.It is hard to leak with flexible seal.
4.Quick fix,low cost.
5.Operate at low friction.
6.Low,medium and high pressure,high efficiency.

Note:All the size can be offered according to customers' special requirements.

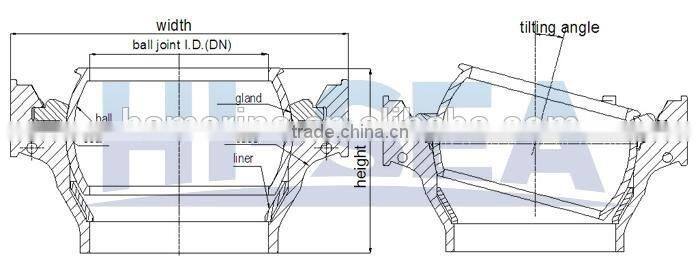

Drawing of Dredge Ball Joints

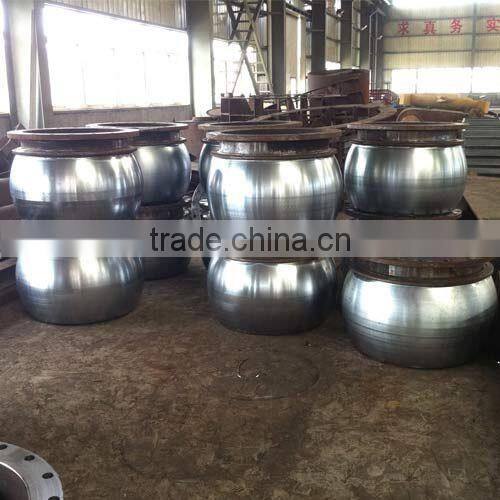

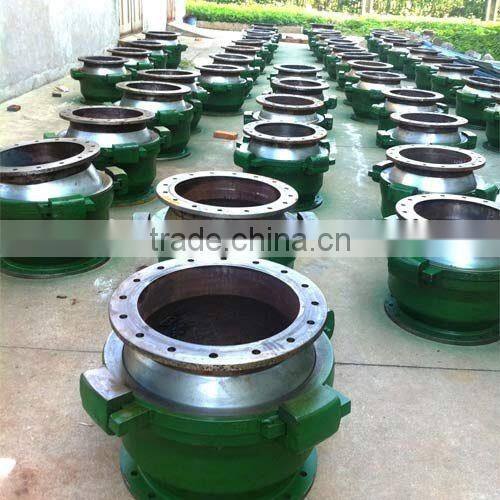

Detailed Image

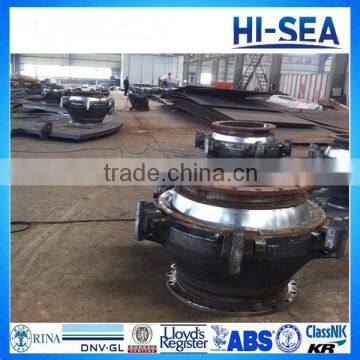

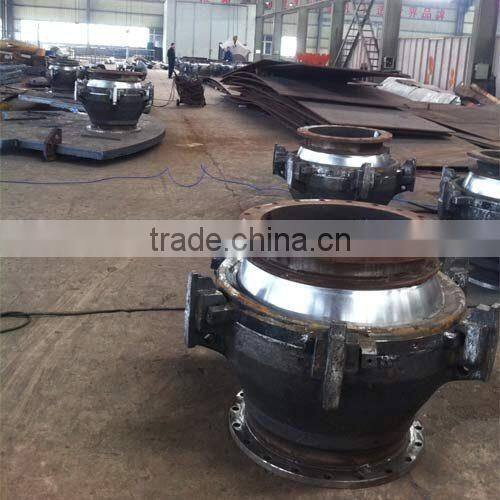

15 Degree Dredge Ball Joint(1)

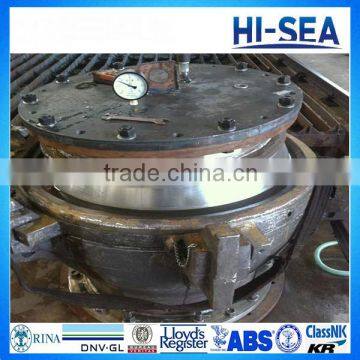

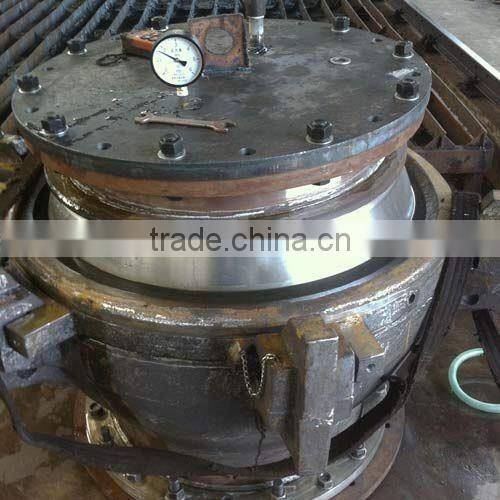

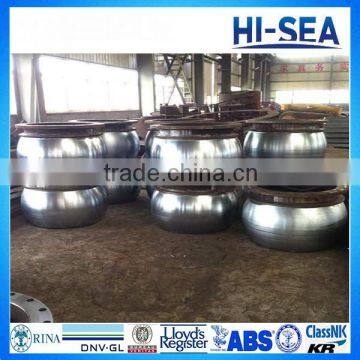

15 Degree Dredge Ball Joint(2)

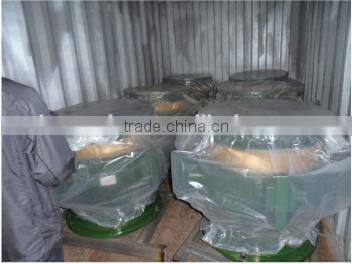

Packaging&Delivery

Packaging details:can be negotiated according to clients' requirements.

Certifications

RINA                                             LR                                              BV                                            DNV

  ABS                                           NK                                              CCS                                           KR

Company Information

Hi-sea company is the earilest professional manufacturer and exporter of marine equipment and offshore equipment since 1996.We have established long-term cooperation relationship with many shipyards,shipowners,offshore engineering companies and other companies already.Our products have been exported to many countries in the world for many years,such as Germany,France,India,America,Italy,etc.
Our products have their own suporting factories.The exported equipment has been tested strictly.We have ISO certificate.We can also provide GL,ABS,BV,CCS,DNV,RINA,LR,KR,NK,etc certificates.
Products:Marine Equipment and Parts,Offshore Equipment,Oil and Gas Equipment,Special Cable ,Building Material and Equipment,Industrial Equipment,Dredging Equipment,Chemical Products,Hydraulic Power Equipment,etc.
Hi-sea has a professional and high efficient international sales team.Our company spirit is Quality,Sincerity,
Professional,Efficient. We insist on doing everything seriously, and continuously improve our team services capabilities to satisfy clients’ requirement. We hope to be your partner forever! Welcome you to visit Chongqing,China!
Our Service

1.High quality products:all the products have been strictly inspected and professionally produced.
2.Satisfactory after-service will be available.Welcome to visit us.
3.Various designs can be offered.Customization is available according to clients' special requirements.
4.Many certificates of Classification Societies can be offered,such as ABS, BV, DNV, GL, LR, CCS,NK, KR, RINA,etc.
