Home > Products > Dredging Equipment > DN500 Dredge Ball Joint
DN500 Dredge Ball Joint
- Shanghai Qingdao and other ports
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | Client's requirements | Part | Other, Dredging Ball Joint |
Product Description
DN500 Dredge Ball Joint
In addition to the use in floating pipelines, DN500 dredge ball joint can also be used in swan-neck bends in suction and discharge pipelines. The DN500 dredge ball joint can also be applied as a replacement for stern turning glands in cases where, besides pure torsion freedom along the longitudinal axis, an amount of tilting is also required.
For more information,please feel free to contact us.
Features：
1.Liner is made from war-resistant materials.And it is replaceable.
2.Easy assembly and dis-assembly.
3.It is hard to leak with flexible seal.
4.Low,medium and high pressure,high efficiency.
5.Quick fix,low cost.
6.Operate at low friction.

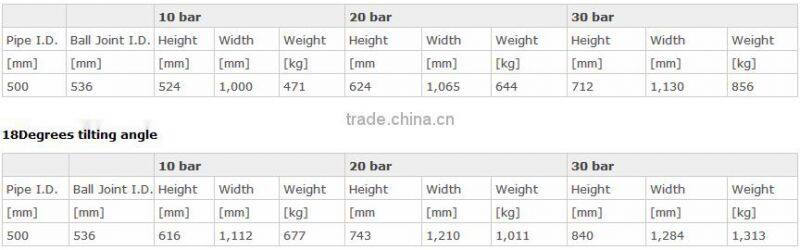

Specifications：
Note:DN500 Dredge Ball Joint can be customized according to your special requirements.
Drawing of Dredge Ball Joints

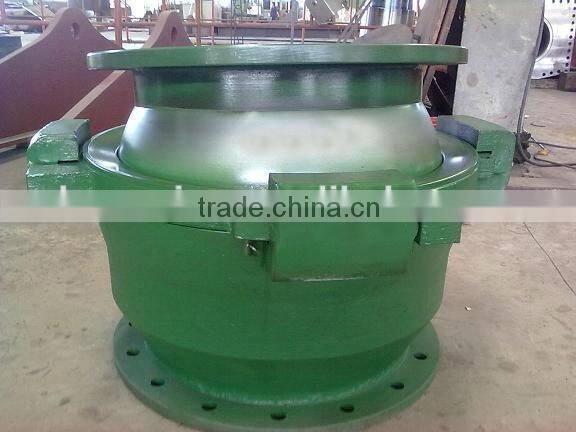

DN500 Dredge Ball Joint(1)

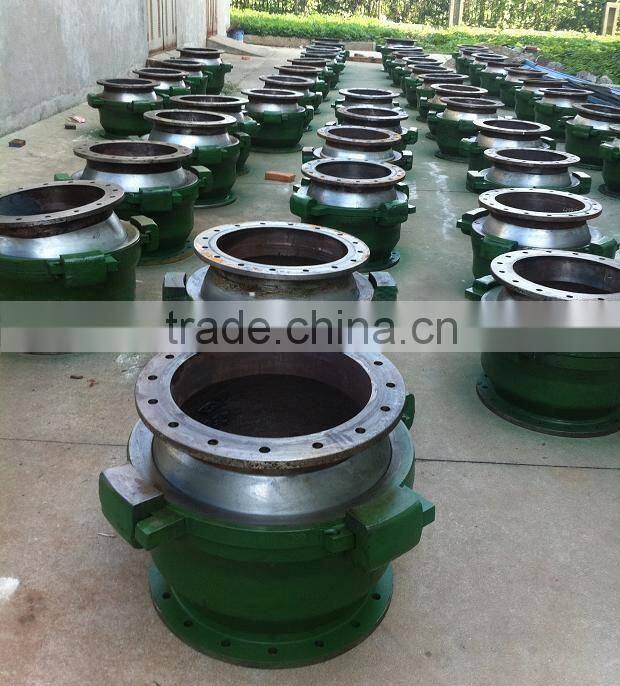

DN500 Dredge Ball Joint(2)
Packaging details:can be negotiated according to clients' requirements.
RINA LR BV DNV
ABS NK CCS KR
1.High quality products:all the products have been strictly inspected and professionally produced.
2.Satisfactory after-service will be available.Welcome to visit us.
3.Various designs can be offered.Customization is available according to clients' special requirements.
4.Many certificates of Classification Societies can be offered,such as ABS, BV, DNV, GL, LR, CCS,NK, KR, RINA,etc.
