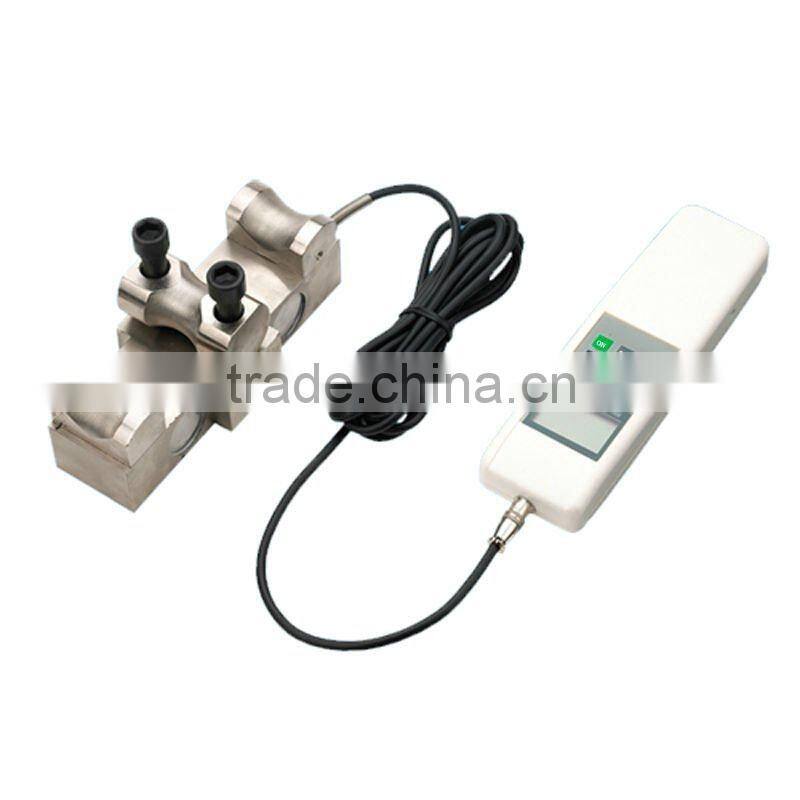

HD-20T Pressuremeter Tension Tester
- 500 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | GRAIGAR | |
Model Number | HD-20T | Power | Electronic | |
Usage | Other |
Product Description
Specifications
1.HD-20T Pressuremeter Tension Tester2.Can connect to PC
3.6 digits screen display
4.N,kg and lb three units
HD-20T Pressuremeter Tension Tester
Digital pressuremeter tension tester is a kind of special equipment to measure wind towers,
signal transmission and power transmission systems rope tension. It has characters of high precision,
easy to operate, easy to carry, etc. also it has many kinds of test modes, convenient to testing.
Users can also input gravity acceleration value to make the test more accurately.
Function Characteristics:
1. High precision, high resolution.
2. Five kinds of test modes, three kinds display modes---To improve test efficiency to the greatest extent.
3. N (Newton), kg (kg), lb (lb) three testing units for selection, mutual conversion.
4. Gravity acceleration setting function---Users can input the precise gravity acceleration value of testing place, make the testing and unit
conversion more accurate.
5. Peak holding function---Maintain peak display until manual reset.
6. Automatic peak function---Maintain peak value can be removed automatically after 2 seconds.
7. Can set upper and lower limit value to make statistical analysis, the value more than
comparative value, the alarm buzzer will alarm.
8. Data stored function, we can store 896 test values.
9. 10 minutes without operating automatic shutdown, green initiative.
10. High quality charging power,charge voltage from 240V to 100V, can adapt to domestic and
foreign most areas,also have short circuit, leakage, overload protection function.
11. 2 sets of installation dimensions, adapt to domestic and foreign most test machines,convenient
to installation and using.
12. Six digit Big screen display.
Item No. | Rope Diameter (mm) |
HD-1T | Φ 6~Φ 14 |
HD-2T | Φ 10~Φ 18 |
HD-5T | Φ 16~Φ 26 |
HD-10T | Φ 24~Φ 36 |
HD-20T | Φ 24~Φ 36 |
