Specifications

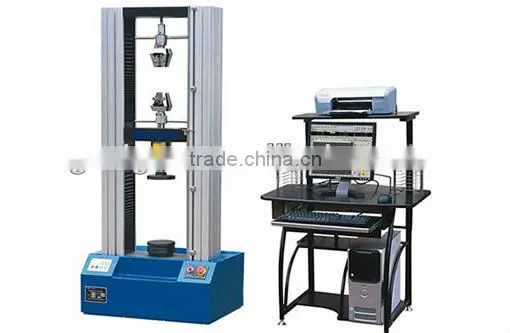

WDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN)) digital universal testing machineWDW Series Computerized Electronic Universal Testing Machine (Desktop Type, 10kN, 20kN)
1. Introduction:
It is used for tensile, compression, bending, shearing, peeling, tearing, etc tests of metal and non-metal materials, like rubber, plastic, wire and cable, composite material, metal bar, panel, spring, etc. It confirms to GB, ISO, JIS, ASTM, etc standards, it also supports customized standard. It is an ideal testing machine for quality control enterprise, scientific research department, university and college, etc.
2. Main Technical Parameters
|
Model Specification |
WDW-10A |
WDW-20A |
WDW-10 |
WDW-20 |
|
|
Testing force measuring range (kN) |
0.1~10 |
0.2~20 |
0.1~10 |
0.2~20 |
|
Testing force accuracy |
±1% |
||||
Resolution of testing force |
1/300000, no subsection or five subsections |
||||
|
Relative error of displacement |
±0.5% |
||||
Resolution of crosshead |
≥0.001mm |
||||
Speed range of crosshead |
0.001mm/min~500mm/mim |
||||
Effective testing space (mm) |
800 |
||||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
|||
Working environment |
Room temperature~30°C, relative humidity <80% |
||||
Main configuration |
Chinese AC Servo motor and governing system |
Imported AC Servo motor and |
|||
Overall dimension (mm) |
740×500×1680 |
||||
Weight (kg) |
450 |
||||
3. Function and Features:
3.1. Main frame
3.1.1 It adopts most advanced and reliable floor type structure, imported Germany MOTEC full digital alternating servo motor and servo adjusting system and imported load cell. Whole digital measurement and control system can realize high precision, wide range measure and three closed loop control.
3.1.2 It adopts precision leading ball screw and reducing mechanism, transmit stable, low noise and zero clearance.
3.2. Measuring system
High precision 24 A/D date acquisition card (built in computer), it realizes full digital adjustment, high accurate enlarge and precision control.
Advanced chip integrated technology, 300000 code high acquisition card, which make the perfection measuring of load cell. It has advantage of high precision integration, stable, convenient to use.
The testing software can auto figure out routine dates, such as tensile strength, yield strength, fracture strength, modulus of elasticity, non-proportional extend strength RP0.2, etc. Auto figure out each point’s force, stress, displacement, deformation, etc.
