1. plastic film slitter rewinder machine
USE:
This machine is used to check, rewind and cut all kinds of roll materials such as BOPP, PET, CPP and PVC.
FEATURE:
1. Imported PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen, Set and display working parameters a ccording to the requirements from different products.
2. Vector frequency-converting is adopted for rewinding, roll diameter is automatically calculated by PLC to achieve automatic tension control.
3. Vector frequency-converting is adopted for winding, active winding, roll diameter is automatically calculated by PLC to achieve automatic tension control.
4. Non-shaft pneumatic system for winding section is used. Width is adjusted by lead screw electrically,convenient load and unloading, high efficiency, automatic correction for winding.
5. Slitting functions: double tensioning shafts are used for rewinding, straight knife is used for slitting,smooth for the surface, and there is air exhausting device for waste.
6. Functions: Automatic stroboscope to observe printing images is equipped in the system. If there is any defects saw by eyes, press the button of defects, the button will automatically go back to defect image.(Automatic labeler is optional)
7. In the system, there are calculations of meter, roll diameter, automatic machine stop when lack ofmaterial etc.
8. The system has perfect mechanic, electric and pneumatic design, also good safety protection.
2. MACHINE DATA
Model |
FT-1300 |
FT-1100 |
FT-800 |
Width of raw material |
1300mm |
1100mm |
800mm |
Max. Diameter of unwinding |
600mm |
600mm |
600mm |
Slitting and rewinding speed |
30-300m/min |
30-300m/min |
30-300m/min |
Speed |
30-300 m/min |
30-300 m/min |
30-300 m/min |
Max. Diameter of rewinding |
600mm |
600mm |
600mm |
Slitting and rewinding width |
20-1300mm |
20-1100mm |
20-800mm |
Error correction accuracy |
-0.5~0.5mm |
-0.5~0.5mm |
-0.5~0.5mm |
Thickness of raw material |
0.012-0.2mm |
0.012-0.2mm |
0.012-0.2mm |
Weight of machine |
3500kg |
3200kg |
3000kg |
Total power |
17kw |
15kw |
12kw |
Overall dimensions(L x W x H) |
2300X3800X1850mm |
2300X3600X1850mm |
2300X3300X1850mm |

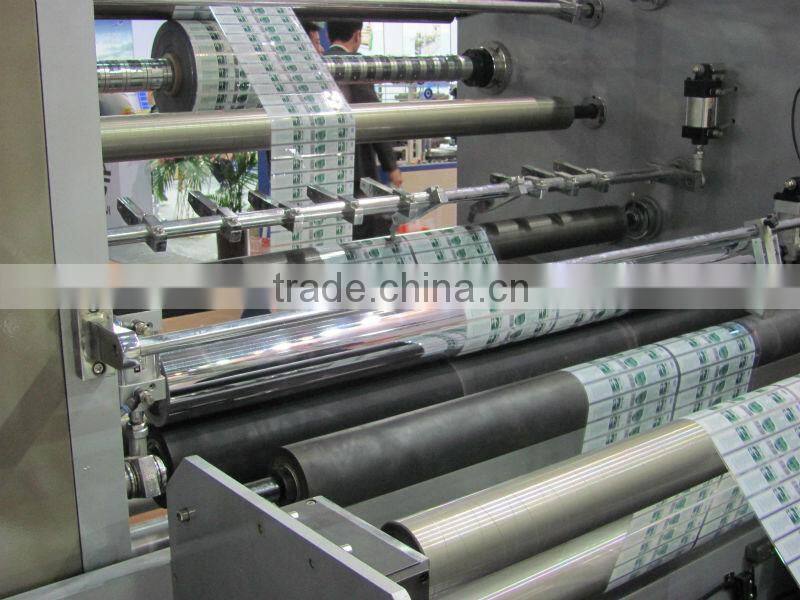

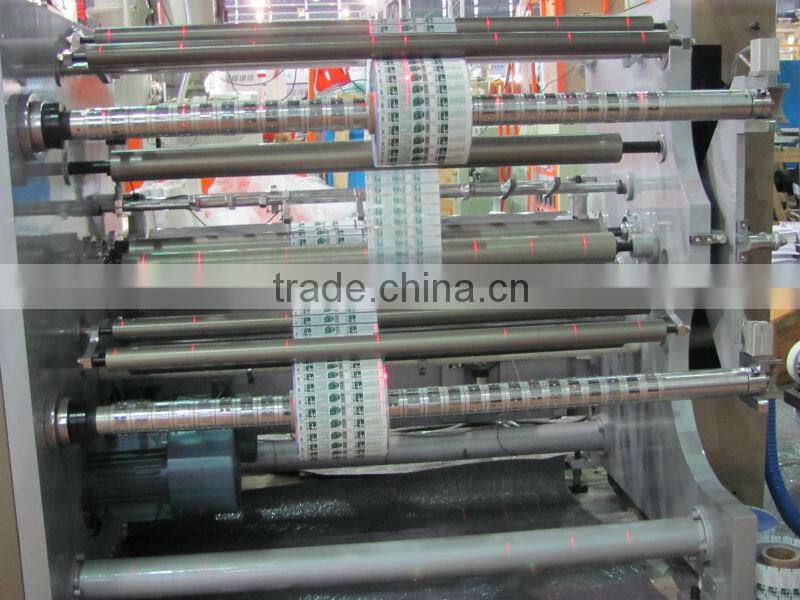

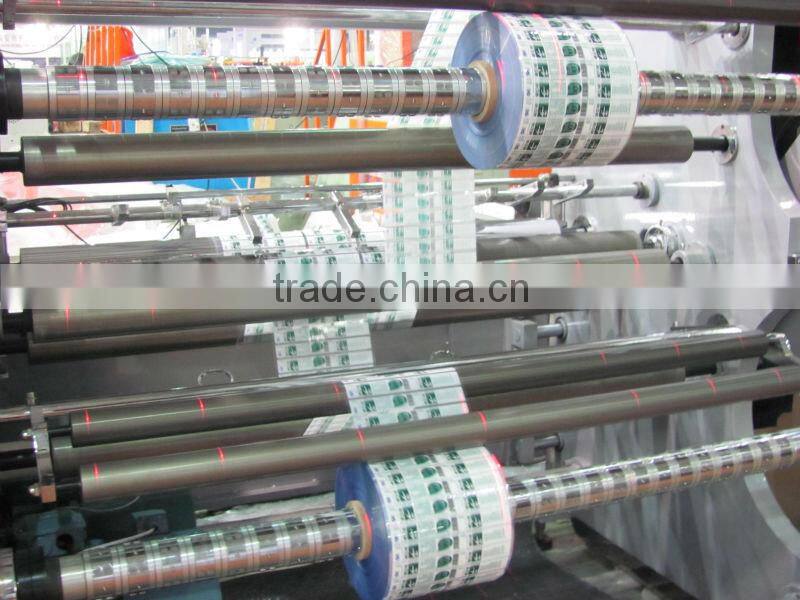

3. PICTURES
