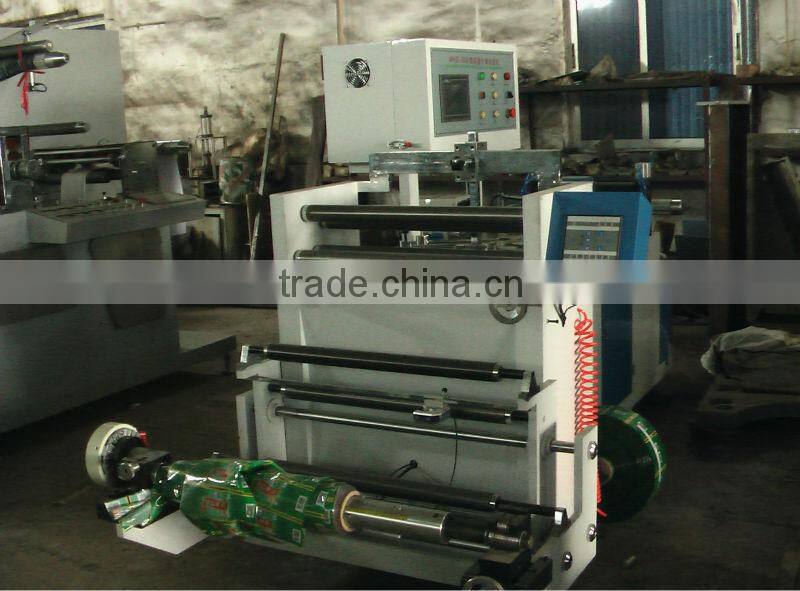

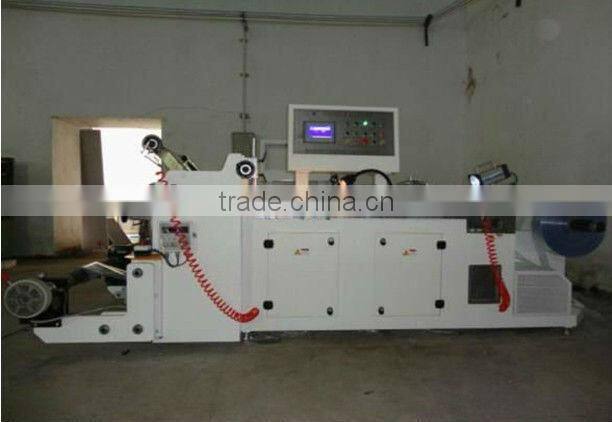

New Design Shrinkable Sleeves Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Commodity
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Commodity
Packaging Type
Film
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
380V / 220V
Power
3.5 kw
Place of Origin
Zhejiang, China
Brand Name
KODA
Model Number
KDCS-350
Weight
1000KG
Dimension(L*W*H)
3700mm * 1500mm * 1750 mm
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
1. PVC shrinkable sleeves making machine
1 ). The machine is specialized in sealing the sheet film to be roll by glue.
2 ). Unwinder tension adopt 2.5kw powder brake system.
3 ). Unwinding edge position controlling is imported from Taiwan(with servo motor driven)
4 ). Rewinder adopts DC motor imported from Taiwan ,China.Tension controll automaticly.
5 ). Frequency light is from China’s famous company.
6 ). Photoelectric sensor is from TaiWan Futai.
7 ). Rewinder adopts air shaft.
2. Technical data
MATERIALS |
PVC, PET |
THICKNESS |
20-80 um |
MAX. UNWINDING WIDTH |
Φ450mm |
MAX. REWINDING WIDTH |
Φ700mm |
EFFECTIVE WIDTH |
350 MM |
SPEED |
5-300 M/MIN |
PRECISION |
±0.3 mm |
MOTOR |
3.5 KW |
WEIGHT |
1000 KG |
SIZE OF MACHINE |
3700mm * 1500mm * 1750 mm |
3. WORKSHOP
4. PRODUCTS
