High Speed Automatic Center Sealing Machine

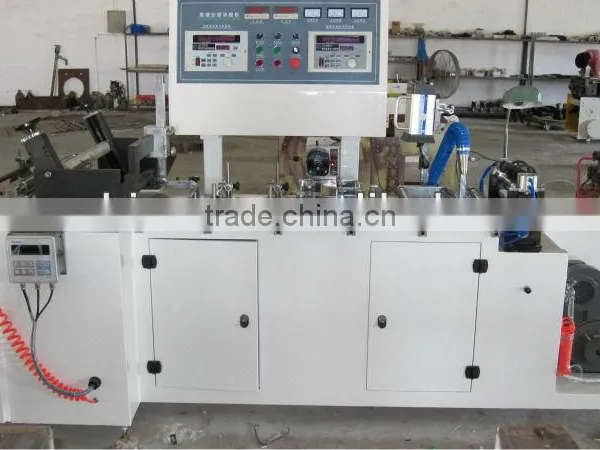

High Speed Automatic Center Sealing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity
Packaging Type:
Other, plastic tube fim
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Commodity
Packaging Type Other, plastic tube fim
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Mechanical
Voltage 380V/ 220V
Power 3KW
Place of Origin Zhejiang, China
Brand Name KODA
Model Number KDCS-300
Weight 1000KGS
Dimension(L*W*H) 3180mm * 1450mm * 1550 mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Center Sealing machine
1.high speed, automatic model
2. professional design
3. stable quality
4. easy operation

1. High Speed Automatic Center Sealing Machine

FEATURE

1. The machine is specialized in sealing the sheet film to be roll by glue.
2. Unwinder tension adopt 2.5kw powder brake system.
3. Unwinding edge position controlling is imported from Taiwan(with servo motor driven)
4. Rewinder adopts DC motor imported from Taiwan ,China.Tension controll automaticly.
5. Frequency light is from China’s famous company.
6. Photoelectric sensor is from TaiWan Futai.
7. Rewinder adopts air shaft.



2. TECHNICAL DATA:



MATERIALS

PVC, PET

THICKNESS

20-80 um

MAX. UNWINDING WIDTH

Φ450mm

MAX. REWINDING WIDTH

Φ700mm

EFFECTIVE WIDTH

300 MM

SPEED

5-300 M/MIN

PRECISION

±0.3 mm

MOTOR

3.0 KW

WEIGHT

1000 KG

SIZE OF MACHINE

3180mm * 1450mm * 1550 mm





3. PRODUCTS

high speed automatic center sealing machine
