Specifications
1.HBM-3000B Gate Type Brinell Hardness Tester2.Measuring range: 32-650HBW
3.Power supply:380V AC, 50 or 60Hz.

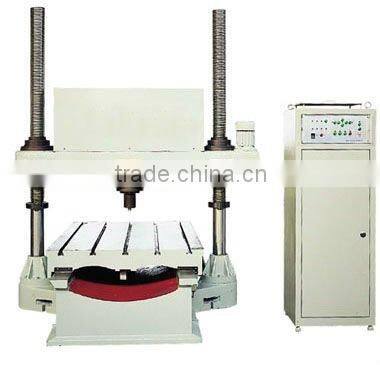

HBM-3000B Gate Type Brinell Hardness Tester
Feature & Use:
Moveable large size worktable
Automatic testing process, no human operating error
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It can be used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc. It is especially suitable for hardness testing of large heavy metal parts.
Specifications
Measuring range: 32-650HBW
Test force: 7355.3, 9807, 29421N (750, 1000, 3000kgf)
Max. height of test piece: 950mm
Distance between two vertical columns: 1350mm
Max. moving distance of worktable: 1000mm
Max. moving distance of main shaft in cross direction: 500mm
Dimensions of worktable: 1500 x 1000mm
Power supply: 380V AC, 50 or 60Hz
Dimensions: main machine --- 2000 x 1800 x 2180mm (79x71x86 inch)
control box --- 510 x 500 x 1450mm (20x19.5x57 inch)
Weight: main machine --- approx. 3000kg / 6600lb
control box --- approx. 40kg / 88lb
Standard accessories:
Flat anvil: 1 pc.
Tungsten carbide ball penetrator: Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.
